LGA1700 3D Models: Brackets, Frames and Cases

«LGA1700 3D Models: Brackets, Frames and Cases»

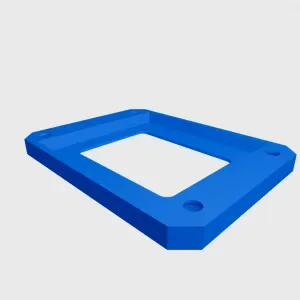

The models in this topic fall into a few practical groups. Mounting brackets and adapters change how a cooler attaches to the board, while contact frames and hold-down parts address how the processor sits in the socket. There are also delid tools, thermal paste helper frames, and clamshell-style cases for storing or transporting CPUs. Each group has different mechanical demands, so a bracket and a storage case should not be judged by the same criteria.

When choosing a model, start with the socket and board layout rather than the shape alone. Check the listed dimensions, the number of parts, and whether the design expects screws, inserts, or a snap connection. For parts that sit near the processor, note the material and settings the author lists, because stiffness and heat resistance matter more than appearance. Photos of real prints can show how the part meets the motherboard and cooler.

To refine a search, try related terms such as CPU retention, cooler mounting, contact frame, delid tool, and processor case. Combining the socket name with a component type usually narrows results faster than a broad phrase. If a result is close but not exact, look at the author's other files or related hardware terms like backplate, spacer, and adapter. The collection is live, so new models and revised versions can appear over time.
