Micrometer Box 3D Models: STL Cases and Inserts

«Micrometer Box 3D Models: STL Cases and Inserts»

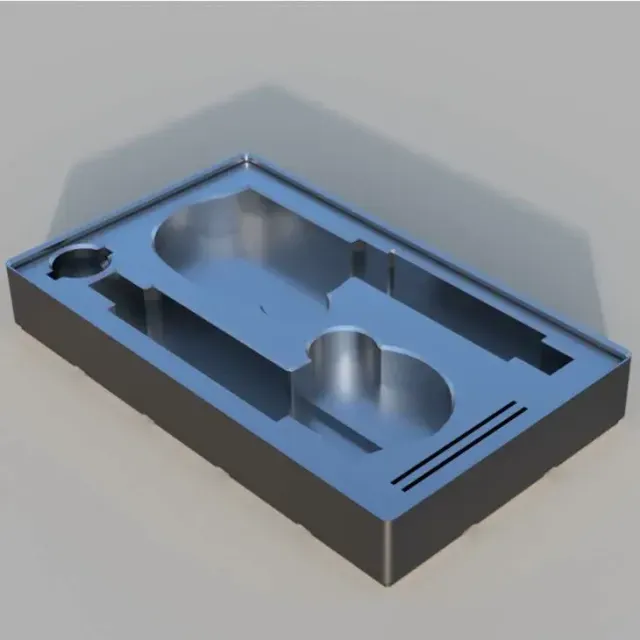

The models fall into a few groups. Fitted boxes are shaped around a specific micrometer body, often with a recess for the frame and a lid that closes over the thimble. Organizer inserts, including grid-based drawer systems, hold several tools side by side. There are also case-style boxes for multimeters and sliding-lid containers sized for calipers, plus adapters that clamp a dial gauge or micrometer to a printer bed for leveling checks.

Before printing, read the model page for the dimensions the author lists: the length and diameter the recess accepts, wall thickness, lid type and whether the file is split into parts. Check whether supports are needed for overhangs inside the cavity, and which material and layer height the author used, since a box that flexes slightly can grip a tool differently than a rigid one. Photos of real prints usually show the clearance around the frame better than a render.

If the exact box you want is not listed, search by the tool type rather than the brand: terms such as micrometer case, vernier caliper holder, dial indicator box or measuring tool organizer return related results. Adding a storage style helps too, for example drawer insert, grid organizer, sliding lid or wall mount. Related topics worth trying are gauge stand, tool tray and printer bed adapter.

For a first attempt, measure the tool with calipers and compare that number with the model description instead of assuming a nominal size. A box with a slightly loose fit can be adjusted with foam or a thin printed shim, while one that is too tight is harder to correct. If the model is parametric or offered in several sizes, choose the version closest to your measurement and scale only after checking the wall thickness.
