Relay 3D models: enclosures, sockets, mounts

This collection brings together STL files for relay accessories, including multi-channel module cases, socket blocks with fuse holders, WiFi smart-switch enclosures and DIN rail mounts. You will find models designed to protect relay boards, organize wiring and fix modules inside projects. Many are straightforward prints that help you integrate relays into custom electronics setups on a standard 3D printer. Polyzon does not confirm whether models are free, their price, license, official status, affiliation, safety or fitness. Check the current terms at the source.

Der Text dieser Sammlung ist auf Englisch verfasst; die Suche selbst funktioniert in jeder Sprache.

Eine Sammlung von Polyzon · 48 Modelle von 6 Plattformen

So entsteht diese Sammlung

Polyzon stellt diese Sammlung aus den Suchergebnissen der angebundenen Plattformen zusammen. Dubletten und Modelle ohne Vorschaubild werden entfernt, schwache Treffer rutschen ans Ende, der Rest bleibt in der Reihenfolge der Suche. Die Modelle gehören ihren Urhebern – die Bedingungen findest du auf der Seite des jeweiligen Modells.

Auswahlregeln: Polyzon-Redaktion · Text aktualisiert: 09.10.2026

Sammlung ansehen Alle anzeigen: 9130 Modelle →
Sammlung

Für den Einstieg

Alle Modelle dieser Sammlung

Alle anzeigen: 9130 Modelle
Über die Kategorie

«Relay 3D models: enclosures, sockets, mounts»

The collection covers socket blocks for fused relay circuits, enclosed cases for multi-channel modules, and housings for WiFi smart switches, microcontroller shields and temperature controllers. Some designs are open mounting brackets with DIN clips, while others are fully enclosed boxes with wire management. The variety reflects both industrial wiring needs and compact home automation setups.

When choosing a model, confirm the target relay type on the author’s page, because a case shaped for a multi-channel board will not fit a different layout. Check the listed dimensions, number of printed parts, and whether the assembly requires hardware such as screws or nuts. Look at photos of real prints to verify wire openings, terminal access and overall fit before you print.

To narrow results, try terms like "relay socket", "smart switch mount", "DIN rail holder", "fuse block" or "temperature relay housing". If you are building around a specific microcontroller shield, include the board family in your query; for home automation projects, combine with "Zigbee" or "WiFi enclosure".

FAQ

Häufige Fragen

Will a multi-channel relay case fit any relay board?
Usually not. Each case is modeled for a specific board outline and terminal layout, so compare the author’s dimensions against your relay module before printing.
What should I check if I want to mount a smart switch on a DIN rail?
Look at whether the model is a clip-on bracket or a full enclosure with a DIN adapter, and confirm the screw hole spacing matches your switch.
Can I adapt a socket block model for a different relay pin count?

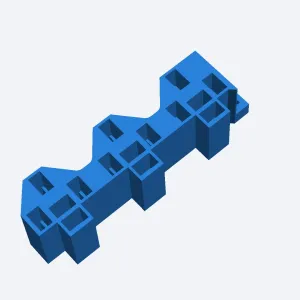

Most socket blocks are designed for a specific pin configuration, such as five-pin relays. Scaling the STL is unlikely to change pin spacing correctly, so search for a block that matches your relay’s contact layout.
Are there models that combine a relay case with a microcontroller board?
Yes, you can find housings that fit both a relay shield and a development board. Check the author description for the specific board variant and whether the case includes wire strain relief.
