Furniture Hinge Jig STL Models for 3D Printing

This collection gathers STL models of jigs, templates and brackets for drilling and mounting furniture hinges. Models include cup-hole jigs, assembly conductors and mounting guides. Before printing, check the author's page for exact dimensions, whether supports are needed, and the material settings the author recommends. Polyzon does not confirm whether models are free, their price, license, official status, affiliation, safety or fitness. Check the current terms at the source.

A Polyzon collection · 46 models from 7 platforms

How this collection is put together

Polyzon assembles this collection from search results on the connected platforms. Repeats and models without a preview are removed, weak matches go to the end, and the rest keeps the search order. Models belong to their authors — check the terms on each model's page.

Selection rules: the Polyzon editorial team · Text updated 2026-10-09

View the collection Show all: 46193 models →
Collection

Start here

All models in this collection

Show all: 46193 models
About the category

«Furniture Hinge Jig STL Models for 3D Printing»

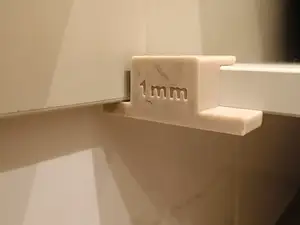

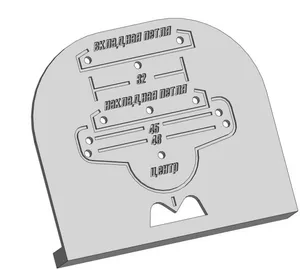

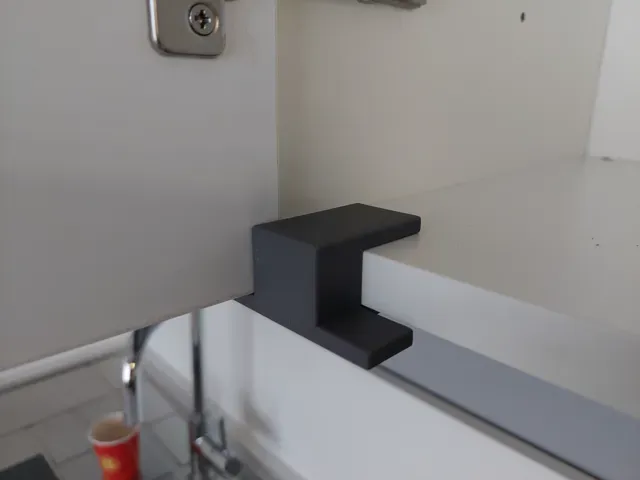

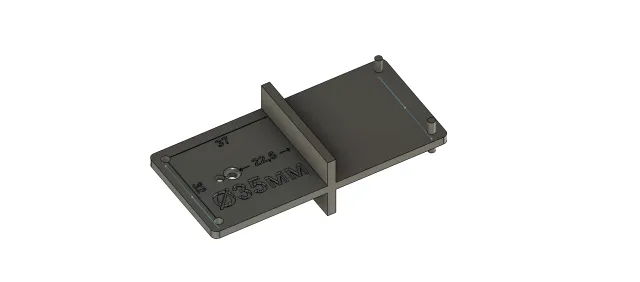

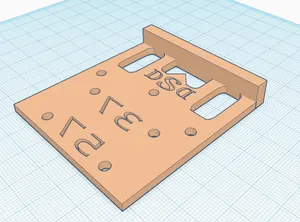

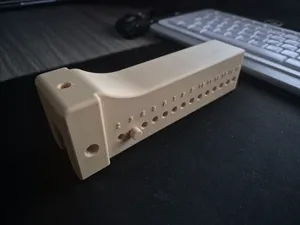

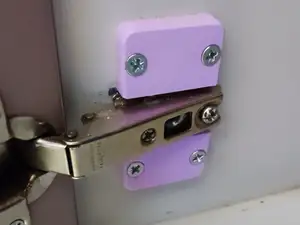

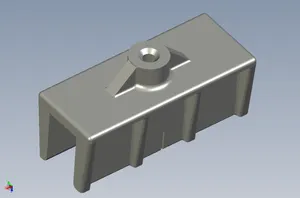

The results span several approaches to hinge installation. Some models are cup-drilling jigs built around a 35 mm hole, meant to align the hinge bowl in cabinet doors. Others are linear conductors that set spacing for screw holes in chipboard or help position brackets before fastening.

When choosing a model, look at the intended hinge type and door thickness the author lists. Check the number of printed parts and whether the design needs assembly or additional hardware like bushings or screws. Also verify if the author included photos of real prints to judge fit and clearance.

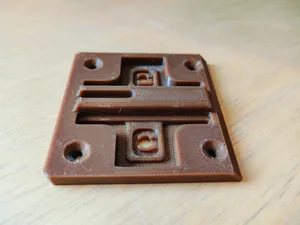

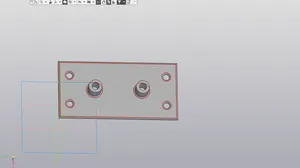

If you need a different style, try synonyms such as cabinet hinge template, door hinge jig, or hinge mounting guide. Related topics include cabinet door repair plates and hardware installation tools.

FAQ

Frequently asked questions

What is a furniture hinge jig used for?
It is a printable template or guide that helps you drill precise holes and align cabinet hinges during assembly.
Can one jig be used for different hinge brands?
Most designs target specific cup diameters and screw patterns, such as the common 35 mm size. Compare the author's listed measurements to your hardware before printing.
What should I check on the author's page before printing?
Look for overall dimensions, the number of printed parts, whether support structures are required, and any photos of real prints. The author's recommended material and layer height can also affect rigidity.
How can I adapt a jig to my cabinet door thickness?

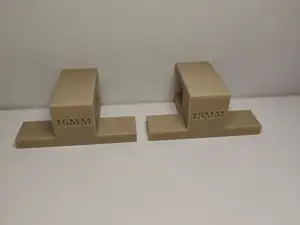

Some conductors are scaled for 16 mm board. If your material differs, check whether the author provides adjustable parameters or if the model can be rescaled in your slicer.
