3D Models for Tape Measure Diagonal Attachments

This collection gathers 3D models for attachments that help measure diagonals with a tape measure, along with angle gauges and calibration tools. You can find STL files for 3D printing that simplify layout tasks in woodworking, tiling, and general DIY. The models vary in complexity, from simple clips to multi-part gauges. Polyzon does not confirm whether models are free, their price, license, official status, affiliation, safety or fitness. Check the current terms at the source.

A Polyzon collection · 46 models from 4 platforms

How this collection is put together

Polyzon assembles this collection from search results on the connected platforms. Repeats and models without a preview are removed, weak matches go to the end, and the rest keeps the search order. Models belong to their authors — check the terms on each model's page.

Selection rules: the Polyzon editorial team · Text updated 2026-10-10

View the collection Show all: 3219 models →
Collection

Start here

All models in this collection

Show all: 3219 models
About the category

«3D Models for Tape Measure Diagonal Attachments»

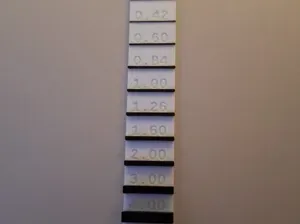

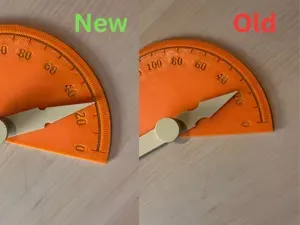

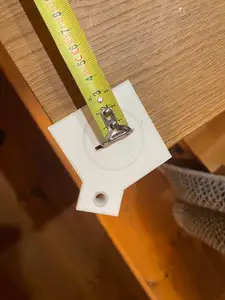

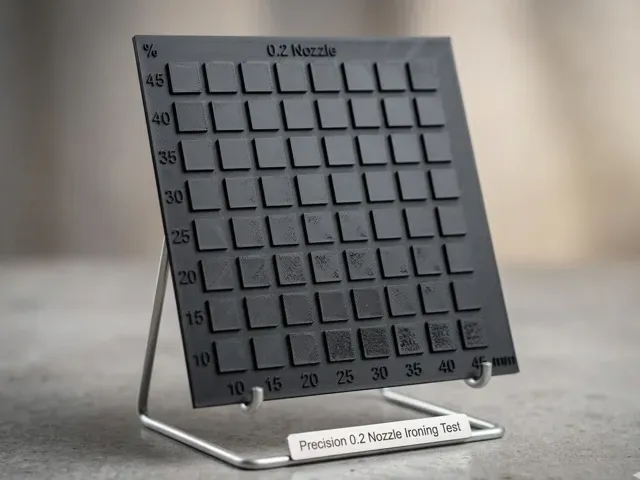

The collection includes tape measure attachments that hook onto the blade for diagonal checks, angle gauges with fixed or adjustable arms, and calibration pieces for verifying printer accuracy. Some models are single-piece prints, while others require assembly with screws or magnets. Measuring aids for tiling and woodworking often combine a ruler edge with a protractor scale.

Before printing, check the model page for the intended tape measure width and the scale markings. Look at the number of parts and whether the model requires support structures for overhangs. The author may list recommended materials, layer height, and infill; photos of real prints show how the gauge fits and reads.

Try synonyms like diagonal gauge, tape measure jig, or angle finder when searching. Related topics include protractors, center finders, and calibration cubes. Combining terms such as 'corner' or 'layout' with 'measuring' can narrow results.

FAQ

Frequently asked questions

What is a diagonal measuring attachment for a tape measure?
It is a small 3D-printed part that clips onto a tape measure blade to help check diagonal distances, often for squaring frames or layouts.
Do these models fit all tape measures?
No, tape measure widths and hook shapes vary. Check the model page for the required blade width and hook style.
What material should I use for a measuring attachment?
PLA or PETG work for most indoor tasks. For outdoor or high-wear use, consider a more durable filament as advised by the model author.
How can I find similar models?
Search for terms like angle gauge, protractor, or calibration tool. You can also look at related collections for woodworking or tiling aids.
