Mesh Panel 3D Models: STL Files for Cases and Walls

«Mesh Panel 3D Models: STL Files for Cases and Walls»

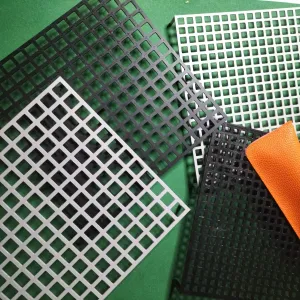

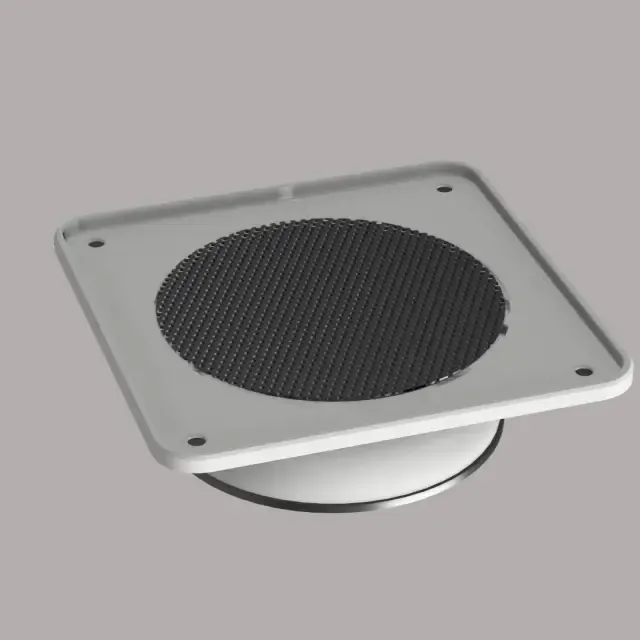

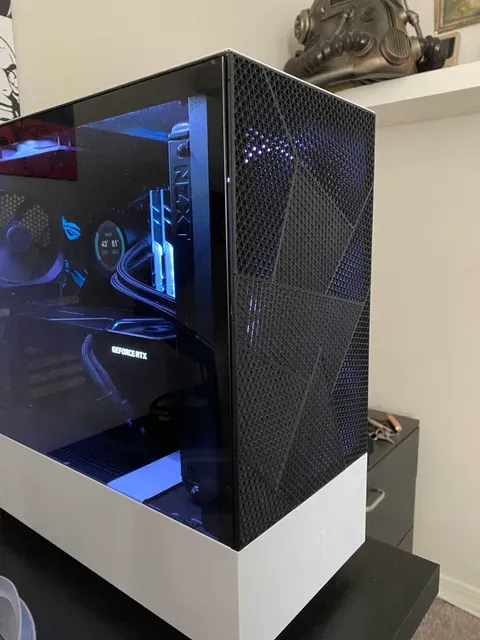

The models fall into a few groups. Case front panels and covers replace or extend a housing opening, while wall brackets and hangers hold a mesh sheet flat against a surface. Vent, dust and filter grids are usually thin frames with a repeating pattern, and hooks, clips and holders are small add-ons that grip an existing panel. Modular panels and enclosures combine several printed pieces into a larger frame.

Before printing, read the author's page for the panel dimensions, the mesh pitch and the thickness the part expects, since a grid drawn for one sheet may not line up with another. Check how many parts the file contains and whether they need assembly, whether the overhangs require supports, and which material and settings the author lists. Photos of finished prints show how the pattern actually comes out at a given nozzle size.

If a search returns little, try related terms: grid, grille, vent cover, dust filter, honeycomb, perforated plate, fence spacer, or bracket. Adding the intended use narrows results quickly, for example a case model name, a fan size, or a wall or enclosure context. Browsing the hooks and holders category often surfaces adapters that fit panels listed under other names.

Thin lattice parts print better when the pattern is oriented so the strands run along the layer lines, and small clips benefit from a slightly larger nozzle or a lower layer height for stronger walls. Scaling a panel changes both the outer size and the openings, so measure the sheet you already have before adjusting the model. If a frame is too flexible in one material, the same file can be reprinted in another to compare stiffness.
