DJI Caddx Vista Canopy for Beta95x

Platform: Creality Cloud
Price: Free
License: see the platform page; The author sets the terms — check them on the model page before printing for sale.
Formats: 3MF

28 Likes
25 Downloads
4 Makes
12 Collected
0 Boosts
0 Comments
4 708 Views

Author:SMT_M 🦊

Published 2022-03-21

Download on Creality Cloud

Description

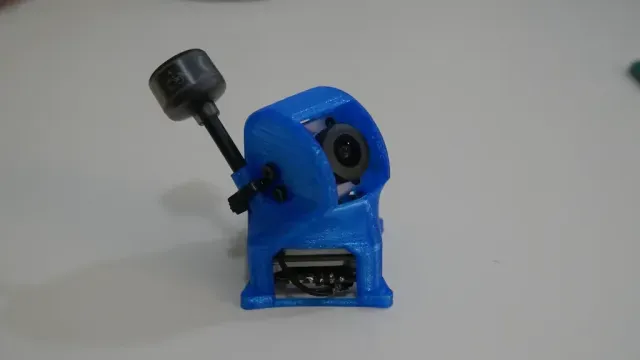

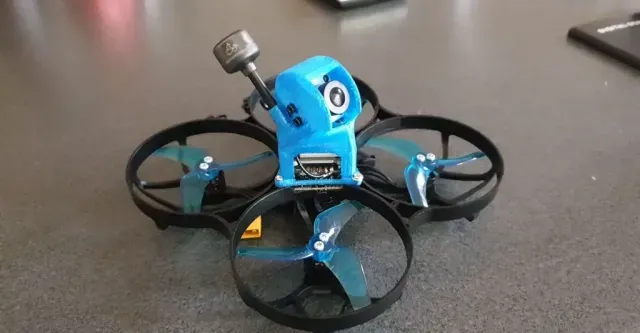

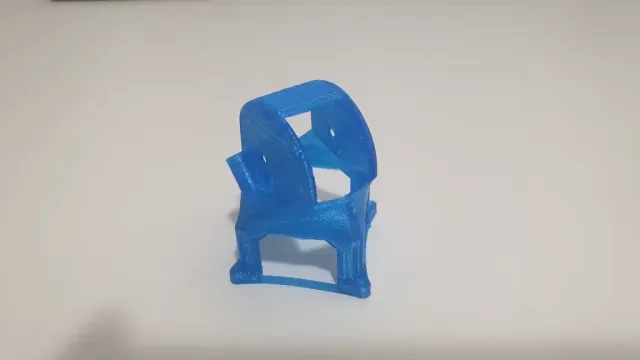

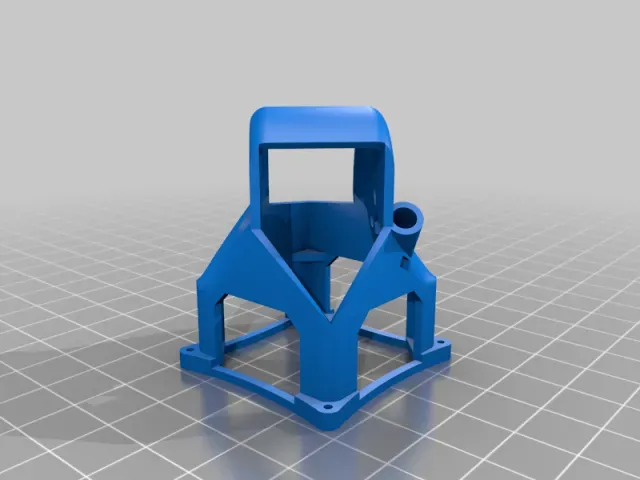

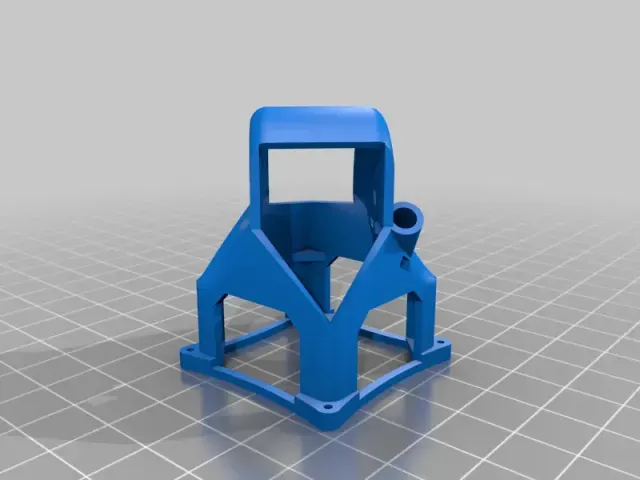

A canopy for the DJI Caddx Vista to fit the beta95x whoop frame.

https://www.youtube.com/watch?v=qqcSJv3_zvM

Print in flexible TPU only.

Install the camera first, followed by wedging in the vista tx unit, and lastly inserting the antenna. Note the orientation of the vista tx unit so the antenna connects directly beneath it.

Weight is 5.5g

Get a Caddx Vista system from here [LINK](https://www.banggood.com/Caddx-Vista-HD-Digital-System-5_8GHz-FPV-Transmitter-VTX-FOV-150-Degree-Camera-1080P-Recording-AIO-Compatible-DJI-FPV-Goggles-Remote-Controller-For-Small-Drones-Whoop-Airplane-p-1625165.html?p=9X051049165582016063) Get the DJI HD FPV Goggles from here [LINK](https://www.banggood.com/DJI-FPV-Goggles-HD-Digital-5_8Ghz-1440+810-720p-or-120fps-Low-Latency-with-DVR-Compatible-With-Caddx-Vista-for-FPV-Racing-Drone-RC-Airplane-p-1546929.html?p=9X051049165582016063)

Print settings: -0.4mm nozzle -20mm/s print speed -2 perimeters -2 top/bottom layers -50% infill -3mm retract distance -No supports required
