Sonoff TH10/16 + Temperature and Humidity Sensor Enclosure

Model details

Platform
Creality Cloud
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 5 Likes
  • 3 Downloads
  • 2 Makes
  • 4 Collected
  • 0 Boosts
  • 0 Comments
  • 1 158 Views

Author:aRGiRob

Published

Download on Creality Cloud

Description

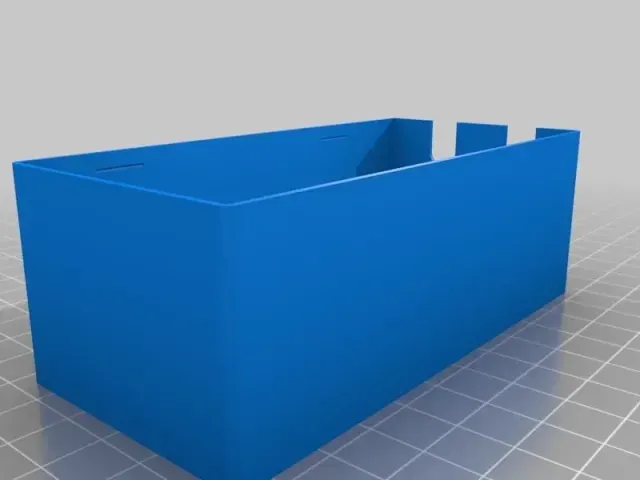

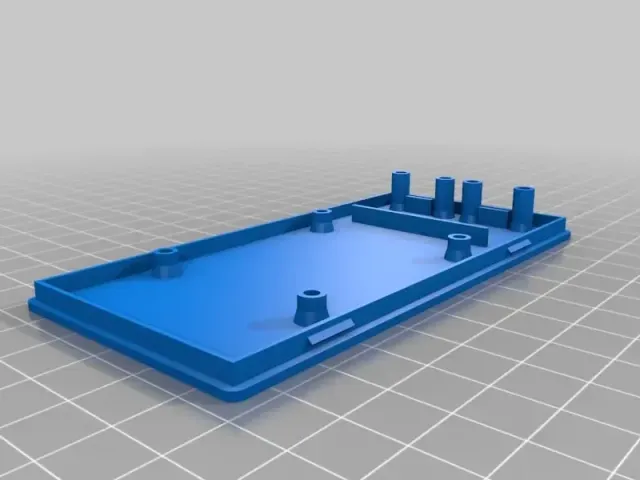

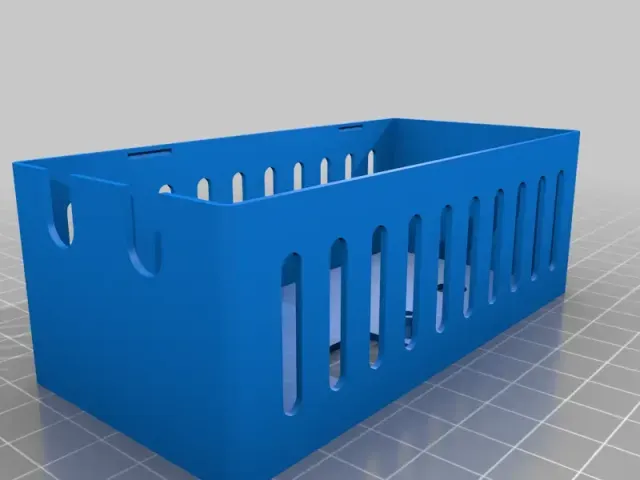

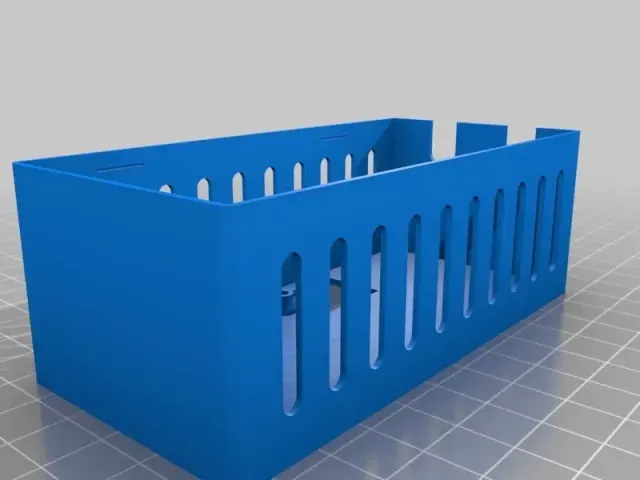

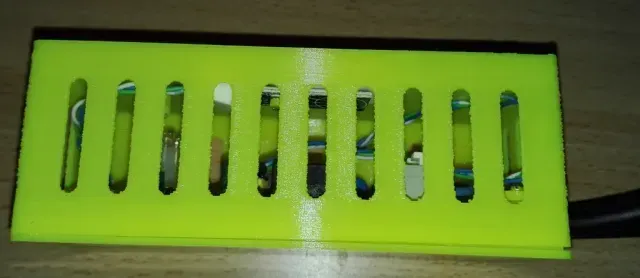

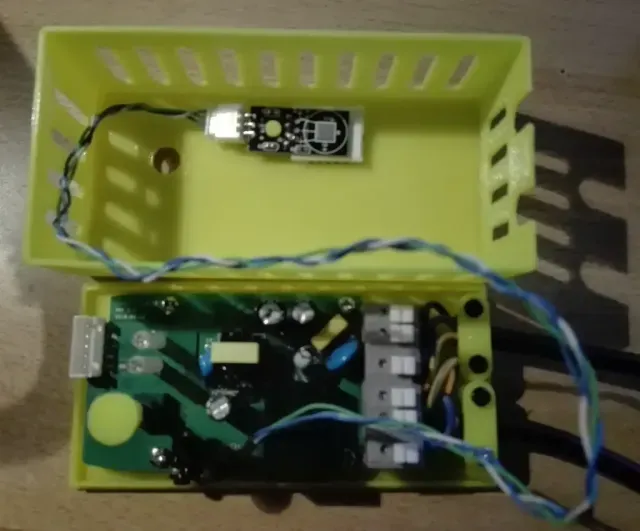

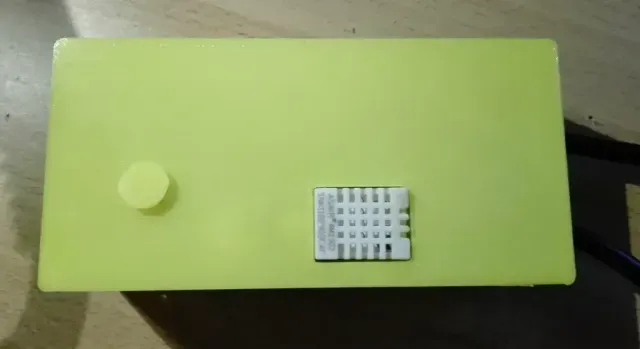

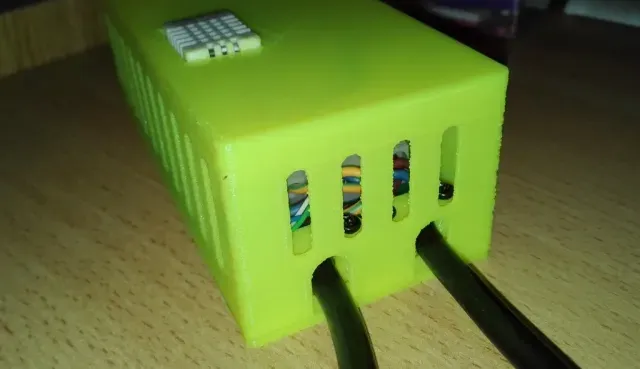

This is an enclosure for a Sonoff TH10 or TH16 switch. I have some DHT22 sensors, so instead of buying the ITEAD sensor, I decided to hack the board and install the sensor without the jack. I also needed to open the original enclosure for the firmware upgrade. There are 4 tab sizes: 3, 4, 5, and 6 mm to secure the wire to the case. I provide 3 different versions: no, partial, and full ventilation holes. I printed the full one (see pictures). You can use the provided pin instead of a screw to secure the sensor to the enclosure.

For other parts, please visit my collection: https://www.thingiverse.com/aRGiRob/collections/my-anet-a8 or my profile.
