90 Degree Spool Bracket W Runout Sensor V2 For Ender 3 V3 KE

***Update V2***

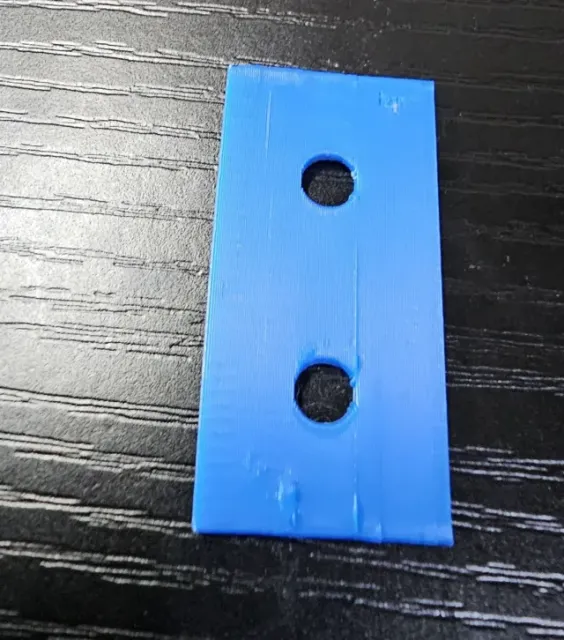

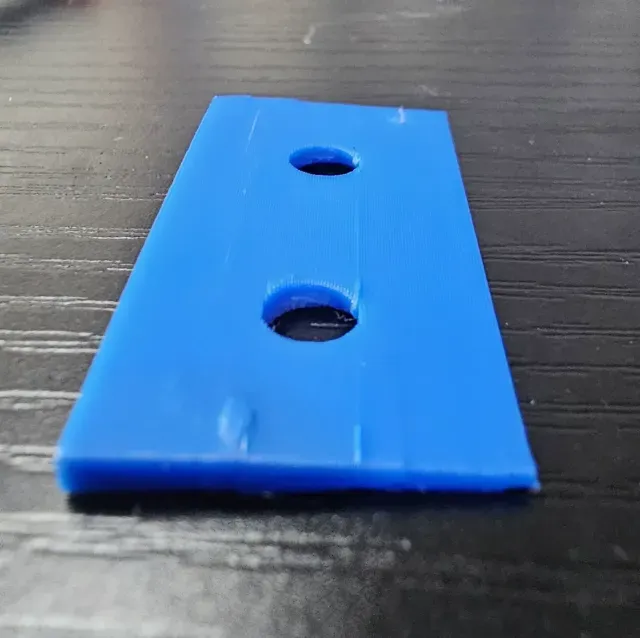

I made the bracket shorter and stiffer so it wouldnt lift as much due to shaking at high speed printing and added optional shim so the spool can be at a slight angle aft and not slide forward as much.

Original

Creality Cloud -Ender 3 V3 KE 90 Degree Spool W Runout Sensor From Sephiroth196 https://www.crealitycloud.com/model-detail/65be7941f512c0a97f302843

*******************

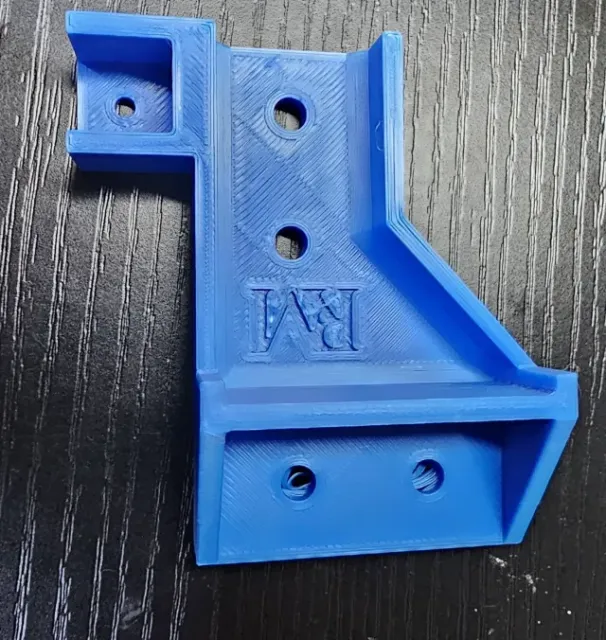

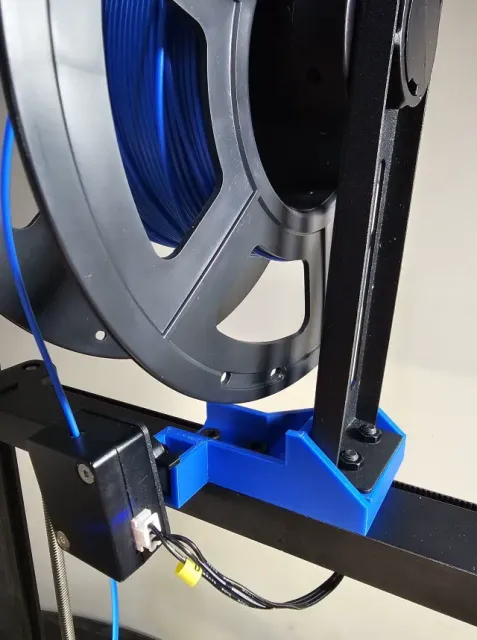

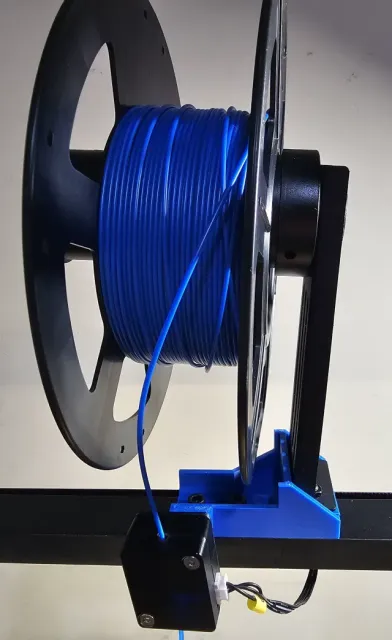

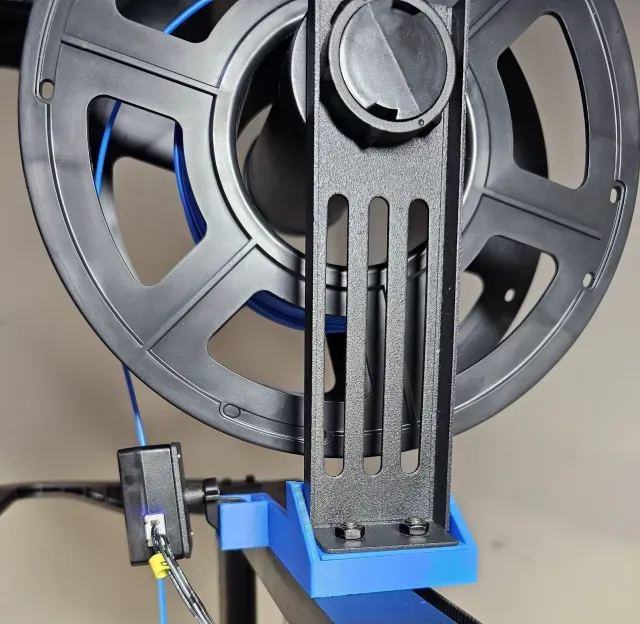

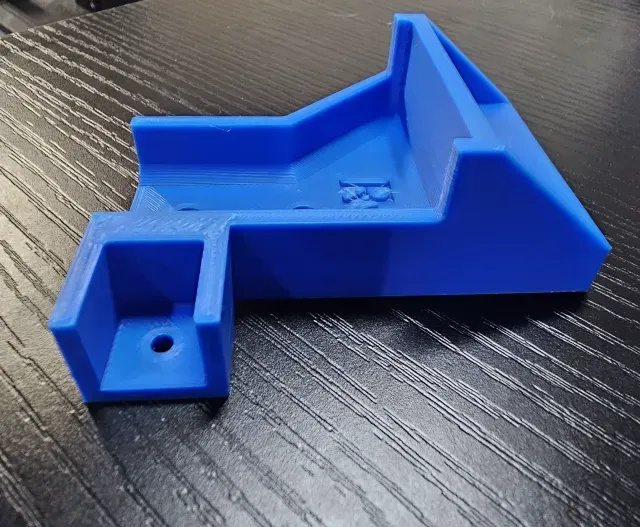

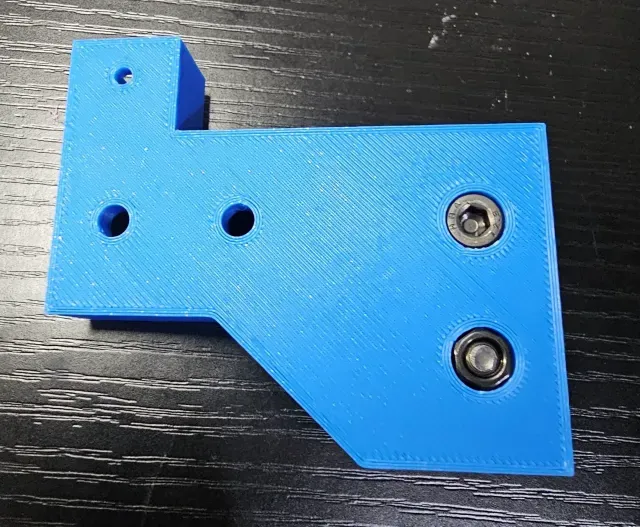

This bracket allows you to turn your filamanet spool holder 90 Degrees with having the filament runout sensor directly below the spool. This was made for an Ender 3 V3 KE and should work for the SE as well. (Can use larger bracket and spool holder that came with printer or shorter bracket and Creality Weighable Digital spool holder as shown in pictures)

Hardware needed / used:

2X M5X12 - Hex Socket Head Cap Screws (To mount to rail, can use existing screws or shorter length)

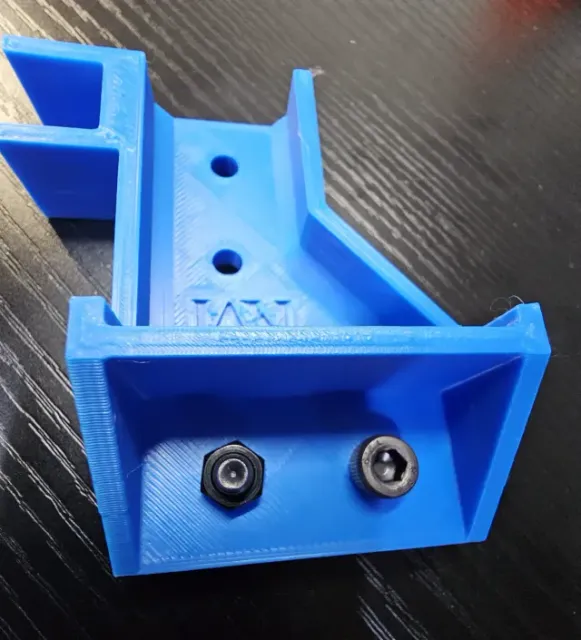

2X M5X12 - Hex Socket Head Cap Screws (To mount existing Spool Holder, screw or nut can either go on bottom side depending on lenght of screws)

2X M5 Nuts (For Spool holder screws)

1X M3 Nut (For Filament Runout Sensor with existing hardware or new M3X8 screw)
