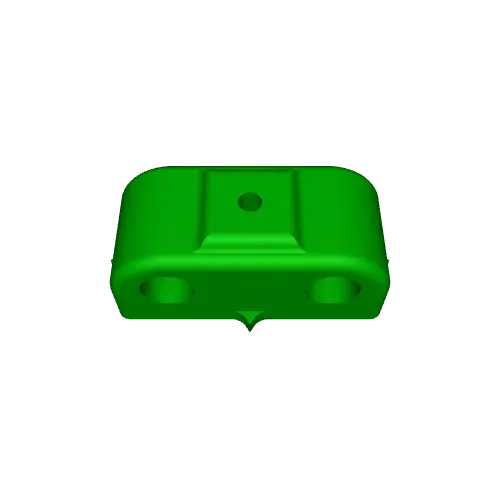

CONDUCTOR LDSP 16_18MM — Image 7 of 9

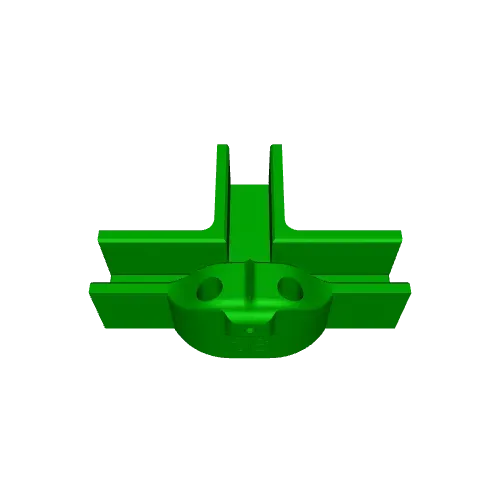

CONDUCTOR LDSP 16_18MM — Image 8 of 9

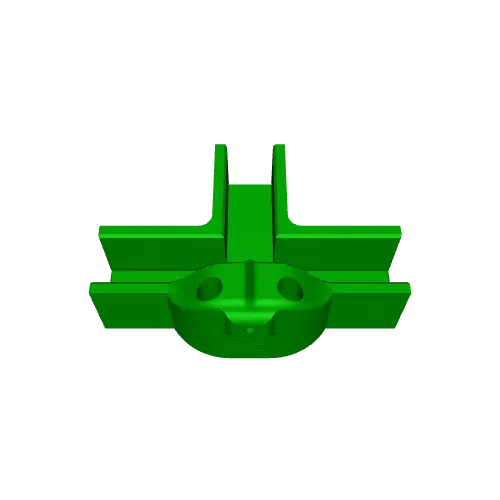

CONDUCTOR LDSP 16_18MM — Image 9 of 9
3D model · Creality Cloud

CONDUCTOR LDSP 16_18MM

Model details

Platform
Creality Cloud
Price
$ 1.00
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 6 Likes
  • 1 Downloads
  • 1 Makes
  • 7 Collected
  • 0 Boosts
  • 0 Comments
  • 1 375 Views

Author:Anarant

Published

Open on Creality Cloud

Description

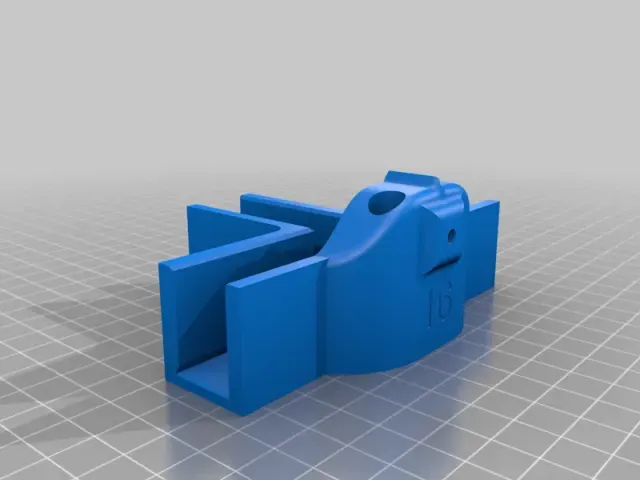

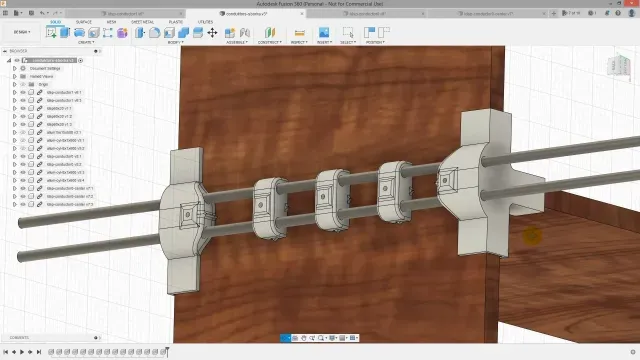

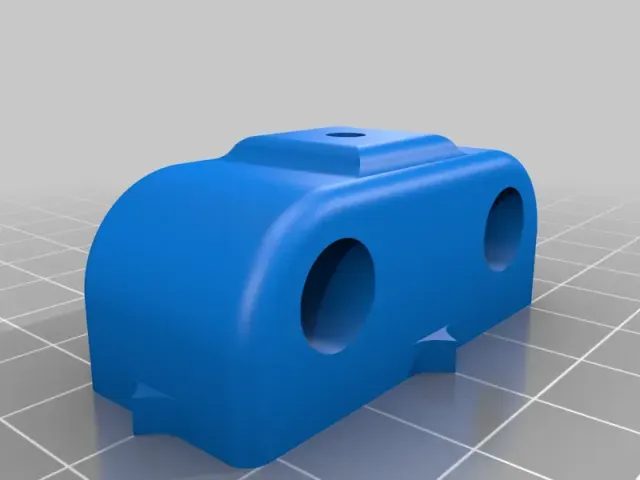

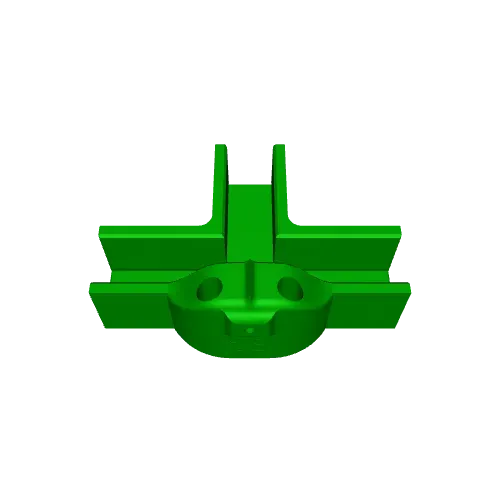

This is a drilling jig with guides to facilitate the assembly of 16mm laminated chipboard. It allows you to assemble furniture using 5x50 and 6x50 screws without dowels. It holds the panel in place and guides the drill perpendicular to the edge.

Guide - 8mm aluminum tube.

NO PLA! PRINT WITH PETG!

Print Settings

Printer: Creality K1 Max

Rafts: No

Supports: No

Resolution: 0.2

Infill: 20-30

Filament brand: Gembird

Filament material: PETG

Notes: NO PLA!!
