Enclosure for Spot and Contact Welding Board

Model details

Platform
Creality Cloud
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
3MF
  • 20 Likes
  • 90 Downloads
  • 10 Makes
  • 33 Collected
  • 0 Boosts
  • 1 Comments
  • 1 006 Views

Author:user3931914638

Published

Download on Creality Cloud

Description

Design and Concept

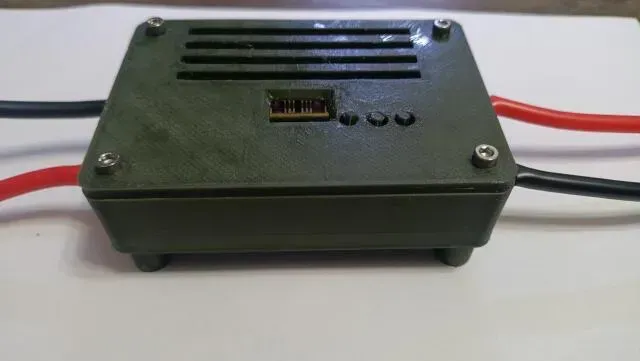

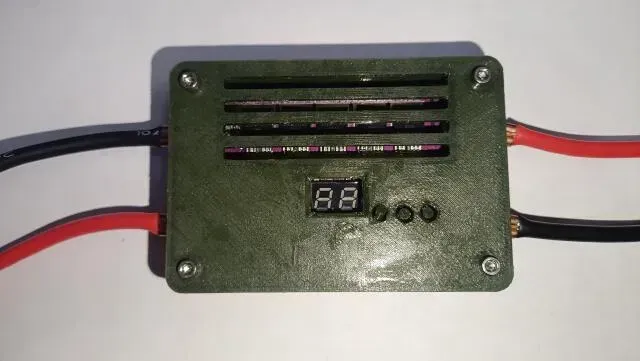

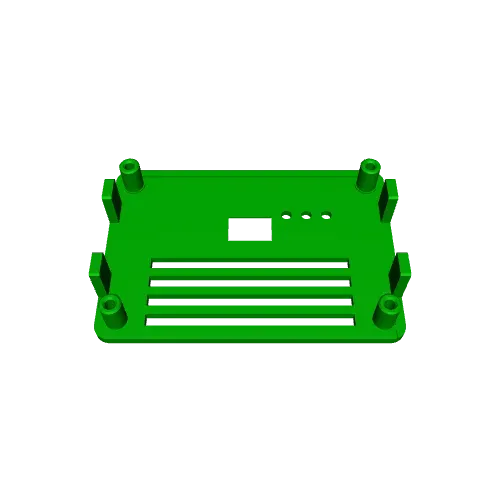

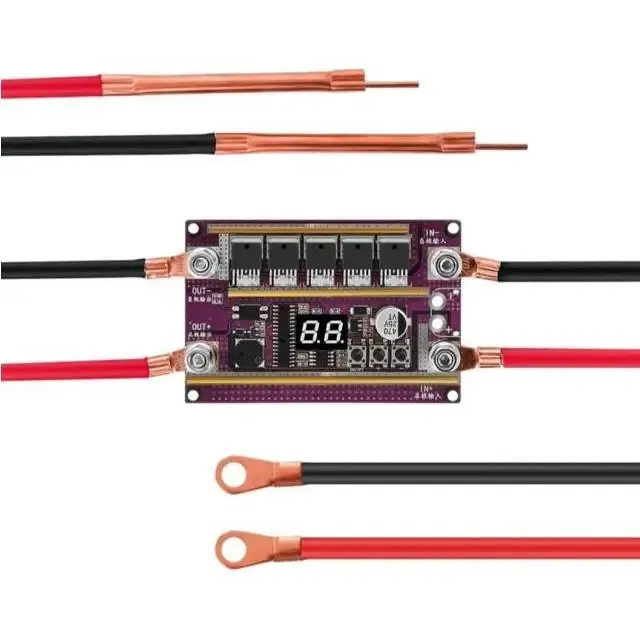

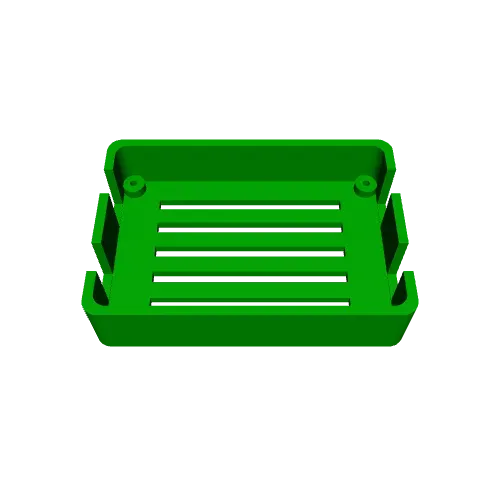

This enclosure is designed to protect and secure the spot contact welding board, ensuring convenient access and safety during operation and storage.

https://3dtoday.ru/3d-models/khobbi/sdelay-sam/korpus-dlya-platy-kontaktnoi-svarki-s-aliexpress-ili-ozon

Usage

Used in a home workshop or professional environment for the safe and convenient storage of the welding equipment board.

Printing Recommendations

It is recommended to use a plastic with good heat resistance, such as ABS or PETG. Layer resolution should not exceed 0.2 mm.

Assembly Instructions

The enclosure should be easily mounted using screws. Make sure all holes align with the board components.
