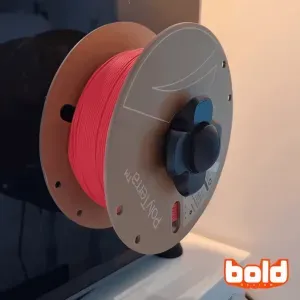

Creality Spool Holder Upgrade with Adjustable Hole Size

V2.0 (deleted)

- Removed bearing mechanism (now requires less material and less assembly)

- Rotates smoothly with Creality's stock spool holder

- Added a pin to make assembly easier

- Resized the diameter so spools with a ~70mm hole can be locked (Sunlu has large hole spools)

- Minor adjustments

V2.2 (spool for Creality HI or the same holder with plastic molded mount holder)

- Adjusted the shape for the mount holder (slightly shorter than V2.0)

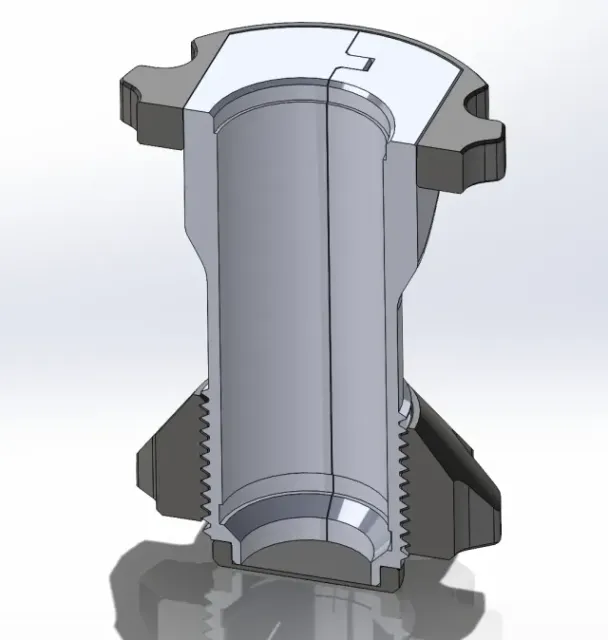

- Added a contact mechanism to the center for smooth rotation without bearings

- Also compatible with Ender 3 or CR-10 - Redesigned cap (tip) for easier assembly

- Improved adjustable nut, fewer threads for easier screwing onto the bolt system

- No bearings needed

- Conventional rotating gear nut - 5 parts

V3.1 2025/05/23 (NEW)

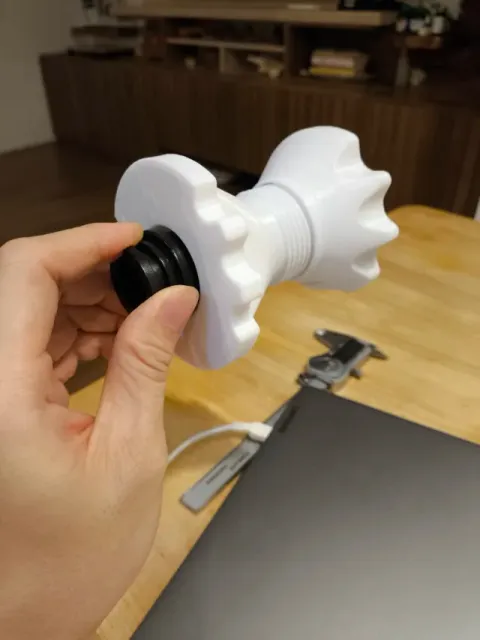

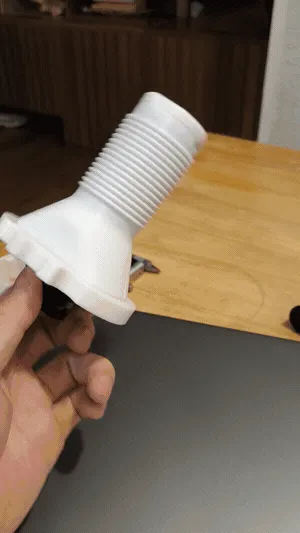

- Ratchet and thread mechanism

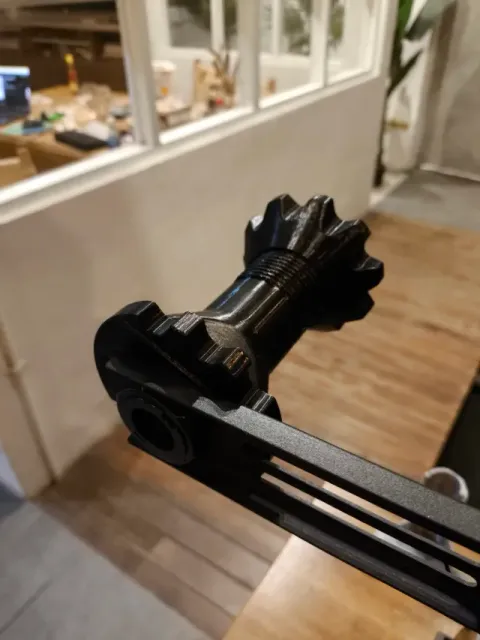

- Compatible with Ender 3 or Creality HI - No bearings needed - Easy to install: just push the nut to pull - Easy to release

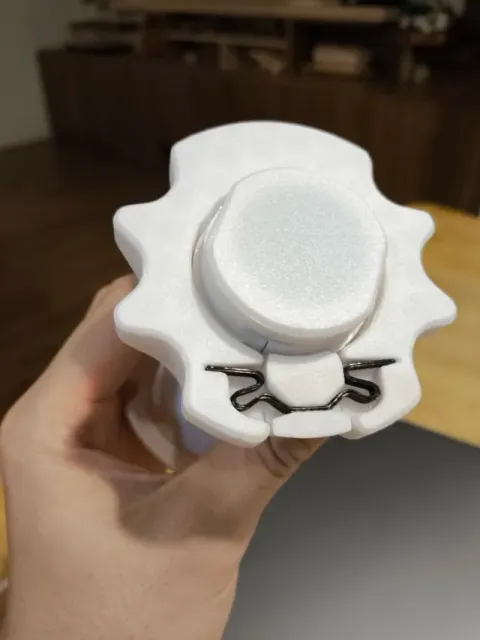

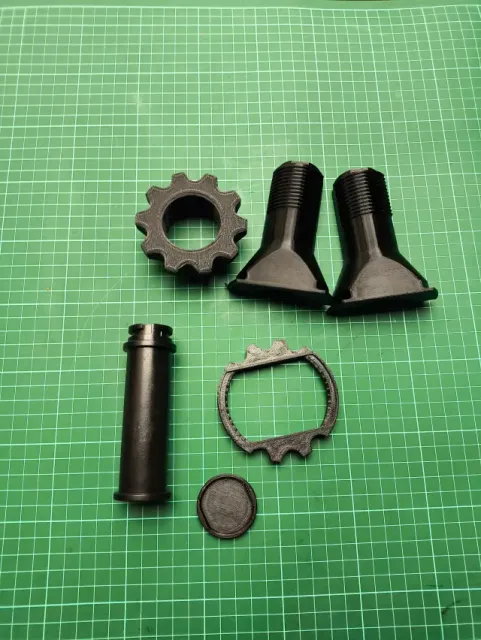

- 6 parts (added spring)

Please leave some feedback, since I only have 2 printers (Ender 3 and Creality HI). Feel free to leave your suggestions or comments below.

Design Concept

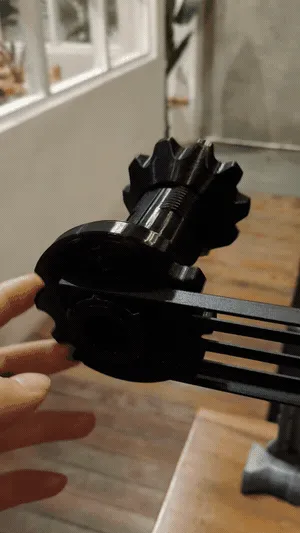

This spool holder is designed as an upgrade for Creality 3D printers (Creality HI, CR-10, Ender 3, etc.) with the same stock holder, featuring an adjustable hole for improved functionality and ease of use.

No need to buy bearings or a shaft, just print it!!

Purpose

The spool holder allows for smoother rotation of the spools, reducing resistance and strain on the printer during the printing process.

Adjustable for every spool

Printing Suggestions

- Recommend using a durable, impact-resistant filament like PETG or ABS for robustness. (PLA is also fine, actually) - Without support - Brim optional (ABS or PETG recommended to use a brim) - Print layer height 0.20 mm (Recommended) -

Assembly Instructions

No complex assembly is required
