Subaru BRZ Kit Card (1:24 scale)

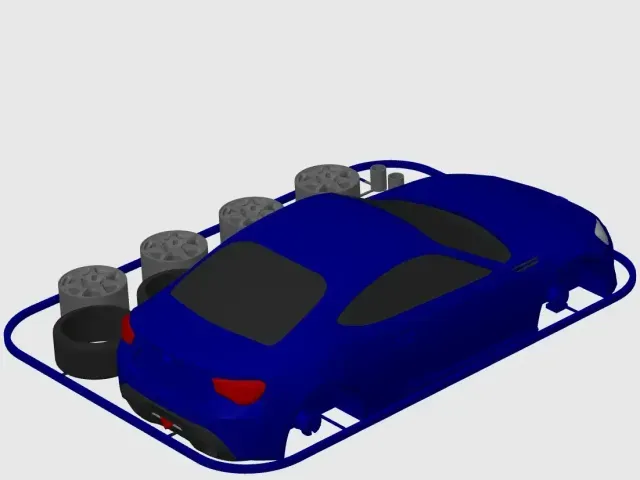

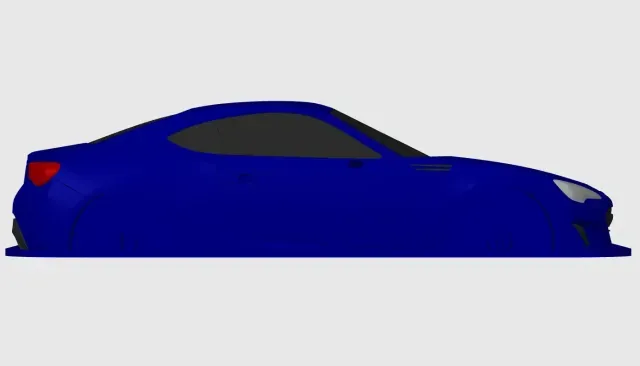

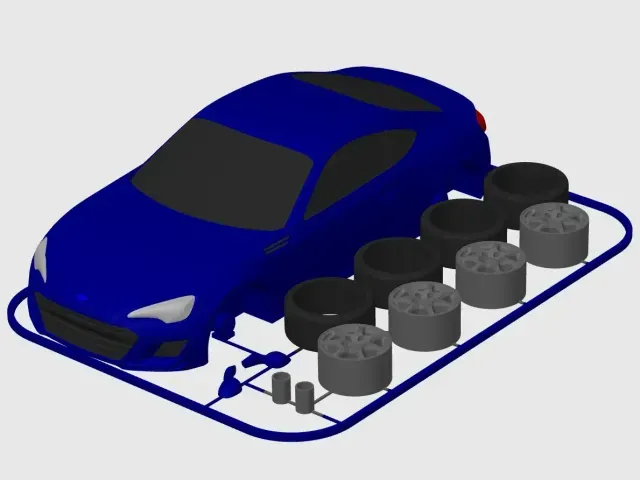

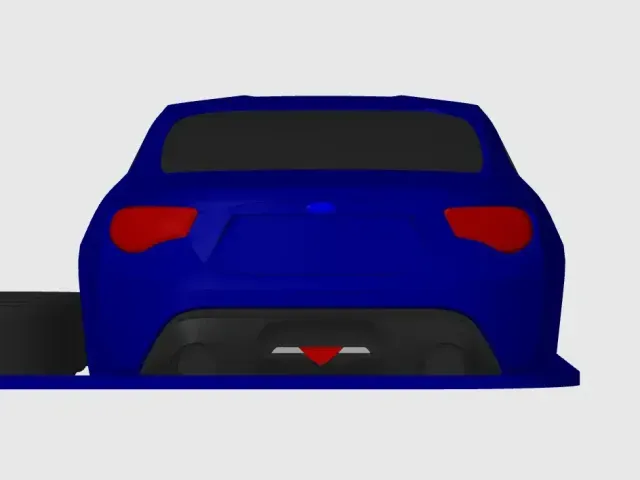

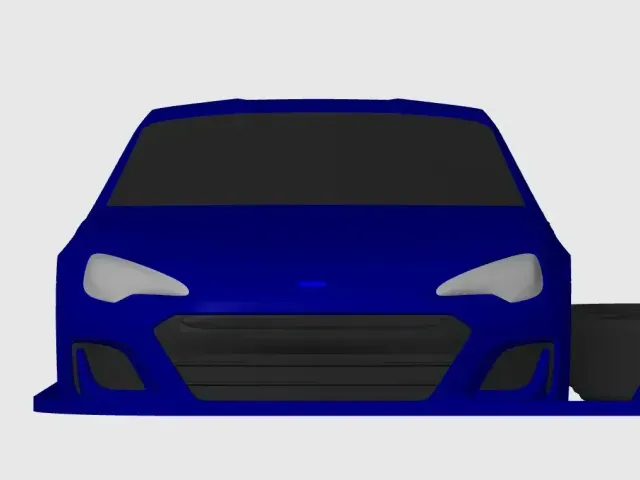

Summary This is a model of a Subaru BRZ (similar to the Toyota GT86) in a kit card style. Some characteristic details can be discovered. Equipped with separate exhausts ;-) After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll.

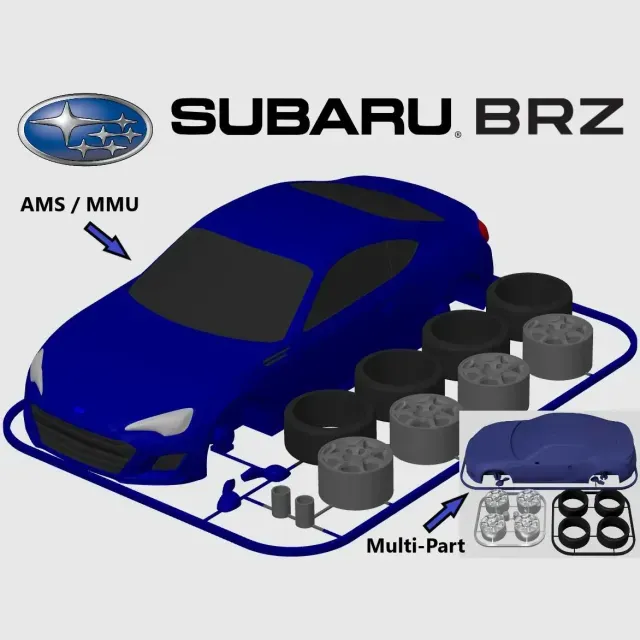

Versions The complete set is available in a 3MF file for a one-color print. There is a 3MF-file with predefined colors intended for users of AMS or MMU. Otherwise, the chassis, rims & exhaust and the tires must be printed separately.

Print Print with 0.15 layer height or lower to bring up the details. No supports are needed. Use 3 perimeters and 10% infill.

Post processing The small struts can be removed really quickly and cleanly using a side cutter. Please remove the predesigned supports under the front axle.

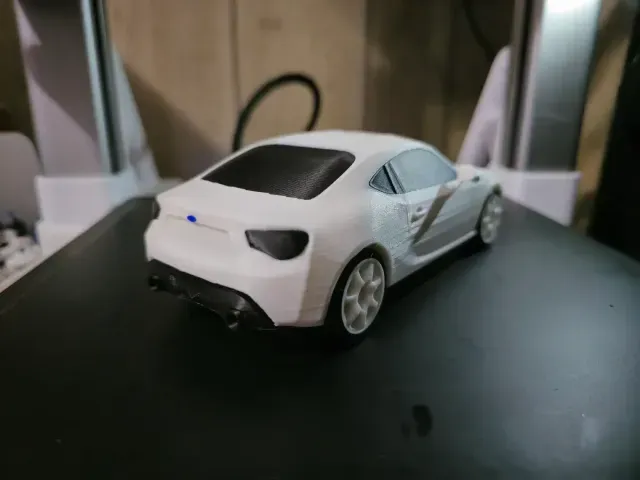

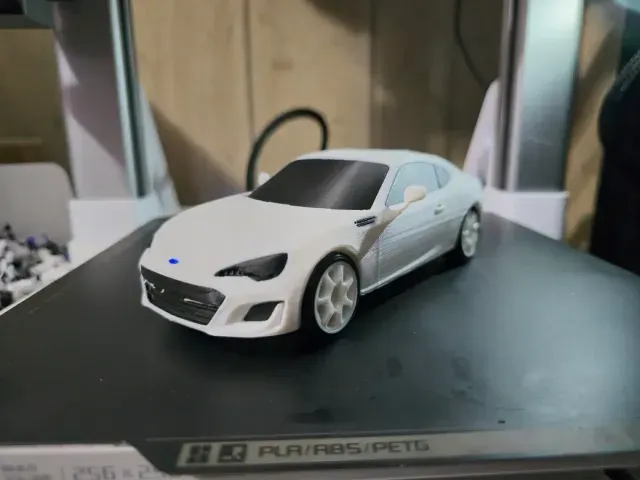

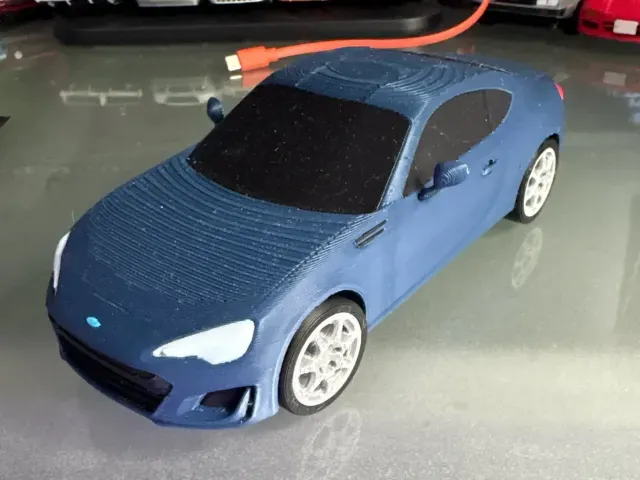

Assembly The kit is easy to assemble. All parts fit together very well. Use some grease for the hole in the rim so that the wheel turns more easily. If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24) The fully assembled model has the following dimensions Height: 55mm Depth: 177.3mm Width: 83.3mm (including side mirrors)

The complete kit card has the following dimensions when printed Height: 44.5mm Depth: 180mm Width: 131.7mm

Scaling will work in a low range due to the tolerances.

Other models I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Get more information about this amazing car here.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

scaled up model disassembled into individual parts and arranged designed exhausts connectors added connected in kit card style and framed painted for AMS / MMU
