Mazda RX-7 (FD3S) Kit Card (1:24 scale)

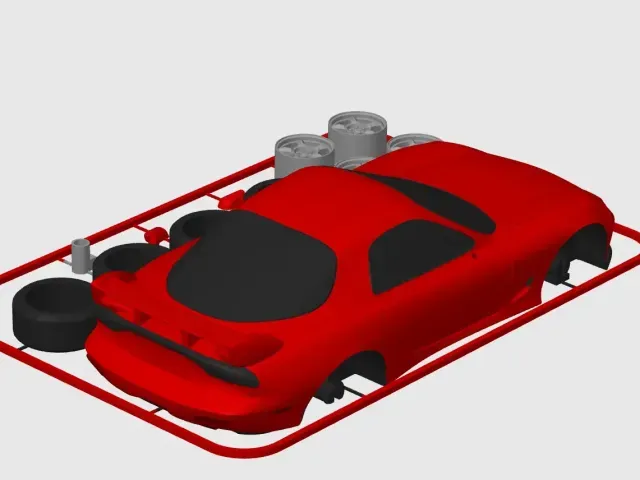

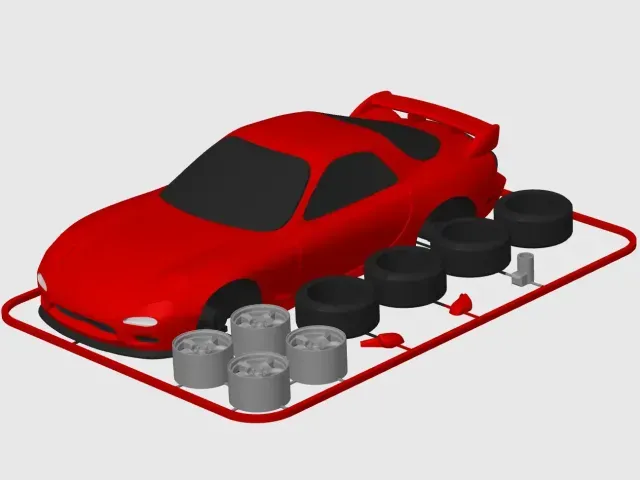

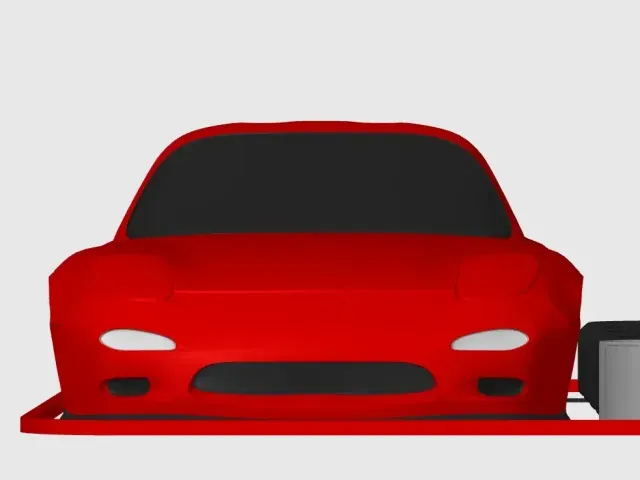

Summary This is a model of a Mazda RX7 (FD3S) in a kit card style. Some characteristic details can be discovered. Equipped with separate exhaust ;-) After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll.

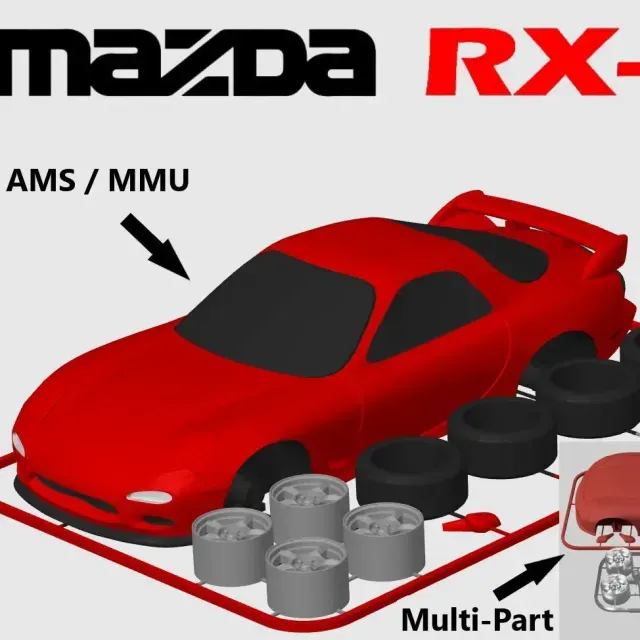

Versions The complete set is available in an STL file for a one-color print. There is a 3MF file with predefined colors intended for users of AMS or MMU. Otherwise, the chassis, tires, rims & exhaust, and the tires must be printed separately.

Print Print with a 0.15mm layer height or lower to bring out the details. No supports are needed. Use 3 perimeters and 10% infill.

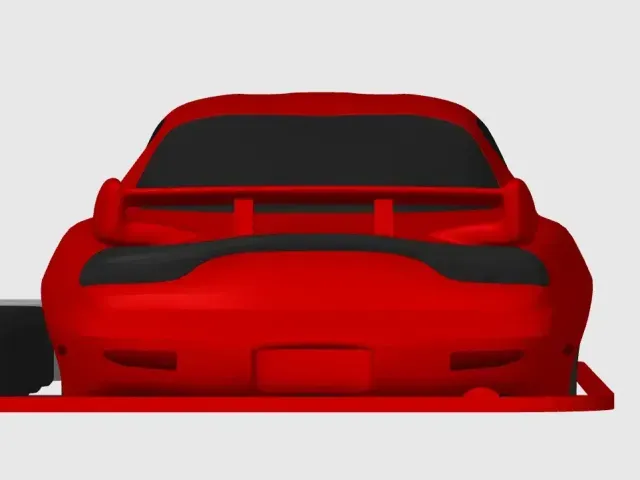

Post processing The small struts can be removed really quickly and cleanly using a side cutter. Please remove the pre-designed supports carefully under the rear wing / spoiler and under the front axle.

Assembly The kit is easy to assemble. All parts fit together very well. If a part is loose, superglue can be used.

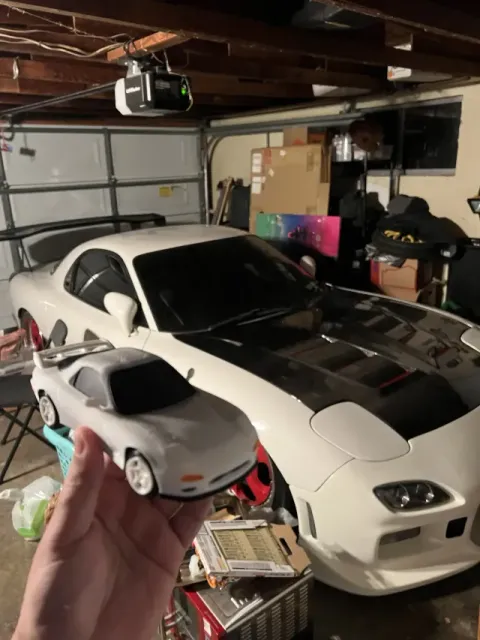

Dimensions at 100% scale (1:24) The fully assembled model has the following dimensions: Height: 54.5mm Depth: 179.6mm Width: 80.6mm (including side mirrors)

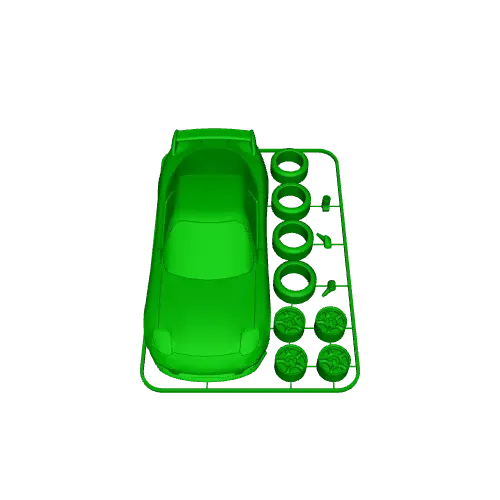

The complete kit card has the following dimensions when printed: Height: 43mm Depth: 187.2mm Width: 130mm Scaling will work in a low range due to the tolerances.

Other models I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original:

Model disassembled into individual parts and arranged Newly designed spoiler Added exhaust Cleaned up some parts Connectors added Connected in kit card style and framed Painted for AMS / MMU
