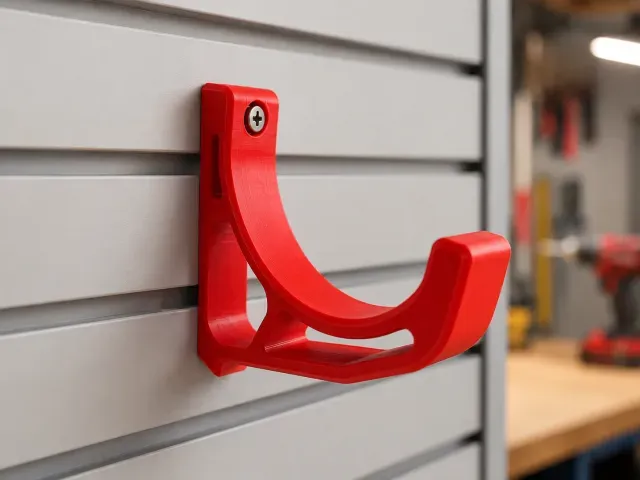

A strong, compact and easy-to-print wall-mounted hook designed for organizing cables, hoses, extension cords, air hoses, workshop tools and garage accessories. The V3 design features a reinforced curved cradle, a clean screw-mounted backplate and a practical no-support print orientation.

Print Description:

Heavy-Duty Universal Wall Hook V3 – Cable, Hose & Extension Cord Organizer

This Heavy-Duty Universal Wall Hook V3 is designed for practical garage, workshop, utility room and home organization. It is a compact but strong wall-mounted hook made to hold coiled cables, extension cords, air hoses, garden hoses, charging cables, rope, straps and other everyday tools or accessories.

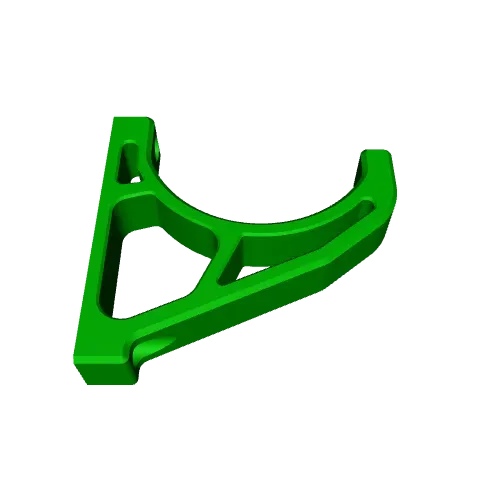

The V3 design uses a smooth curved cradle that supports round items naturally instead of creating a sharp pressure point. The reinforced lower structure and open triangular support section help keep the hook strong while reducing material use and print time. The vertical backplate includes a main screw-mounting point and a slim side cutout detail, giving the hook a clean technical look while keeping the design practical and easy to install.

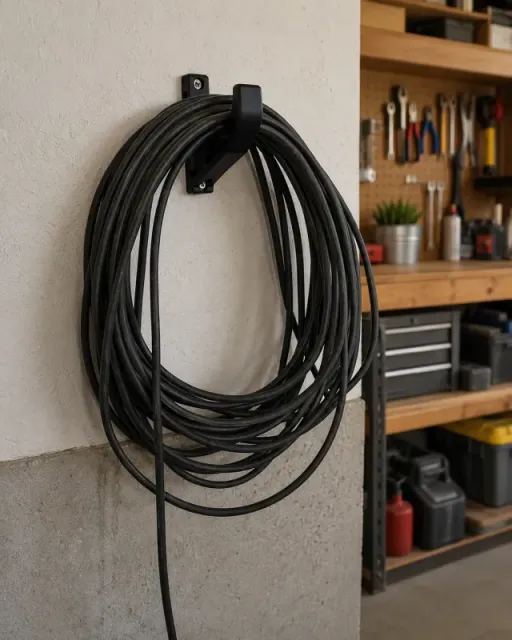

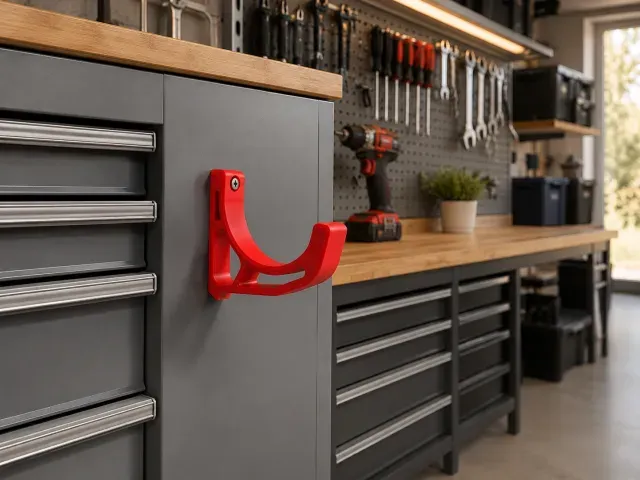

This model is especially useful for organizing messy cables and hoses in garages, workshops, sheds, utility rooms, tool walls, storage cabinets, 3D printing rooms and DIY workspaces. It can be mounted on wood, wall panels, workshop cabinets, pegboard-style backboards or directly onto a wall depending on your screw choice and surface material.

The hook is designed to be printed without supports when placed in the recommended orientation. PETG is recommended for the best balance of strength, flexibility and temperature resistance, especially for garage or workshop use. PLA can work for lighter indoor use, while ABS/ASA may be suitable for more demanding environments if your printer is properly enclosed and tuned.

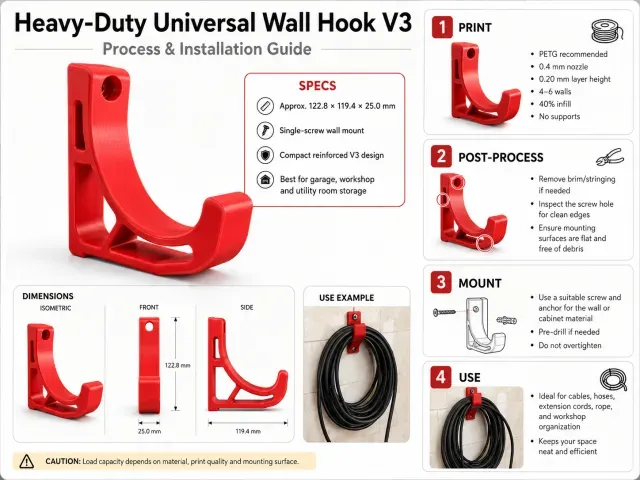

Approximate model size from the STL: 122.8 mm × 119.4 mm × 25.0 mm.

- Key Features

- Heavy-duty wall-mounted hook for garage and workshop organization

- Designed for cables, hoses, extension cords, ropes, straps and accessories

- Reinforced V3 geometry with a curved load-bearing cradle

- Compact footprint with strong practical holding capacity

- No-support print orientation

- PETG recommended for strength and durability

- Works well for tool walls, cabinets, shelves, utility rooms and DIY workspaces

- Clean modern design with visible functional reinforcement

- Easy screw-mounted installation

- Suitable for multiple colors and workshop setups

Practical Use Cases Use this wall hook for:

- Extension cords

- Charging cables

- Air hoses

- Garden hoses

- Vacuum hoses

- Rope and cordage

- Tie-down straps

- Lightweight tools

- Workshop accessories

- Garage wall organization

- Utility room storage

- 3D printer room cable management

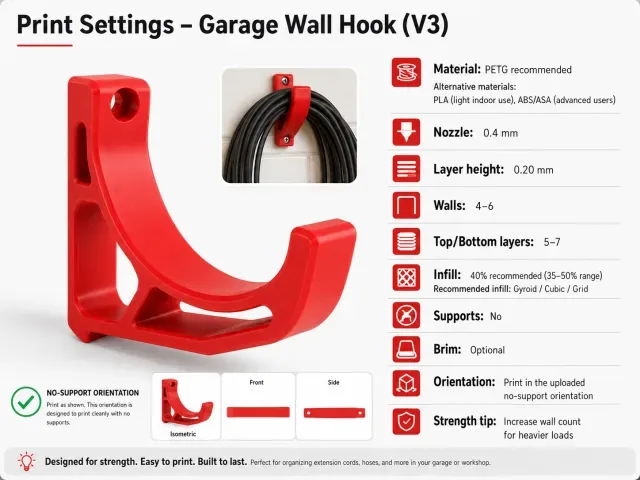

Print Settings Recommended material: PETG Alternative materials: PLA for light indoor use, ABS/ASA for advanced users Layer height: 0.20 mm Nozzle: 0.4 mm Walls/perimeters: 4–6 walls Top/bottom layers: 5–7 Infill: 35–50% Recommended infill: 40% gyroid, cubic or grid Supports: No Brim: Optional, recommended if bed adhesion is weak Print orientation: Flat on the back/side according to the uploaded profile Cooling: Moderate for PETG Strength priority: Increase walls before increasing infill Suggested filament: PETG for garage, workshop and utility use

For heavier loads, use PETG or stronger material, increase wall count, use proper screws and mount the hook into a solid surface such as wood, stud, cabinet side panel or suitable wall anchors.

Installation Instructions

- Print the hook using the recommended orientation.

- Let the part cool fully before removing it from the build plate.
