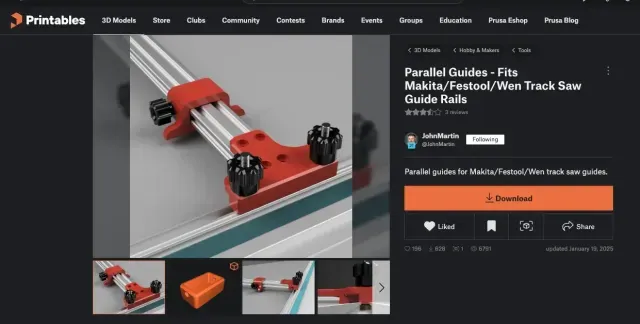

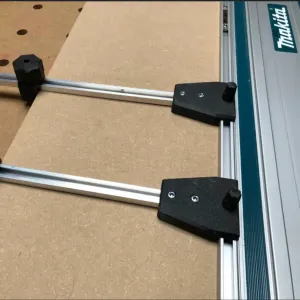

Parallel Guides Track Saw: Makita / Festool, Wen, Powertec

Made by JohnMartin @JohnMartin found at https://www.printxxx.com/model/425364-parallel-guides-fits-makitafestoolwen-track-saw-gu

I have found another parallel guide to cut repetitive cuts... Needs to make Cabinets? That's it !!!!

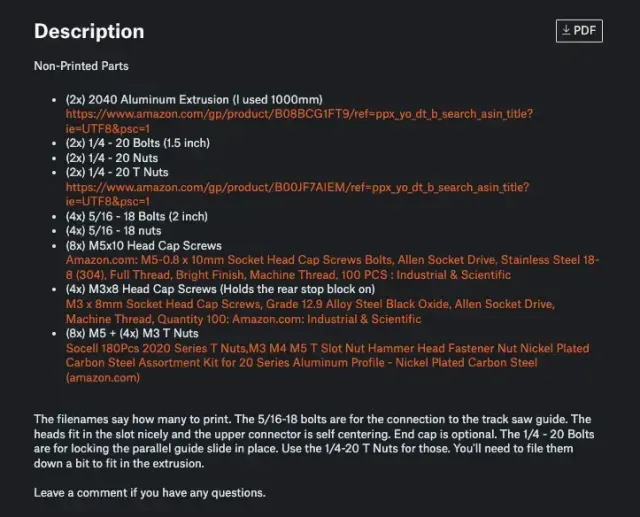

=== Here the description and parts needed from the author ===

Non-Printed Parts

(2x) 2040 Aluminum Extrusion (I used 1000mm)

https://www.amazon.com/gp/product/B08BCG1FT9/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

(2x) 1/4 - 20 Bolts (1.5 inch)

(2x) 1/4 - 20 Nuts

(2x) 1/4 - 20 T Nuts

https://www.amazon.com/gp/product/B00JF7AIEM/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

(4x) 5/16 - 18 Bolts (2 inch)

(4x) 5/16 - 18 nuts

(8x) M5x10 Head Cap Screws

Amazon.com: M5-0.8 x 10mm Socket Head Cap Screws Bolts, Allen Socket Drive, Stainless Steel 18-8 (304), Full Thread, Bright Finish, Machine Thread, 100 PCS : Industrial & Scientific

(4x) M3x8 Head Cap Screws (Holds the rear stop block on)

M3 x 8mm Socket Head Cap Screws, Grade 12.9 Alloy Steel Black Oxide, Allen Socket Drive, Machine Thread, Quantity 100: Amazon.com: Industrial & Scientific

(8x) M5 + (4x) M3 T Nuts

Socell 180Pcs 2020 Series T Nuts,M3 M4 M5 T Slot Nut Hammer Head Fastener Nut Nickel Plated Carbon Steel Assortment Kit for 20 Series Aluminum Profile - Nickel Plated Carbon Steel (amazon.com)

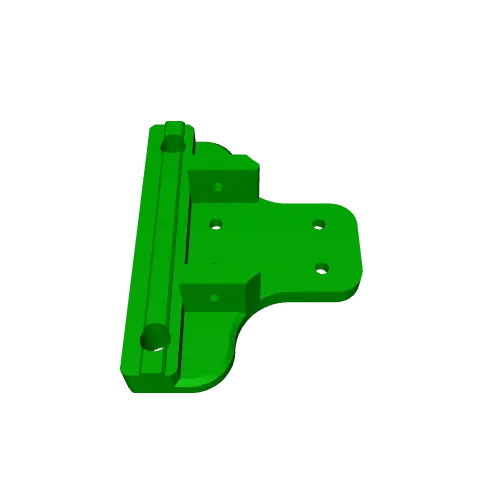

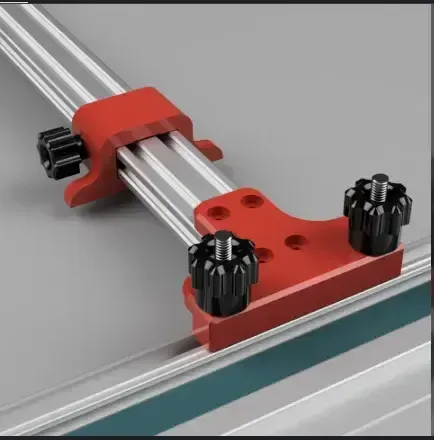

The filenames say how many to print. The 5/16-18 bolts are for the connection to the track saw guide. The heads fit in the slot nicely and the upper connector is self centering. End cap is optional. The 1/4 - 20 Bolts are for locking the parallel guide slide in place. Use the 1/4-20 T Nuts for those. You'll need to file them down a bit to fit in the extrusion.

====
