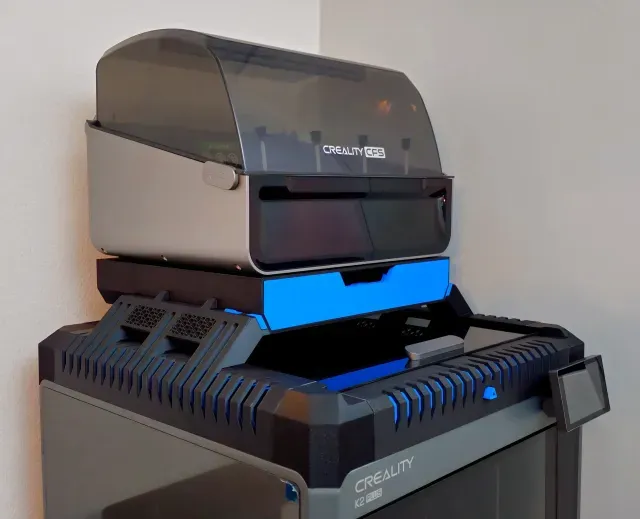

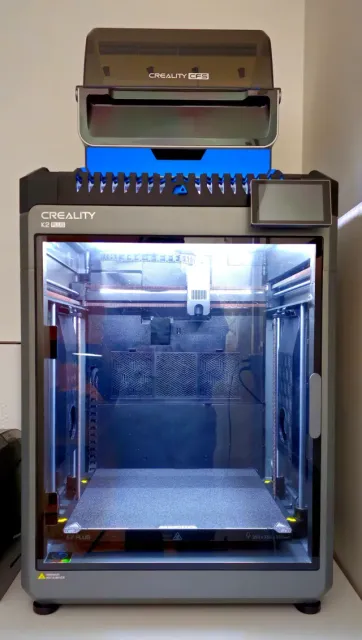

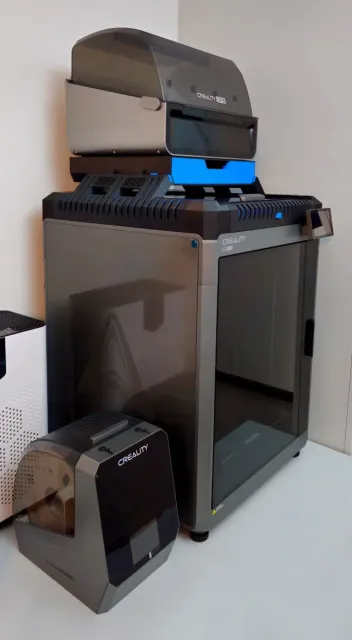

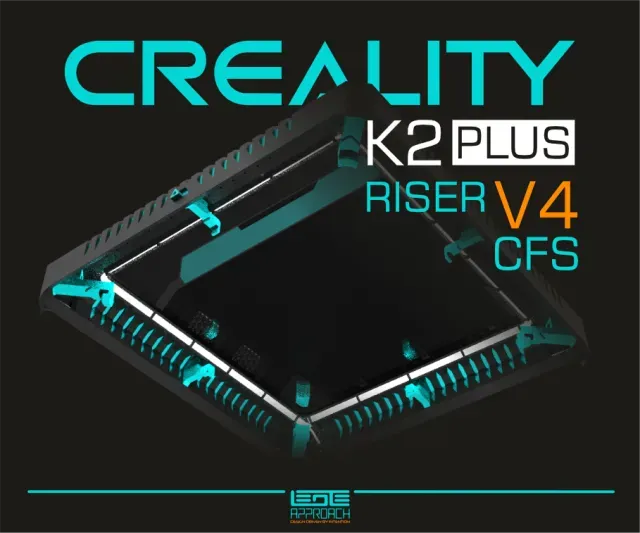

CREALITY K2 PLUS - LID RISER V4 CFS VERSION

*If you have any issues with printing or assembly, feel free to message me, and I'll do my best to assist you .

https://linktr.ee/leoteapproach 

/////UPDATE 01 - 06|01|2026 - NEW FRONT WALL, FRONT VENTS, HANDLE

After using the riser for a few weeks, I noticed that the vents were not holding their position.

The connectors were creating a spring effect, so the vents would slowly move instead of staying where they were set.

///To fix this, I redesigned three parts:

- [b]_x1_K2_V4_VENTS_F

- [a]_x1_K2_V4_FRAME_OUTER_WALL_F

- [b]_x1_K2_V4_HANDLE

In the new version, the vents include two flexible tabs that act like spring clips.

These tabs engage with the detents on the frame outer wall.

///This creates a positive lock with three clear positions:

- Closed

- Half open

- Fully open

Each position is defined by a physical stop, so the vent stays exactly where you set it, without drifting over time.

/////IMPORTANT

*DOWNLOAD THE PDF GUIDE

*All parts have been tested and match the printer dimensions.

- Before you start printing this project, it is recommended to calibrate the filament. This helps avoid fit issues during assembly.

- Always test dimensional accuracy and adjust scale for shrinkage before printing the full set of parts.

- Structural parts such as walls and clamps should be printed in ABS, ASA, PETG, or another material suitable for higher temperatures.

/////THINGS YOU NEED TO BUILD THIS RISER

1 - INSERTS M3 x 4mm (L) x 5mm (D): https://amzn.to/3EovAVw

2 - HEX SOCKET CAP M3 6-20mm (BLACK): https://amzn.to/3R7wjx4

3 - COB LED Strip 2m, 6000K, 8 mm wide: https://www.amazon.de/-/en/dp/B0C3BCHKMV

*Optional: Grease for the drawer rails (CFS VERSION)

/////SHARED FEATURES IN BOTH VERSIONS

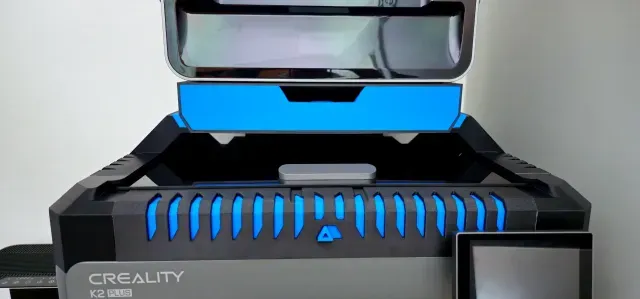

- V shaped vents designed to improve airflow circulation.

- All vents are linked together and open and close using a single handle.

- Clamps that lock the riser to the printer.

- Sliding glass panel.

- Support for an LED strip mounted at 45 degrees and powered independently.

- Parts designed to print with almost no supports.

- Tabs that keep all parts straight during printing.

/////EXCLUSIVE TO THE CFS VERSION

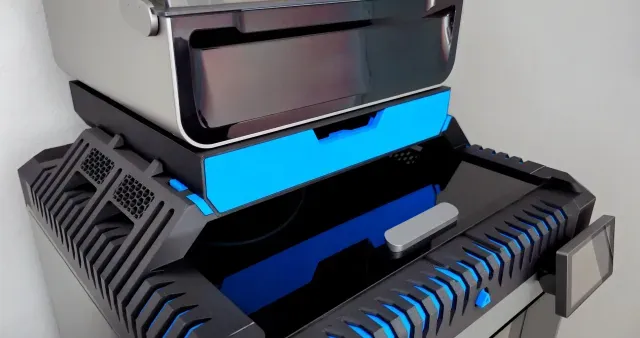

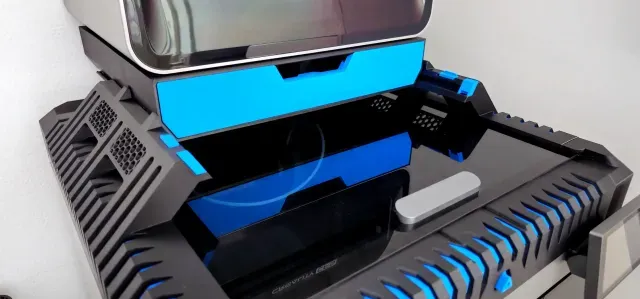

- Integrated base with a drawer.

- The base slides back for easier access to the printer and for installing additional setups such as a TPU spool holder.

- Mounting points prepared for future accessories.
