Reusable Filament Spool – Cardboard Conversion

♻️ REUSABLE FILAMENT SPOOL – Cardboard Conversion

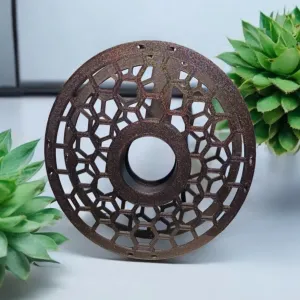

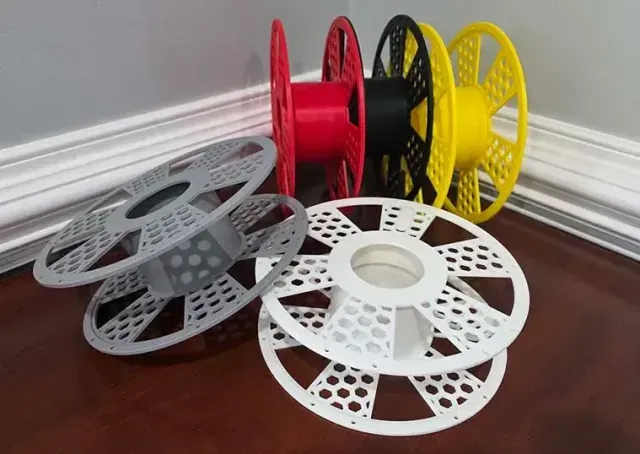

A reusable, two-piece locking filament spool designed to convert damaged or dusty cardboard spools into durable plastic — or function as a standalone filament spool.

This model was originally created to solve real-world issues with Creality HyperPLA cardboard spools used in the Creality CFS, where bent edges, crushed hubs, or cardboard dust can cause feeding and rotation problems.

To handle real-world cardboard variations, optional 82 mm add-on hub rings are included, allowing you to fine-tune the fit when cardboard side panels are removed.

📌 QUICK OVERVIEW

Purpose: Reusable plastic filament spool

Designed for: Creality HyperPLA cardboard spools

Diameter: 200 mm (matches original HyperPLA spools)

Hub Options: ● 80 mm standard hub

● 82 mm add-on rings (included) for oversized or inconsistent cardboard cores

Design: Two-piece twist-lock spool halves

Use Case: Cardboard conversion or standalone filament spool

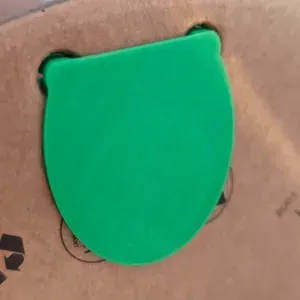

RFID Ready: Integrated RFID tag location

Printing: No supports required

Assembly: Tool-free twist-lock

🧠 PROJECT BACKGROUND

Creality HyperPLA cardboard spools are lightweight and eco-friendly — but they don’t always survive shipping. Bent rims, crushed hubs, and cardboard dust can lead to feeding issues, especially in enclosed multi-material systems like the Creality CFS.

Cardboard hub diameters also vary more than expected once the side panels are removed.

This reusable spool was designed as a Creality-focused drop-in solution to:

● Restore damaged HyperPLA cardboard spools

● Keep cardboard dust out of the CFS

● Compensate for real-world hub size variation

● Maintain original 200 mm spool dimensions

● Avoid manually re-spooling filament

It can also be used as a standard reusable filament spool, even without cardboard cores.

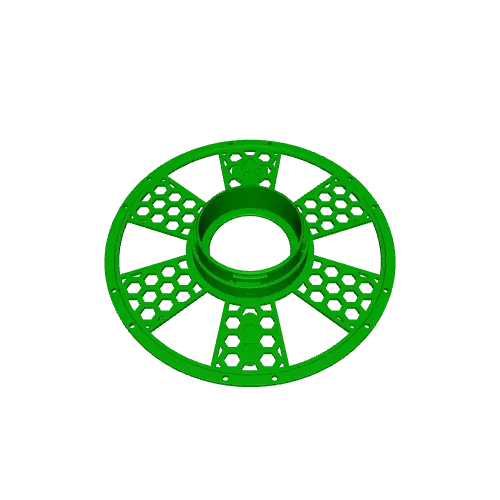

📐 DESIGN DETAILS

● 200 mm outer diameter to match Creality HyperPLA spools

● Two-piece twist-lock design for fast, tool-free assembly

● Converts cardboard spools or functions as a standalone spool

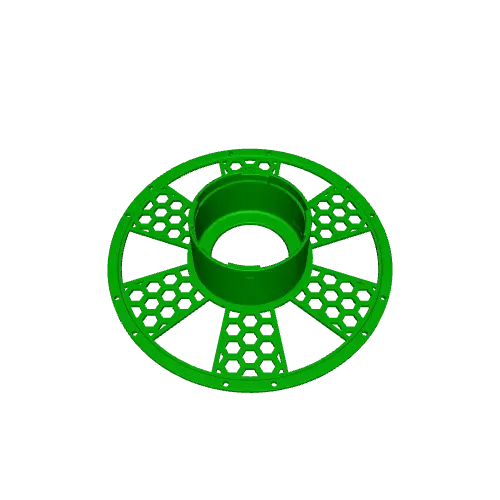

● Standard 80 mm hub for typical cardboard cores

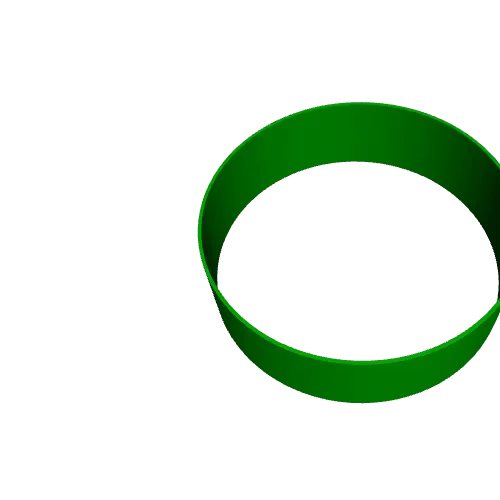

● Included 82 mm slid-on hub rings for oversized or inconsistent cardboard hubs

● Hub remains centered and secure even when cardboard side panels are removed

● Integrated RFID location for:

- Reusing Creality RFID tags

- Adding your own custom RFID or NFC tags

● Open spoke pattern reduces material usage while maintaining rigidity

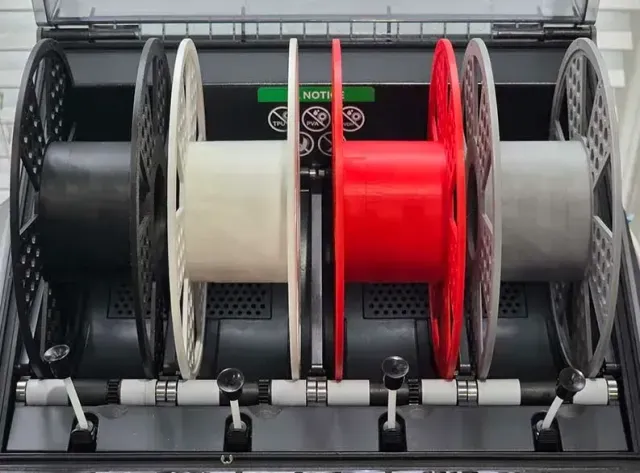

● Optimized for smooth rotation in the Creality CFS and similar systems

● F our directional filament anchor holes (two per side) allow secure filament starts when loading filament onto the hub as a standalone spool

🔧 PRINTING NOTES

Printed examples shown were completed using PLA, but PETG or ABS may also be used depending on your environment and storage needs.
