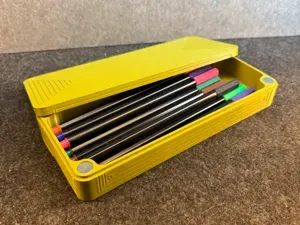

Pencil Case Line

3D printable pencil case with a minimal and functional design, engineered for simple and reliable printing without supports.

Technical features:

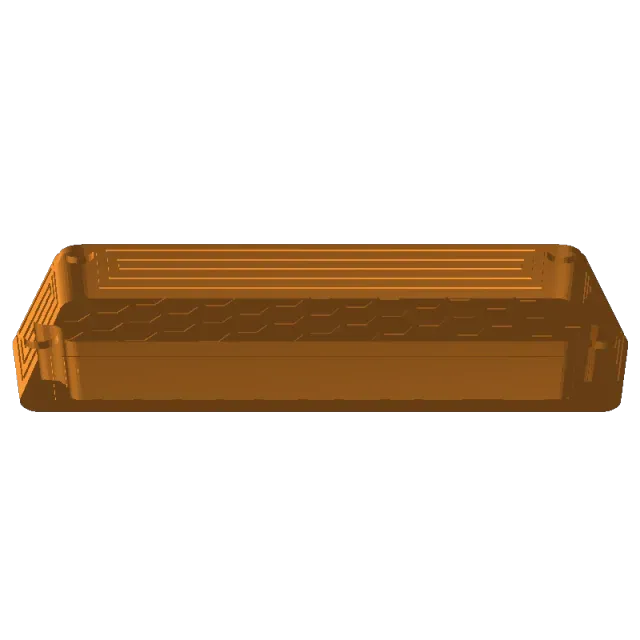

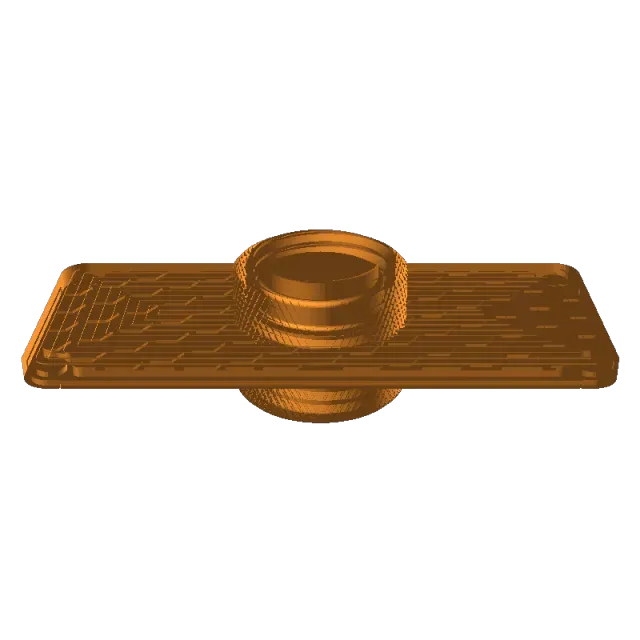

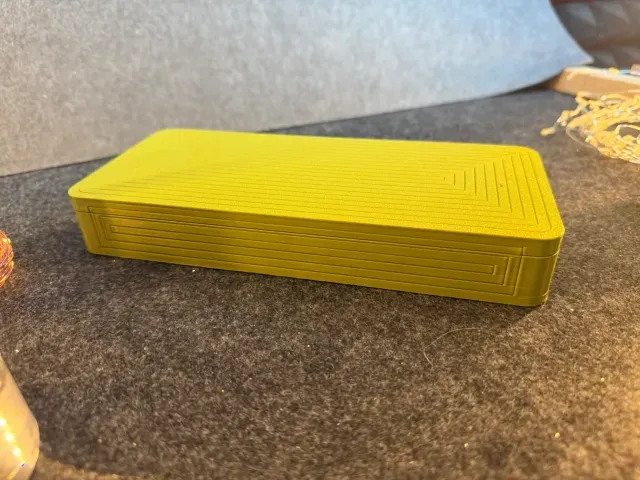

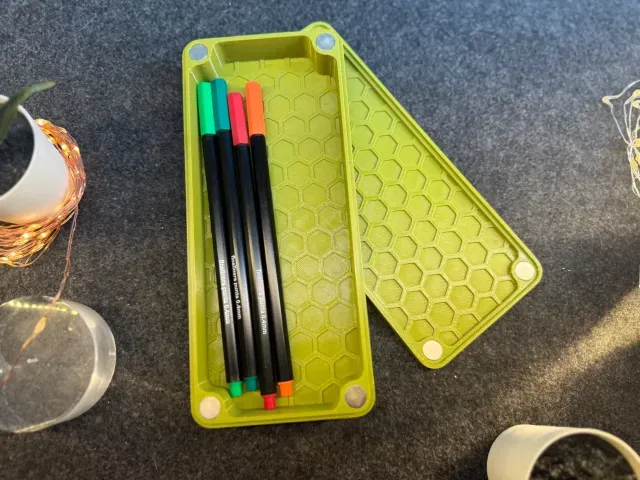

Structure: rectangular box with integrated sliding lid Closure system: side guides with linear sliding and recessed cylindrical magnets (pre-drilled housings in the corners for press-fit or glue insertion) Top texture: concentric pattern engraved directly into the top layer to improve grip, aesthetics, and surface finish on a PEI sheet Interior: base with a honeycomb pattern for material reduction and increased structural rigidity Corners: filleted for greater mechanical strength and better print quality Print optimization:

Designed for FDM printing No supports required Tolerances already calibrated for smooth lid sliding Recommended layer height: 0.2 mm Suggested infill: 15–20% (Gyroid or Grid) Compatible materials: PLA, PETG, ASA Assembly:

Print the body and lid separately. Insert the magnets into their respective housings (check polarity before gluing). 10 mm diameter and 2 mm height magnets

NO GLUE REQUIRED

Usage:

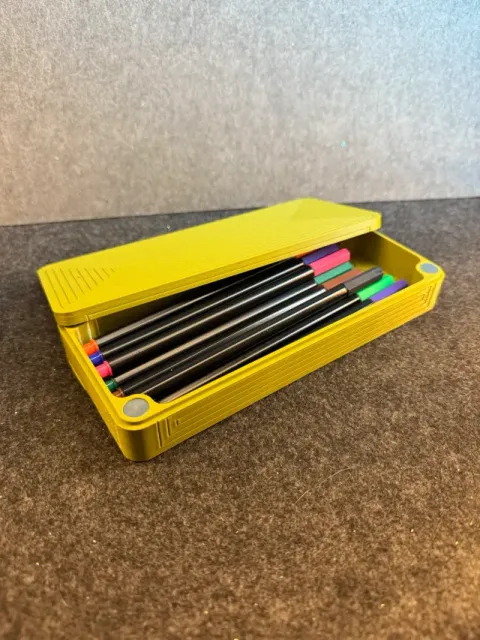

Ideal as a desk organizer for pens, markers, and small tools. The compact design makes it suitable for workstations, laboratories, or home environments.

Model designed to ensure sturdiness, ease of printing, and a clean surface finish directly from the bed, with no need for post-processing.
