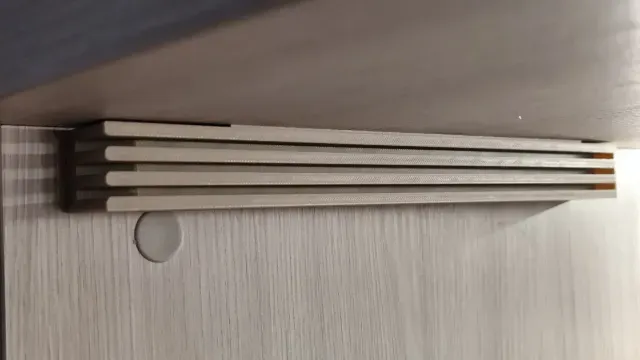

Guide rails for PEI heating plates (mounting under the desk)

Guides, rails, for 3xPEI plates .

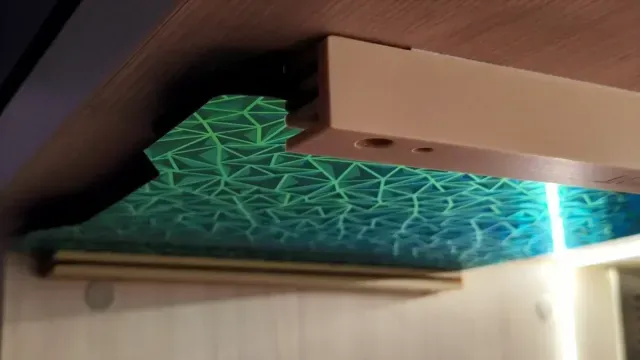

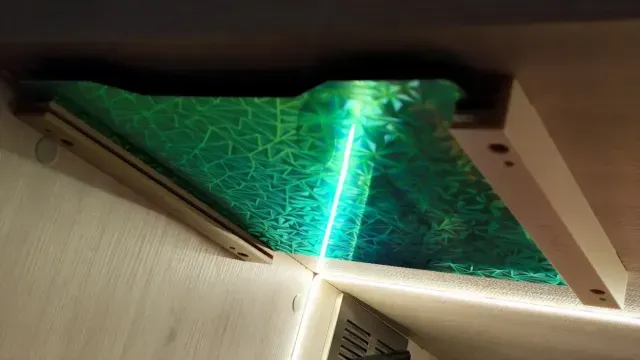

Ideal for mounting under a desk or cabinet. The model is designed so that it can be mounted using double-sided tape or screws. Or even both at once. Whatever is more convenient for you.

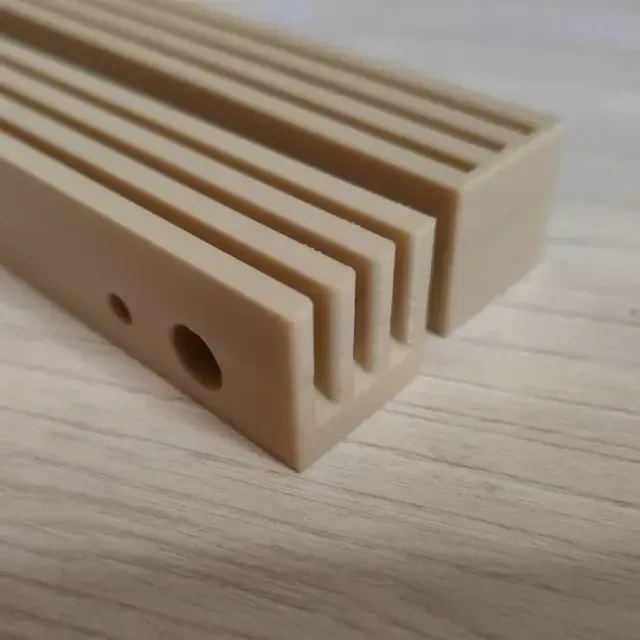

Inserting the plate is easy because it is contoured, so you don't have to aim precisely.

The mount is suitable for any size of PEI plate (even 300mm or more). The width of the heating plate is arbitrary; you decide what width of plate you want to mount. I recommend leaving a 1mm gap during installation so that the plates do not fit tightly into the slots, but more is not necessary. Insert the PEI plate and move it literally 1 mm away, adjusting both elements.

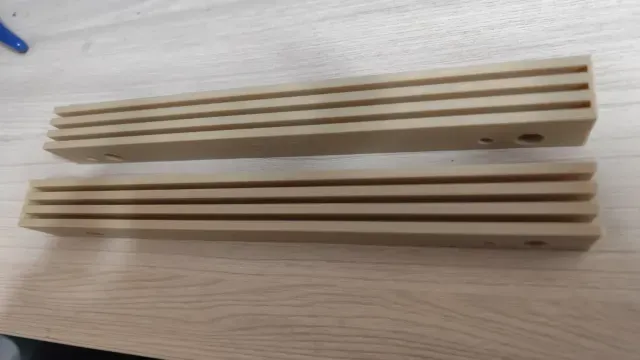

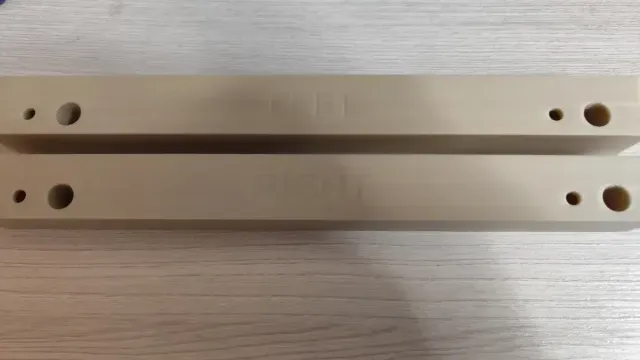

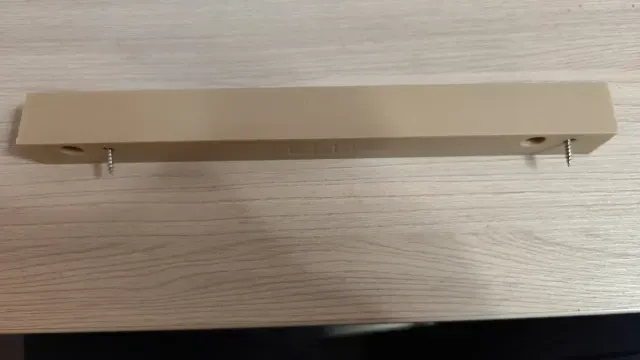

You print one element twice . Both can be used on the left and right sides, as I designed it to be convenient and to avoid printing two different elements. The side marked LEFT indicates that you mount the screws on this side with this inscription, and the element is then on the left side. The same applies to the RIGHT side.

The model is adapted for printing on a table with dimensions of 260 mm . If your table is smaller, you can rotate the model at an angle.

Printing is simple and should not cause any problems.

Model dimensions: 25x25x260mm

My settings:

First layer 0.22

No supports.

Gyroid infill.

Enjoy!
