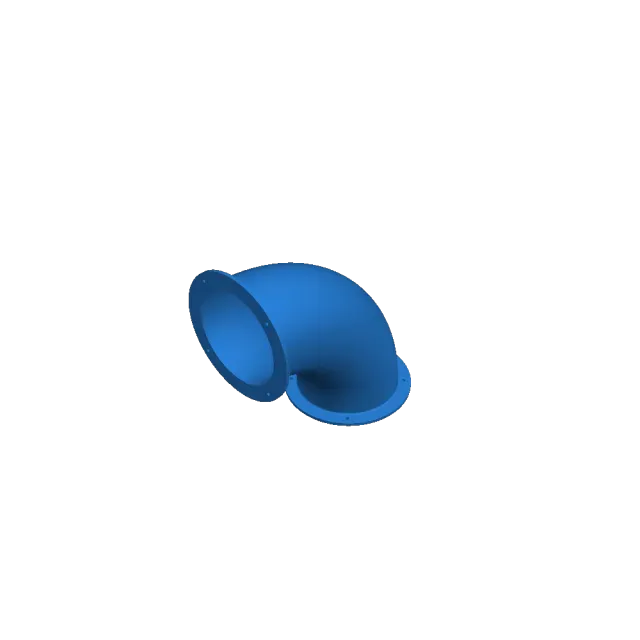

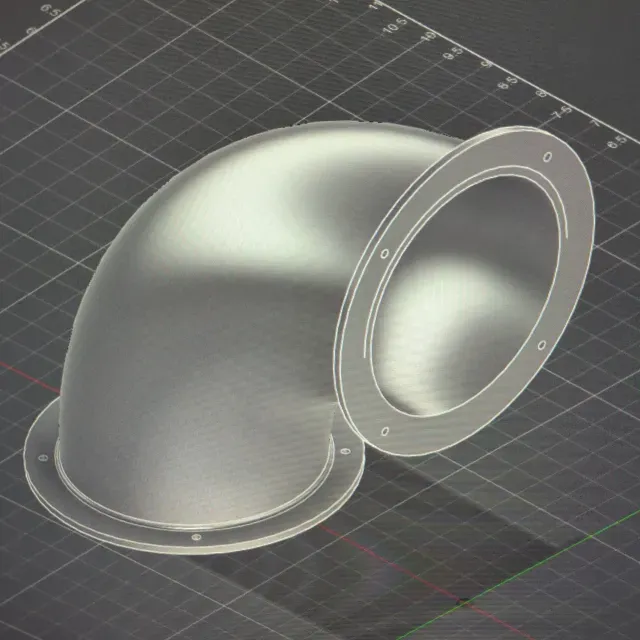

3.625 ID 90° Elbow With Flanges
Model details
- Platform
Creality Cloud
- Price
- Free
- License
- PRIVATE-USE
- Personal use only: print for yourself, no selling or sharing.
- Formats
- 3MF
- 0 Likes
- 7 Downloads
- 1 Makes
- 0 Collected
- 0 Boosts
- 0 Comments
- 24 Views
Description
Design Concept
The 3.625 ID 90° Elbow with Flanges is designed for optimal flow management and connectivity in piping systems. Utilizing a seamless curvature and solid structural design, it provides reliable performance under pressure.
Purpose
This elbow joint is ideal for adjusting the flow direction in diverse plumbing and industrial applications, ensuring leak-proof and sturdy connections.
Printing Advice
Utilize a strong filament with sufficient tensile strength, such as PETG or ABS, for enhanced durability. It's recommended to print with high infill settings (around 25%-50%) to maintain structural integrity.
Assembly Instructions
Ensure precise alignment of the flanges before fastening bolts to secure the elbow within a piping system. Proper sealing should be applied to the flange connections to prevent leakage.
