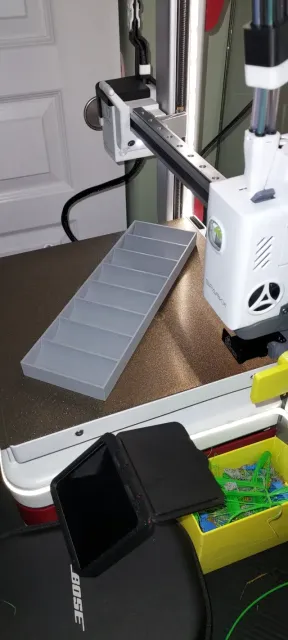

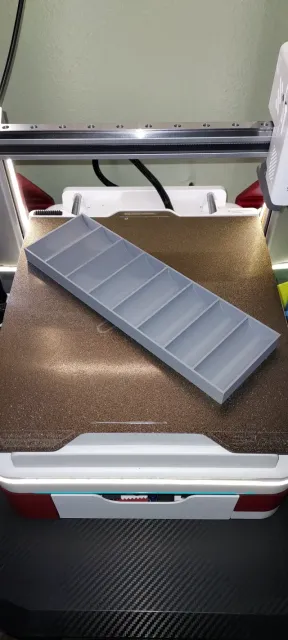

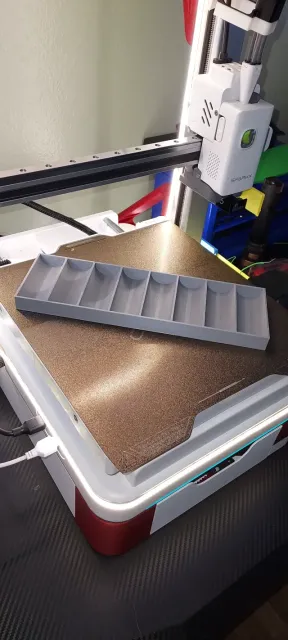

Tool Ratchet Socket Tray Organizer

Interior dimensions are: 80mm x 258mm x 17mm with a 30mm wide socket bed

3D Printable Horizontal Ratchet Socket Tray Organizer A clean, minimalist, low-profile socket tray designed to keep your toolbox drawers perfectly organized. This model focuses strictly on utility—eliminating bulky handles, complex lids, or latching mechanisms. Instead, it provides a solid horizontal layout with integrated semi-circular cradle troughs to keep your sockets secured and perfectly lined up.

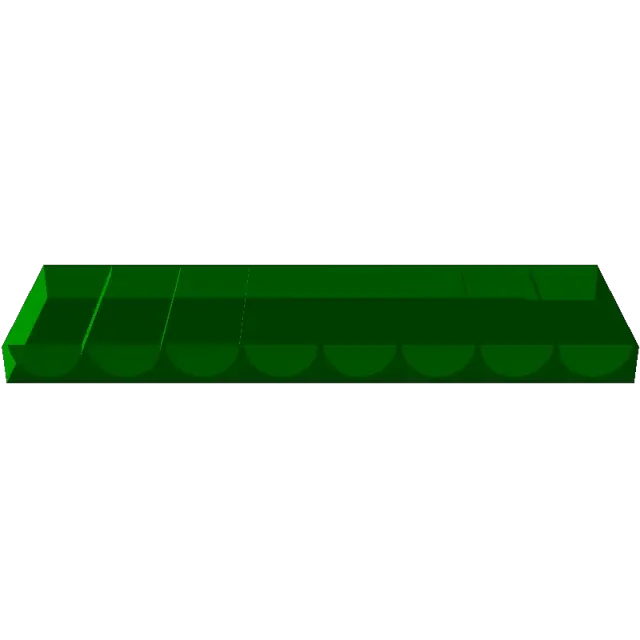

Project Features Perfect Footprint: Exactly 250mm in length, making it a great fit for standard tool chest drawers. Low-Profile Structure: Simple, thin outer side walls standing no higher than 20mm to save material and vertical clearance. Horizontal Cradles: Features 8 parallel, side-by-side semi-circular cradle troughs carved directly into the bed. Optimized Capacity: Built to comfortably cradle horizontal sockets with a maximum radius of 15mm and lengths up to 80mm, evenly spaced across the tray bed.

Slicing & Printing Recommendations Slicer Setup: Optimized for Creality Print and similar modern engines. Material: Standard PLA works beautifully for general garage or workshop storage. Grid Interference Prevention: To avoid nozzle damage when running into previous grid paths on fast layers, consider decreasing your printing speed slightly during infill sequences, or utilize Gyroid / Cross Hatch infills to prevent crossing lines on the same layer. Plate Optimization: If printing multiple components or versions, use the "Print individual object first" (sequential printing) setting in your slicer to ensure clean, isolated print completions on a single build plate.
