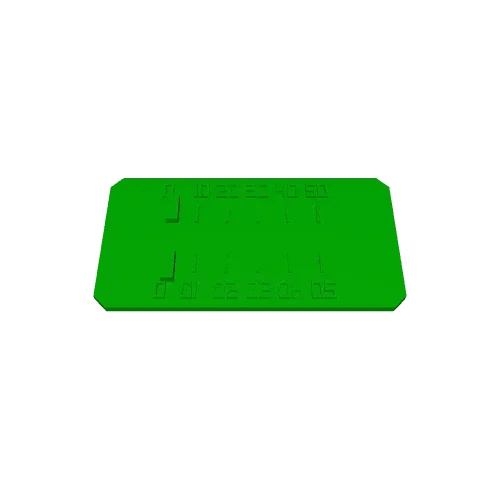

BoltStep is a compact one-piece bench gauge for comparing the under-head length of ordinary bolts and machine screws. Put the underside of the fastener head against the two raised datum ears, keep the shank in the clear center lane, and compare the tip with the paired 10, 20, 30, 40, or 50 mm marks. It is meant for quick workshop sorting and identification when a ruler is inconvenient.

How the datum works

The functional datum is the left face of both raised ears at X=20 mm. The ears sit on opposite sides of a 12 mm wide center lane, so a fastener shank can pass between them without meeting a raised scale mark. The paired tick centers are placed exactly 10, 20, 30, 40, and 50 mm from that datum plane. Rest the underside of the head against both ears rather than placing the outer top of the head at zero.

Two viewing directions

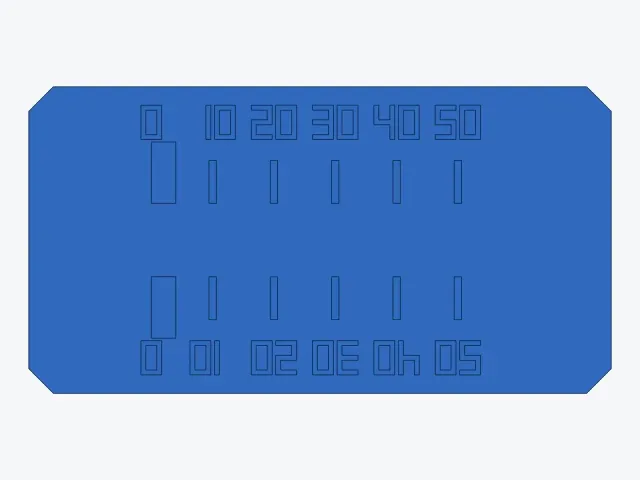

The numeric scale is duplicated along both long edges. One row reads from the first side and the other is rotated 180 degrees for reading from the opposite side. This is intentional. Turn the gauge or approach it from either edge and the nearest 0, 10, 20, 30, 40, 50 sequence is upright. The opposing row can look reversed when viewed from the other direction.

Dimensions and geometry

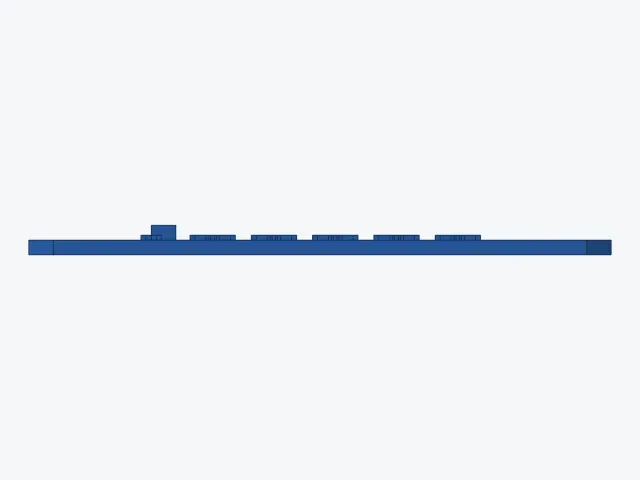

- Overall size: 95 x 50 x 4.8 mm

- Base thickness: 2.4 mm

- Raised scale height: 3.2 mm overall

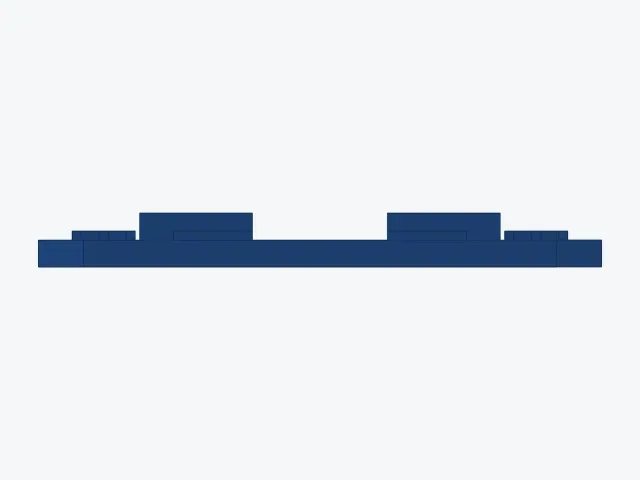

- Datum ear height: 4.8 mm overall

- Clear center lane: 12 mm wide from X=20 to X=75 mm

- Datum plane: X=20 mm

- Tick centers: 30, 40, 50, 60, and 70 mm in model coordinates

- Measured lengths from datum: 10, 20, 30, 40, and 50 mm

- One connected closed solid with a full planar underside

Use

- Lay the gauge flat on a stable surface.

- Place the bolt or screw shank in the center lane.

- Slide the underside of the head against both datum ears.

- Read the nearest paired mark at the fastener tip.

- Use calipers or a ruler when the exact length falls between the five nominal marks.

BoltStep is a comparison aid, not a calibrated metrology instrument. Printer scale, first-layer expansion, extrusion width, material shrinkage, and worn fastener ends can affect the practical reading. Check printer dimensional accuracy before relying on the marks for a tight mechanical specification.
