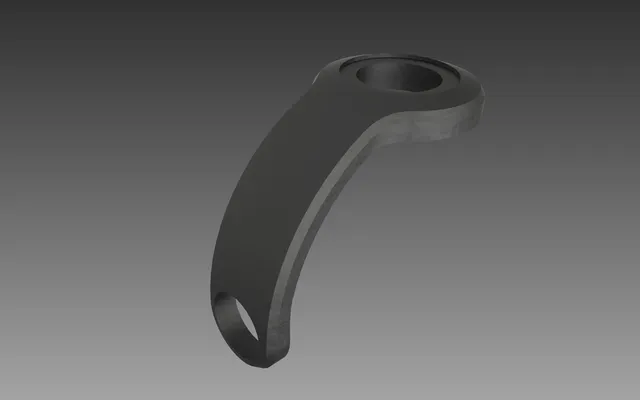

Annotation Practice - Outer Ring — Image 2 of 3
Annotation Practice - Outer Ring — Image 3 of 3
3D model · GrabCAD

Annotation Practice - Outer Ring

Model details

Platform
GrabCAD
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
PDFSTPDWGIPT
  • 4 Likes
  • 68 Downloads
  • 0 Comments

Author:Alan

Published

Download on GrabCAD

Description

I'm attempting to annotate this part I made for another GC Project a few months back. Included is a partially annotated, but (probably) not fully annotated drawing and source .ipt file. If you want a challenge, see if you can fully annotate this part. There are no class A surfaces or anything else impossible to annotate, it's all geometric primitives and some G1 fillets.

Made in Educational Version of Inventor 2017.

Tags

stepinventordrawingpracticecouplingringotherstep / igesautocadautodesk inventorrendering
