E2 micro e-chains – small and lightweight e-chains
Model details
- Platform
GrabCAD
- Price
- Free
- License
- see the platform page
- The author sets the terms — check them on the model page before printing for sale.
- Formats
- STLSTP
- 41 Likes
- 1 791 Downloads
- 4 Comments
Description

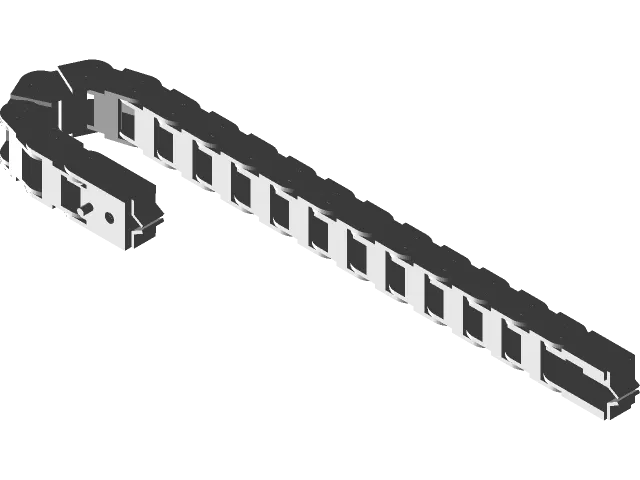

A range of interior sizes available from 5x5mm up to 15x50mm Bend radii from 10mm to 48mm Example model 03.07.012.0 with mounting brackets fitted For more information see http://www.igus.co.uk/wpck/default.aspx?pagenr=1767&wt.mc_id=grabcad
