End Cap for 30x30x2 mm Square Tube

TPU Foot / End Cap for 30×30×2 mm Square Tube

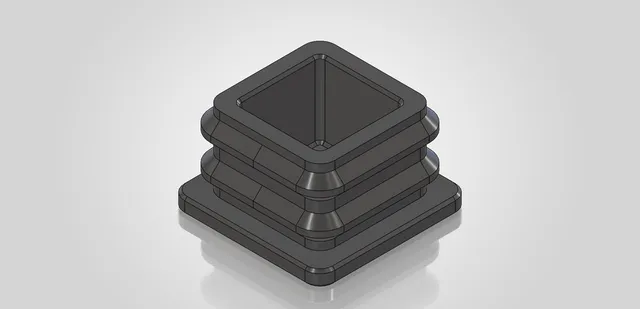

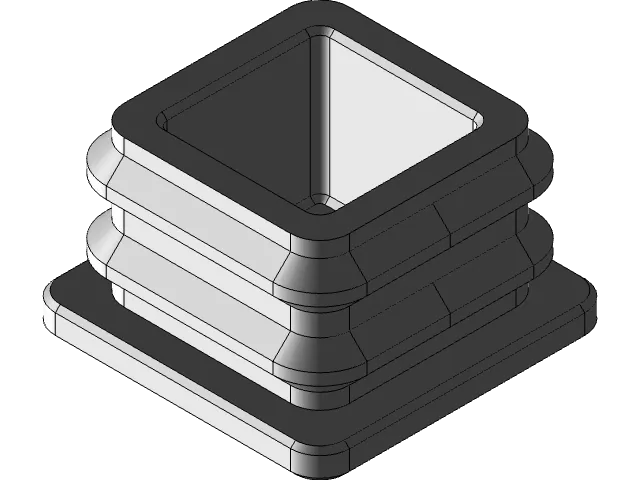

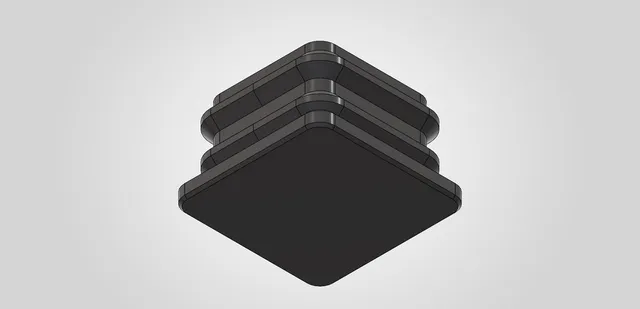

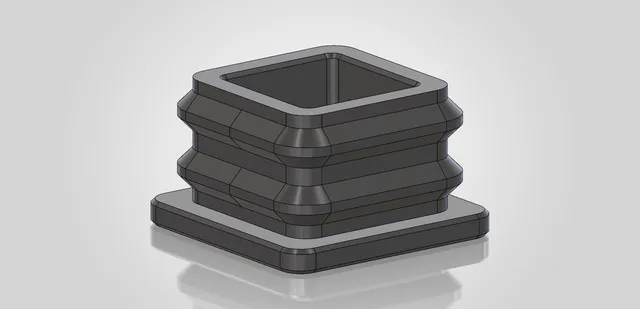

3D-printable foot/end cap designed to fit a 30×30×2 mm square metal tube.

The component was modeled in SOLIDWORKS 2026 and is intended to be used as an end cap and protective foot for structures manufactured from square steel tubing.

The part is designed to be printed in TPU 95A, providing enough flexibility for insertion into the tube while also creating a suitable contact surface.

SPECIFICATIONS

Square tube: 30 × 30 × 2 mm Nominal internal tube size: 26 × 26 mm Material used: TPU 95A Manufacturing process: FDM/FFF 3D printing Printer used: Bambu Lab CAD software: SOLIDWORKS 2026 CAD format: STEP

APPLICATIONS

Suitable as an end cap or foot for:

square tube frames; carts and trolleys; fabricated metal structures; supports; workbenches and equipment; structures made from 30×30×2 mm square tubing.

NOTES

The model was specifically designed for 30×30 mm square tubing with a 2 mm wall thickness.

Actual fit may vary slightly depending on tube manufacturing tolerances, filament properties and 3D-printing parameters.

The part has been used with TPU 95A.
