Folding Engine Crane

Model details

Platform
GrabCAD
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
X_TIGSSTEPSTL
  • 925 Likes
  • 12 370 Downloads
  • 101 Comments

Author:Ersin

Published

Download on GrabCAD

Description

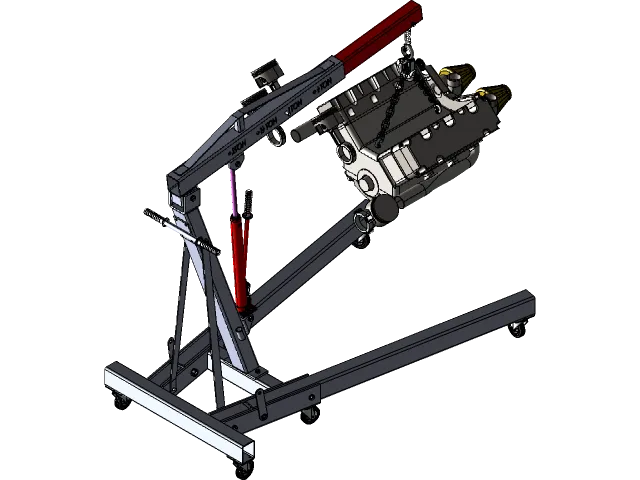

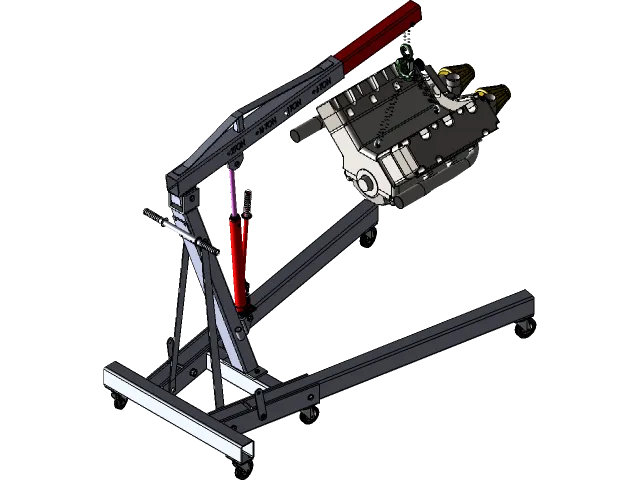

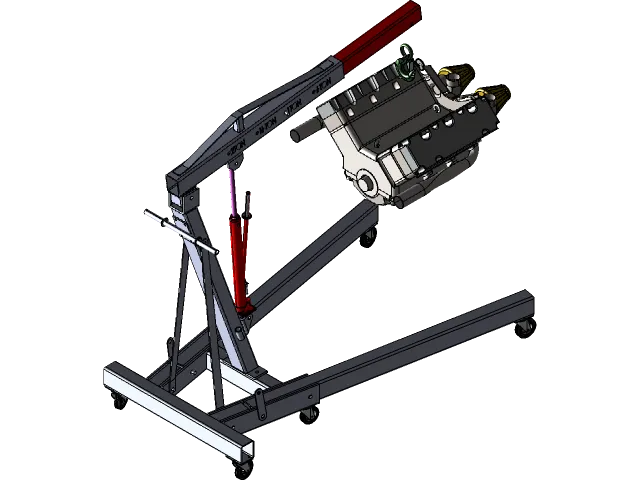

Professional folding crane with 2 tons lifting capacity.Both standard and special profiles are used in the chassis.This product is mainly used for automobile repair and mold lifting.

Max height: 2150 mm Total weight: 135 kg

V6 car engine source: https://grabcad.com/library/v6-engine-30/details?folder_id=2293319
