G6 Metal Robot Arm Gripper Kit

Platform: GrabCAD
Price: Free
License: see the platform page; The author sets the terms — check them on the model page before printing for sale.
Formats: STEPSLDASMSLDPRT

8 Likes
200 Downloads
0 Comments

Author:Shahriar Adnan Adib

Published 2026-07-19

Download on

GrabCAD

Description

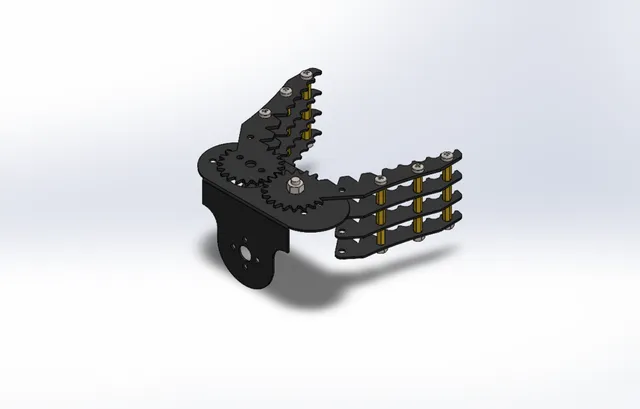

G6 Metal Robot Arm Gripper Kit for robotics and automation applications. This CAD assembly is based on a compact aluminum alloy mechanical gripper designed for robot arms, educational projects, and pick-and-place systems.

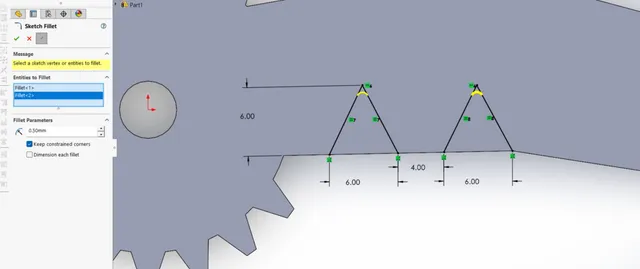

The model features a double-sided toothed jaw mechanism for improved gripping performance and is designed for use with standard high-torque servos such as the MG996R or MG995 using a 25T servo horn. Mounting holes are included for easy integration with custom robotic manipulators and mobile robot platforms.

Specifications Maximum Jaw Opening: 86 mm Closed Length: 83 mm Maximum Width (Open): 150 mm Compatible Servo: MG996R / MG995 Material: Aluminum Alloy Drive: 25T Servo Horn
