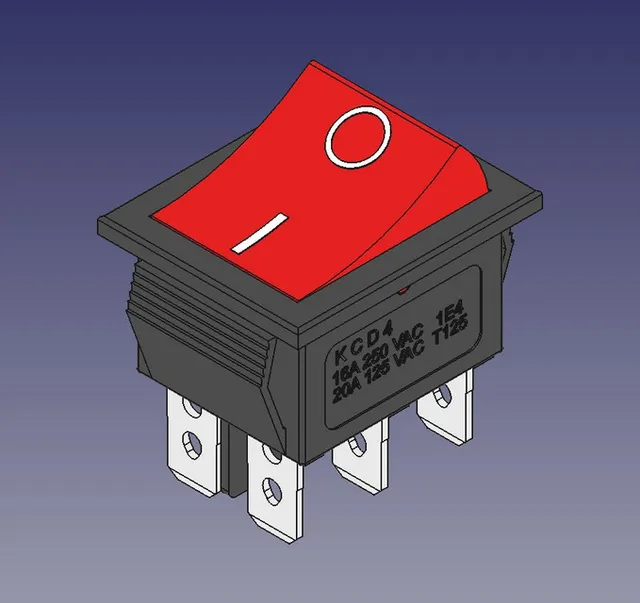

KCD4 rocker switch 30x25mm panel opening 28x22 — Image 2 of 6

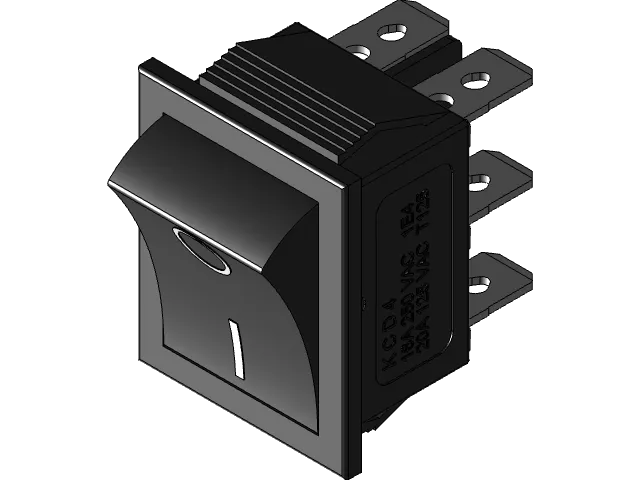

KCD4 rocker switch 30x25mm panel opening 28x22 — Image 3 of 6

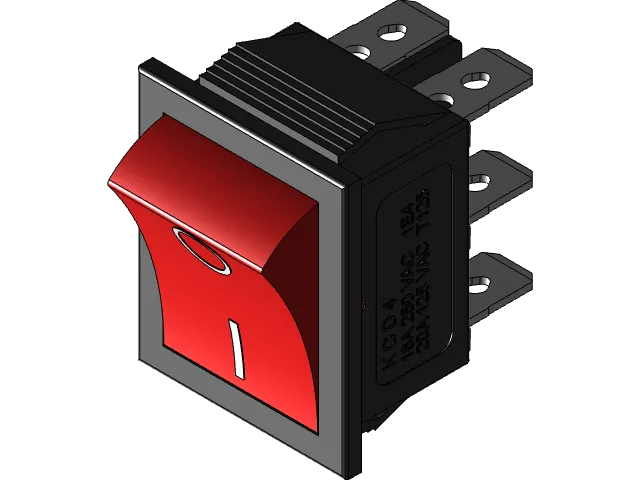

KCD4 rocker switch 30x25mm panel opening 28x22 — Image 4 of 6
KCD4 rocker switch 30x25mm panel opening 28x22 — Image 5 of 6

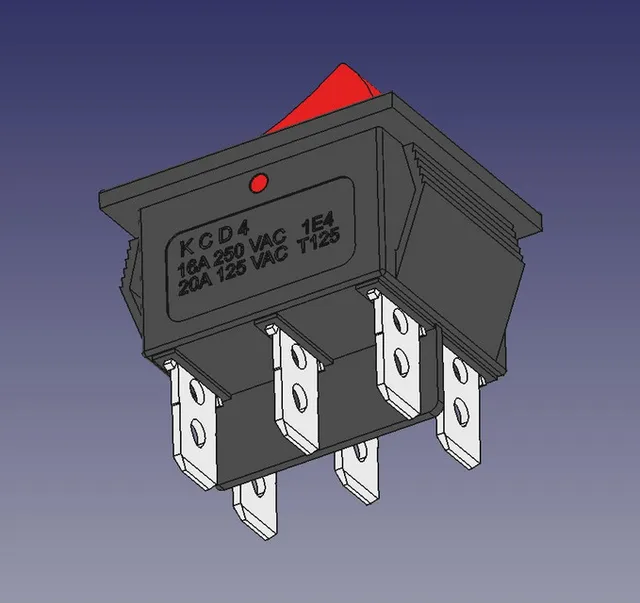

KCD4 rocker switch 30x25mm panel opening 28x22 — Image 6 of 6
3D model · GrabCAD

KCD4 rocker switch 30x25mm panel opening 28x22

Model details

Platform
GrabCAD
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
STEP
  • 14 Likes
  • 511 Downloads
  • 0 Comments

Author:PENNEL Patrice

Published

Download on GrabCAD

Description

Standard KCD4 Rocker Switch (DPST / DPDT accurate model).

This is a high-accuracy 3D model of the widely used industrial KCD4 rocker switch, perfect for integrating into your enclosures, front panels, or power supply designs.

The model includes detailed geometry for the outer lip, the snap-in retention clips, and the standard 6.3 mm Faston / Quick-Connect terminals at the back.

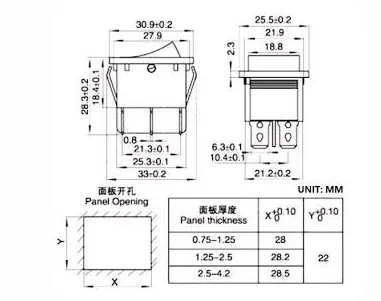

Modeled from a real switch : 31.10 x 25.5 mm, see tolerance in drawing.

Tags

63 mm fastonrocker switch30x25kcd4step / igesrendering
