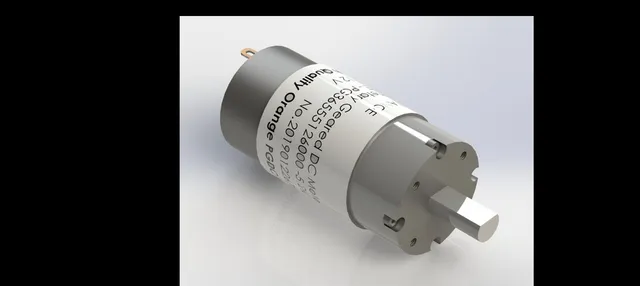

Orange Planetary Gear DC Motor 12V 970 RPM 14.5 N-cm PG36M555-5.2K

This is a 12V DC planetary motor which has a gearbox of 35 mm diameter. The planetary type gearbox of this motor has a 5.2: 1 reduction ratio which produces 971 RPM with the torque value of around 14.5 N-cm.

Model PG36M555-5.2K

Motor Type DC Carbon Brush Motor

Gear Ratio 5.2 : 1

Operating Voltage (VDC) 12

Rated Current(A) 2.22

Rated Power (W) 26.79

Rated Base Motor RPM 6000

Rated Speed (RPM) 970

Rated Torque (N-cm) 14.5

Operating Temperature (°C) -40 to 100

Opt. Relative Humidity(RH) 20% ～ 85%

Gear Material Powder Metallurgy, Steel, POM

Housing Material Metal

Motor Body Size (Diameter) (mm) 39

Motor Length (mm) 84

Shaft Diameter (mm) 8

Shaft Length (mm) 20

Shaft Type D-type

Motor Weight(gm) 380

Shipment Weight 0.475 kg

Shipment Dimensions 14 × 5 × 5 cm
