Prusa style 3D Printer V1.3 NEW

Hey,

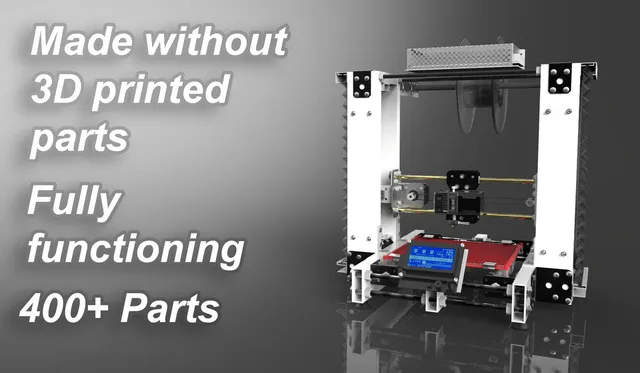

This educational DIY 3D printer uses no 3D printed, CNC milled or laser cut parts. The reason for making a 3D printer with less machining is to lower the costs. This 3D printer is based on a Prusa i3 style, which is a proven design with tens of thousands users and great for educational purposes.

-------------------------------------------------------------------------------------------------------------------

Specification :

Build dimensions : 180x180x170 ( slightly larger volume is expected on next update )

Y and X axis are belt driven, while Z axis is driven by 2 NEMA 17 motors coupled with lead screw rod.

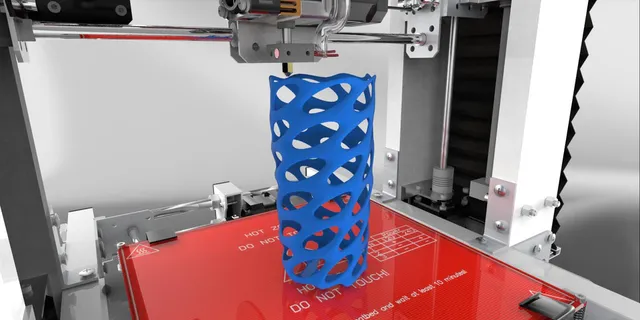

LM8UU linear bearings MK1 Heated bed MK8 extruder (1.75 filament, 0.2mm nozzle)

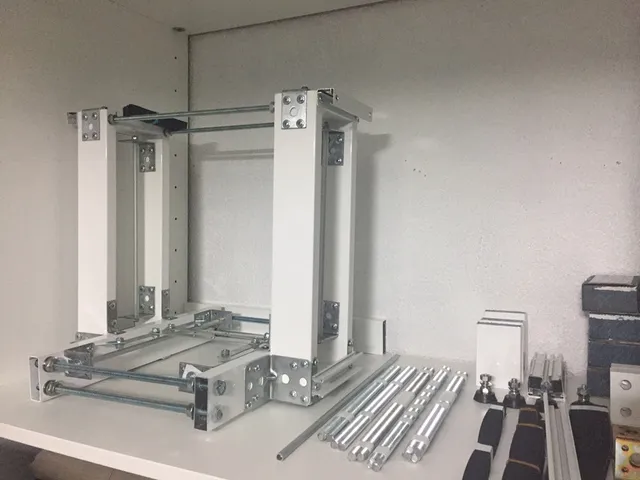

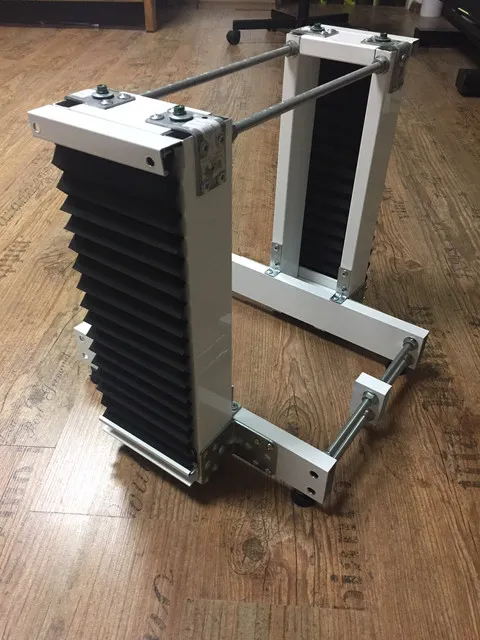

Mostly consist of corner brackets that are available to purchase at most stores around globe.

Light and Rigid !!

------------------------------------------------------------------------------------

BOM - coming soon

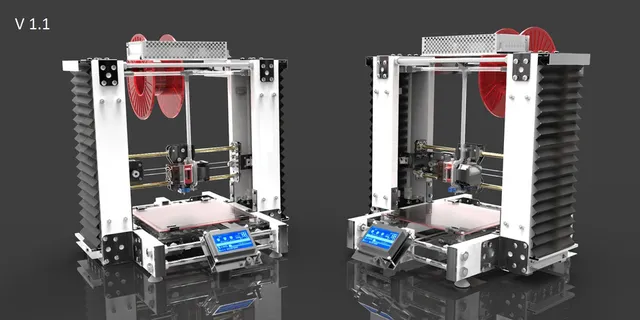

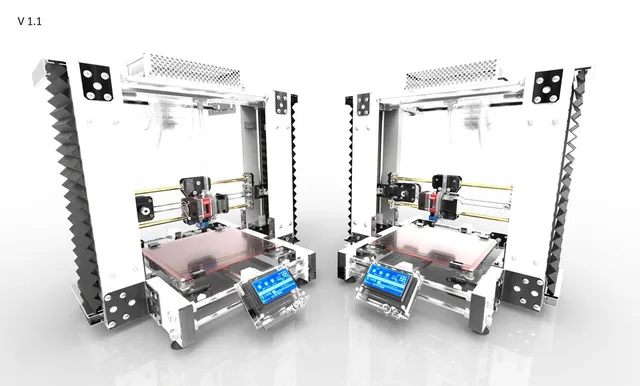

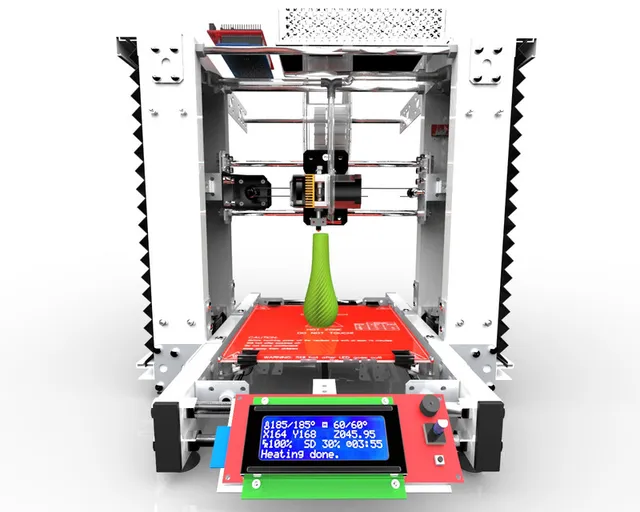

Version 1.1 (20.2.2017) - (cooling system and optimization, new LCD position ) Version 1.2 (24.2.2017) - ( 2004 LCD display, RAMPS, Arduino MEGA) Version 1.3 (28.2.2017) - (optimization and paying attention on small details)

for now only STP and CATIA V5 files available --------------------------------------------------------------------------------------------------------

If u need more information on this project or any other fell free to leave a comment or send me a private message.

work time: 200+ hours

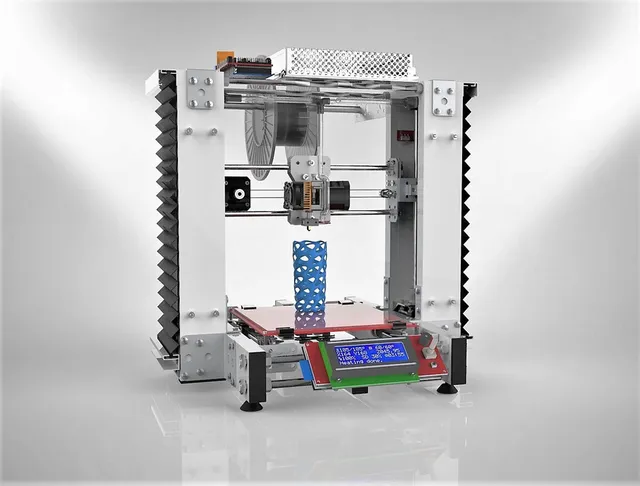

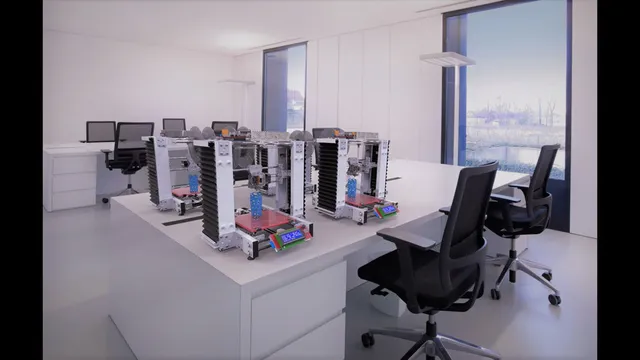

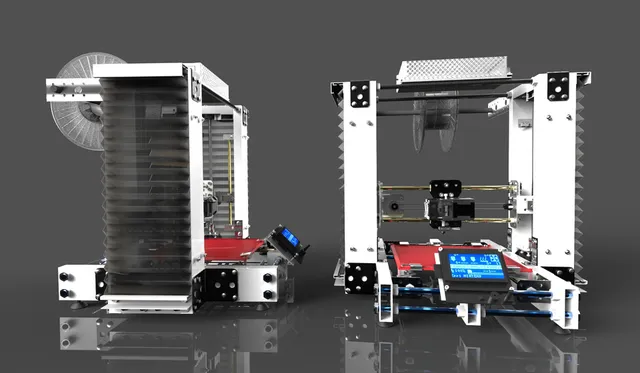

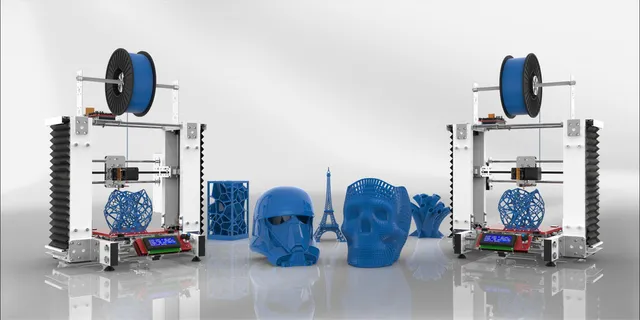

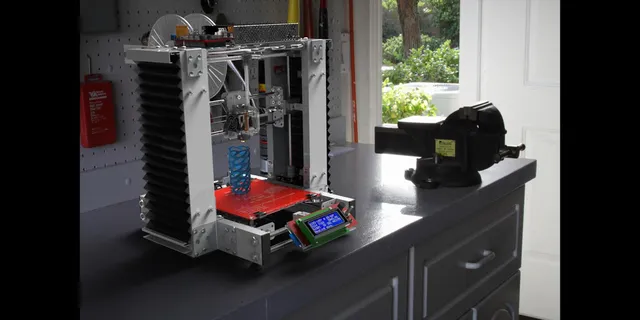

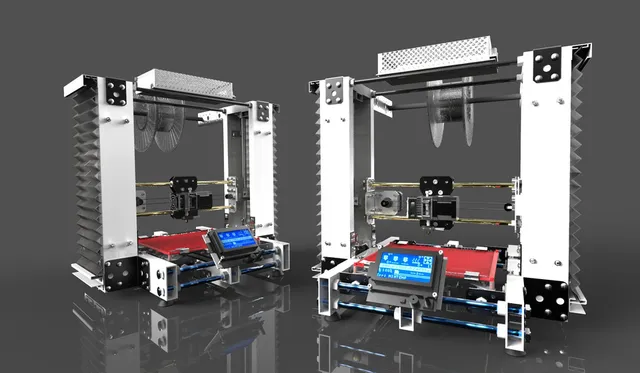

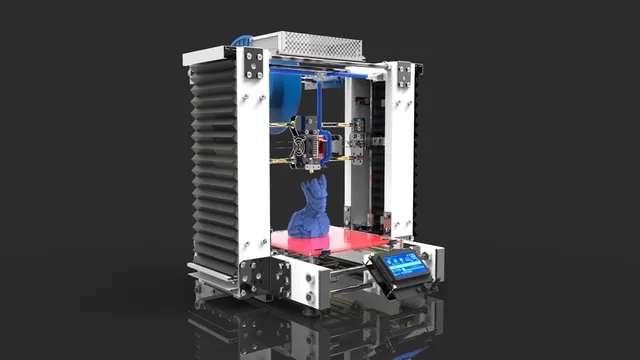

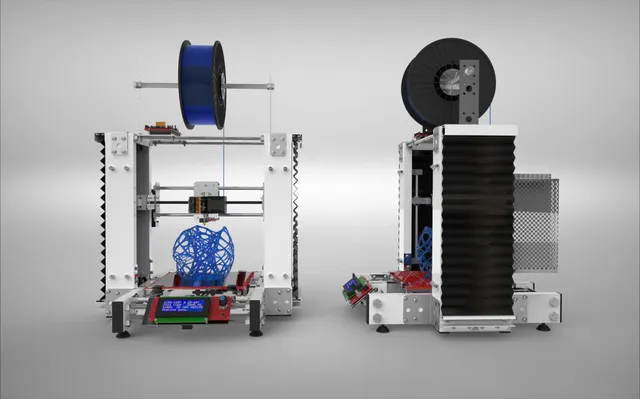

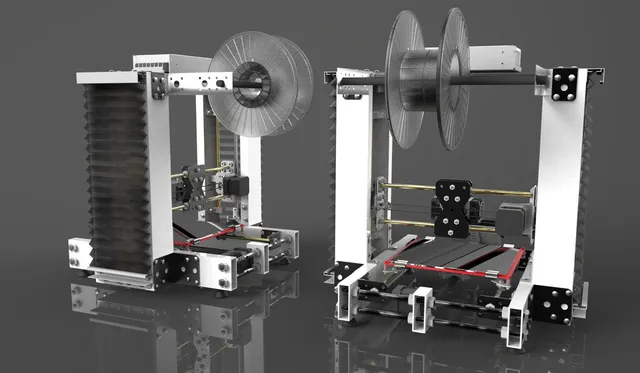

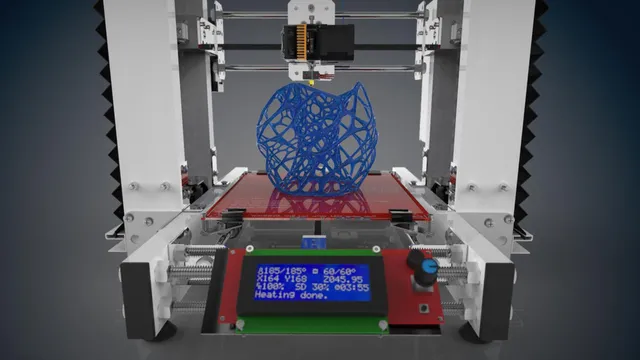

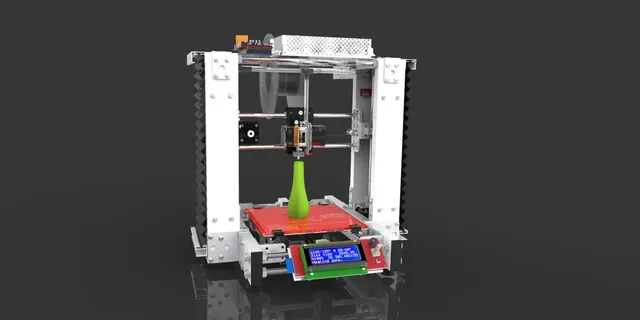

Renderings are made in keyshot

Thanks !
