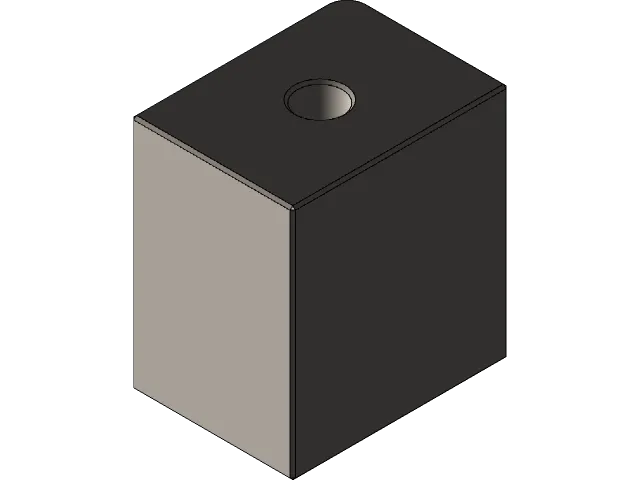

Right Angle Clamp — Image 4 of 10
Right Angle Clamp — Image 5 of 10
Right Angle Clamp — Image 6 of 10
Right Angle Clamp — Image 7 of 10
Right Angle Clamp — Image 8 of 10
Right Angle Clamp — Image 9 of 10
Right Angle Clamp — Image 10 of 10
3D model · GrabCAD

Right Angle Clamp

Model details

Platform
GrabCAD
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
SLDASMSLDPRT
  • 38 Likes
  • 730 Downloads
  • 2 Comments

Author:Emin Güzel

Published

Download on GrabCAD

Description

This is a clamp that holds rectangular or square profile tubes at right angle. Since I'm a noob at welding, it seemed a tool like this could make learning process a little easier. It can accept material that is up to 60mm in width. Assembly is fully functional, all movement constraints are defined. I essentially copied the idea from a YouTube video by "TheDacchio" and modeled it to suit my needs. The link to the video is below.

Bu kare veya dikdörtgen profilleri dik açıyla tutmaya yarayan bir işkence/mengene. Kaynak konusunda tecrübesiz olduğumdan, bu türden bir alet öğrenmemi kolaylaştıracak gibi geldi. 60mm genişliğe kadar olan profilleri tutacak şekilde çizdim. Montaj çalışıyor, hareket kısıtları tanımlanmış halde. Tasarımı YouTube'da izlediğim "TheDacchio" adında bir kullanıcının videosundan kopyaladım, kendi ihtiyacıma uygun şekilde ölçülendirerek yeniden modelledim. Videonun bağlantısı aşağıdadır.

https://www.youtube.com/watch?v=nohhCzGaBy0

Tags

90jigfixtureanglerightclampweldingsolidworks
