Tripod 1/4-20 1.6mm Flat Board Mount

Model details

Platform
GrabCAD
Price
Free
License
see the platform page
The author sets the terms — check them on the model page before printing for sale.
Formats
STEPSTL
  • 2 Likes
  • 57 Downloads
  • 0 Comments

Author:OpenMV, LLC

Published

Download on GrabCAD

Description

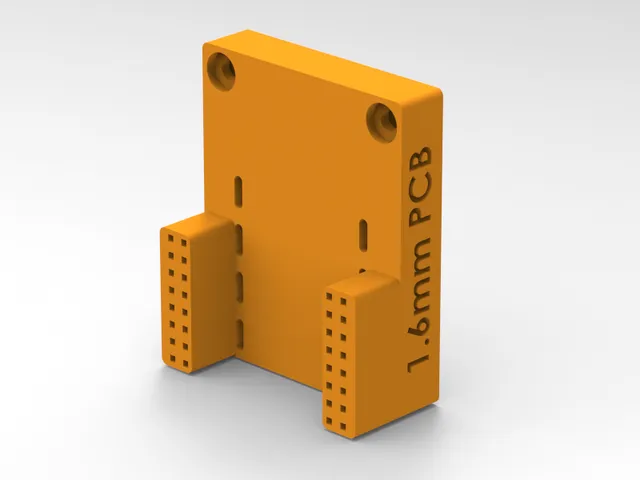

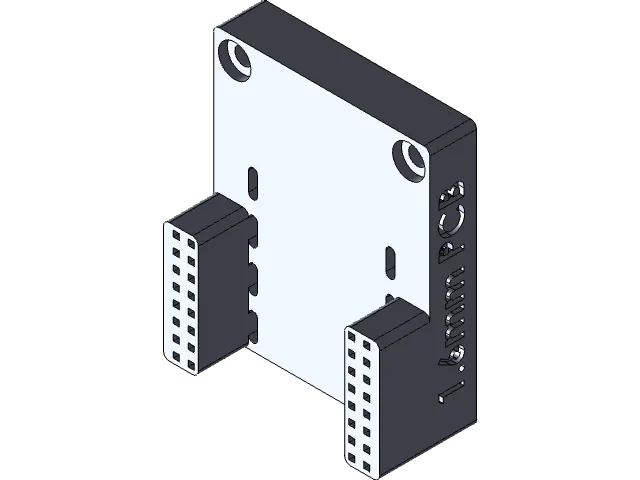

This 3D Printable Model lets you mount your OpenMV Cam to a tripod 1/4-20 screw mount. It also features a flat plane for you to attach a battery if you choose via double sided tape or via zip ties.

Use this board with M2.5 12mm spacers and a 1.6mm thick OpenMV Cam board. E.g. our dual 1x8 pin designs or full board length shields.

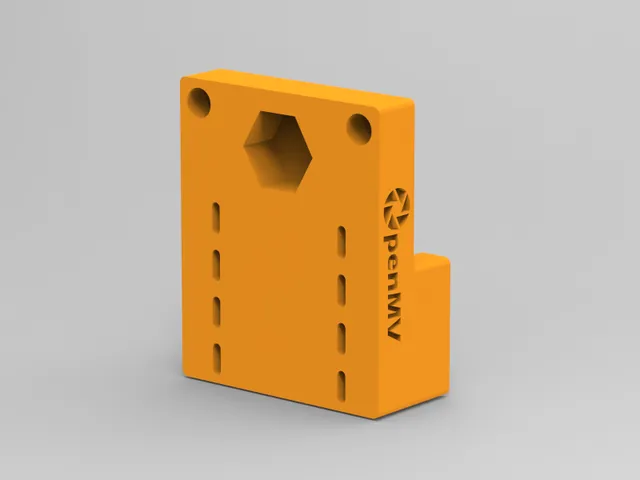

You will need a 1/4-20 hex nut which you can press fit into the back of the case for the 1/4-20 tripod mount.
