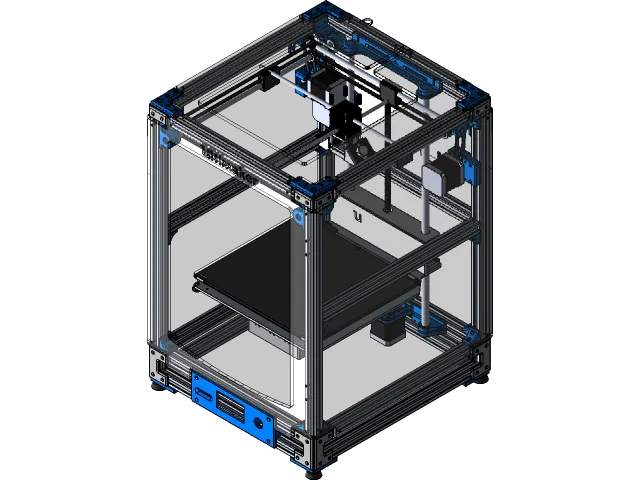

Ultimaker 2 Extended Aluminum Extrusion Clone

Disclaimer: The "Ultimaker 2 Extended Aluminum Extrusion Clone" is based on the "Ultimaker 2 Aluminum Extrusion 3D printer" which is designed by a software architect named Jason from Austin, Texas,also known as jasonatepaint in the Thingiverse community.

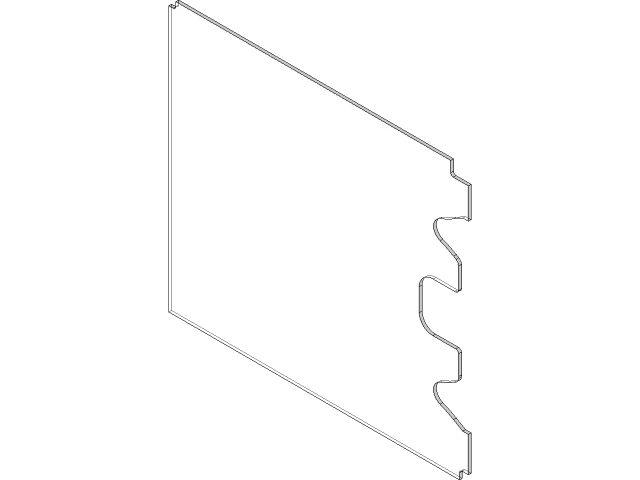

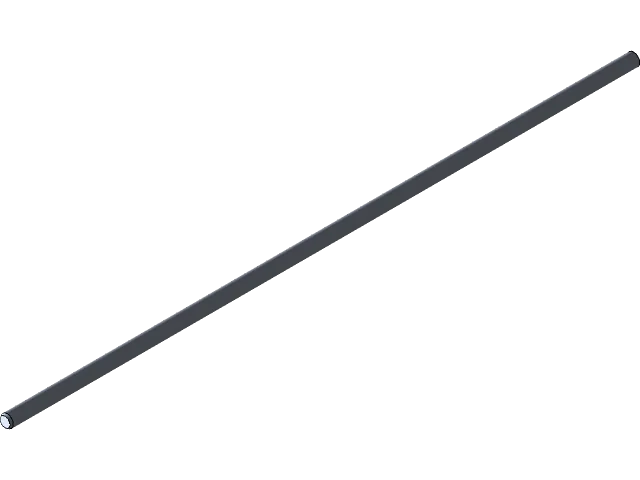

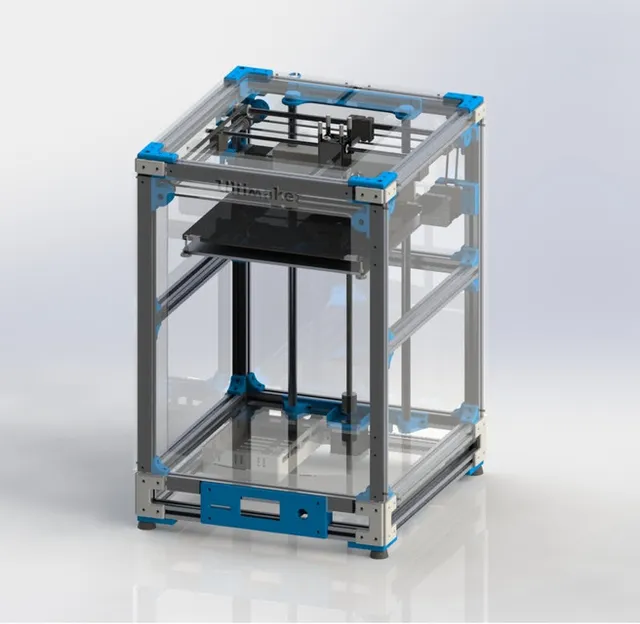

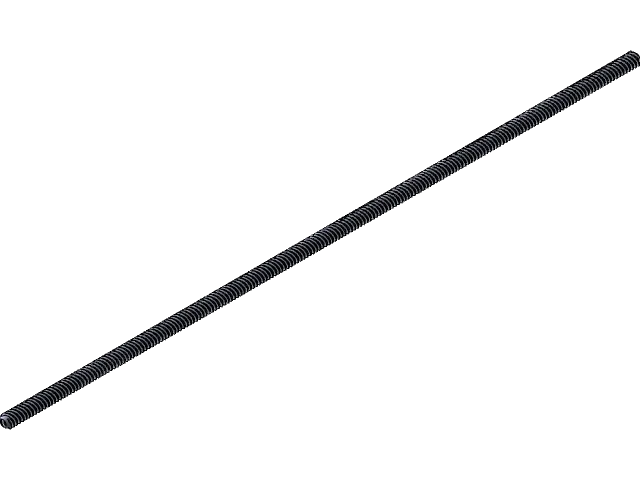

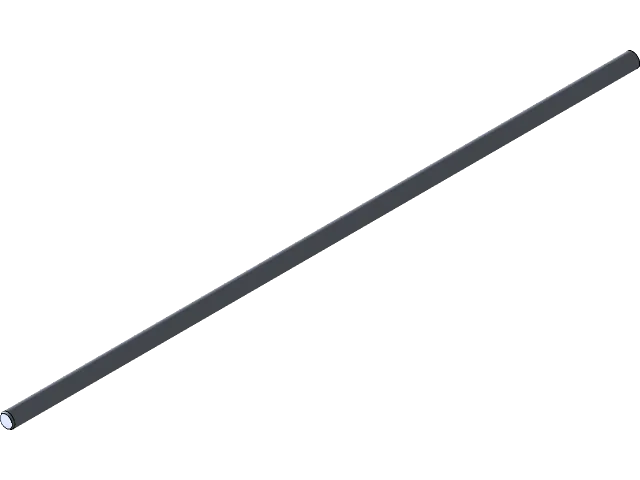

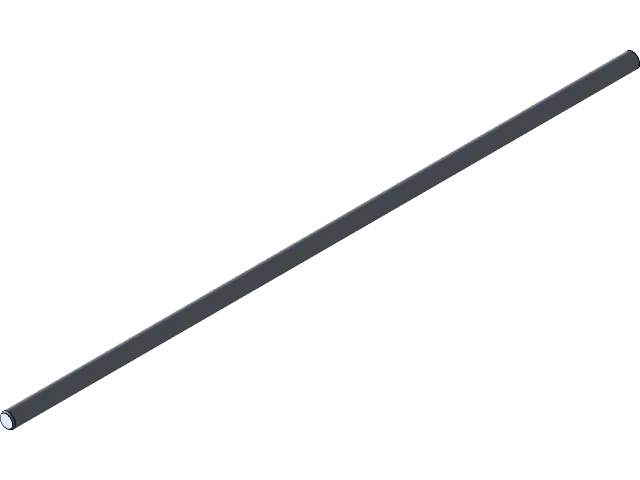

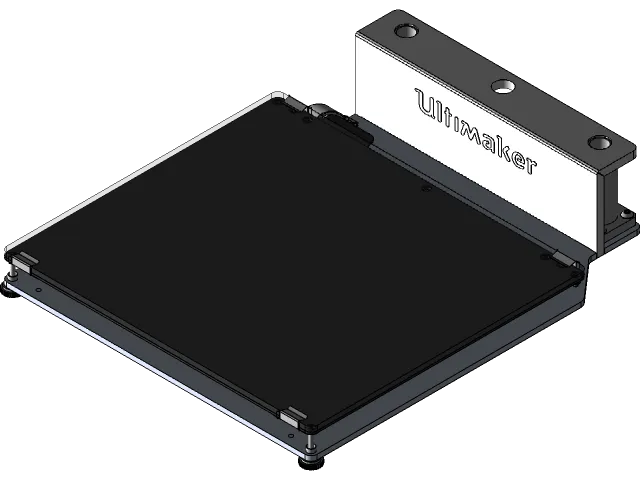

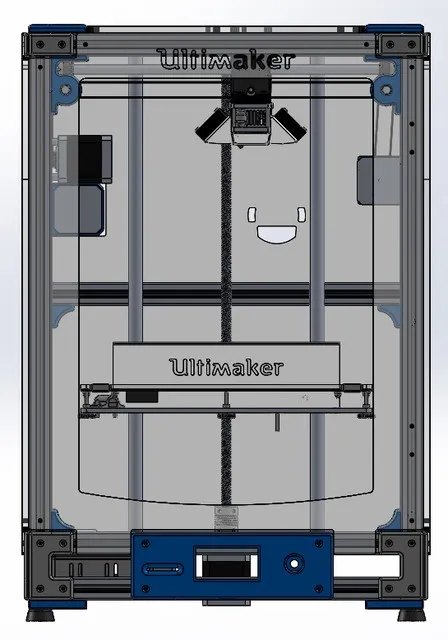

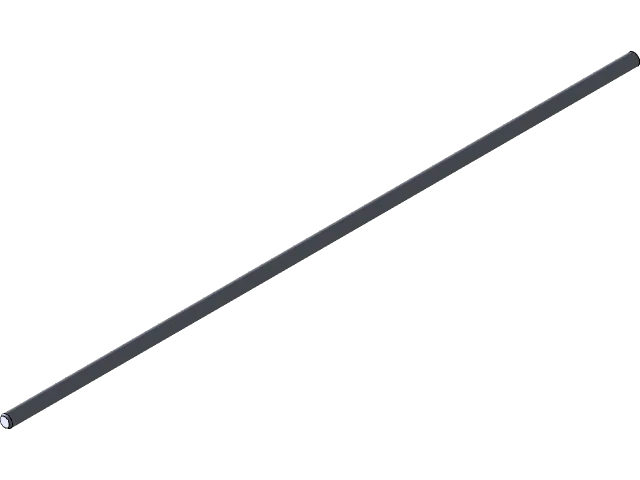

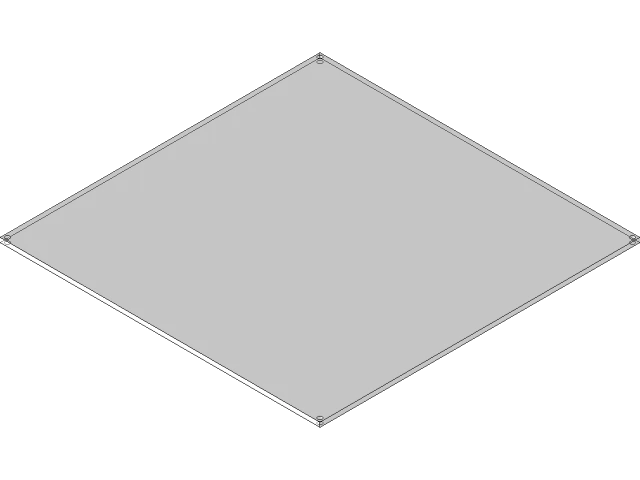

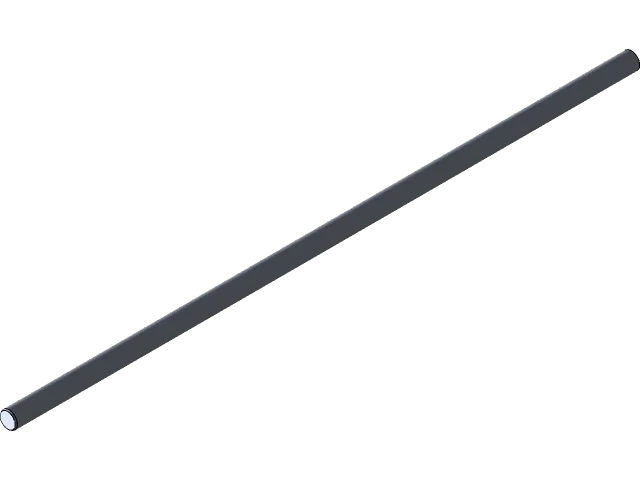

Basically the extended version provides more space on the z axis (100mm). Dimensions of the heated bed are the same as Ultimaker 2 but with the extended version you can built taller objects. So i changed the dimensions of the vertical aluminium extrusions, rods and acrylic panels. The lead screw is 100mm bigger (400mm length). Finally i added three horizontal pieces of aluminum extrusions to make the constructrion more sturdy (these may not be needed on the real construction-its on you to decide).

For more information about the project click on the links below: http://www.thingiverse.com/thing:811271 https://www.youmagine.com/designs/ultimaker-2-aluminum-extrusion-3d-printer http://3dprint.com/66742/ultimaker-2-aluminum-extrusion/

Solidworks Assembly of the Ultimaker 2 Aluminum Extrusion 3D printer: https://grabcad.com/library/ultimaker-2-aluminum-extrusion-3d-printer-1

Ultimaker 2 Clone BOM: https://docs.google.com/spreadsheets/d/1oL7RYvvKJJkxDS52M6GQemwey3ny0b3jYZnxLergKKQ/edit#gid=1232376438

Ultimaker 2 Clone Build Instructions: https://docs.google.com/document/d/1iZN1Qa6s9Yto3foaHEdEPrx-5QusVKVUGyTJ6U6o7BY/edit

If you 'd like to purchase the 3d printed parts of the Ultimaker 2 Extended Aluminum Extrusion Clone and for more 3d printing services please send me a message or visit my etsy webpage: https://www.etsy.com/shop/3DPrintingExpert
