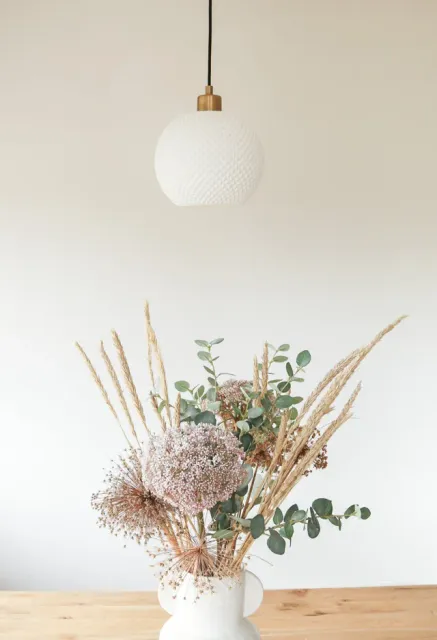

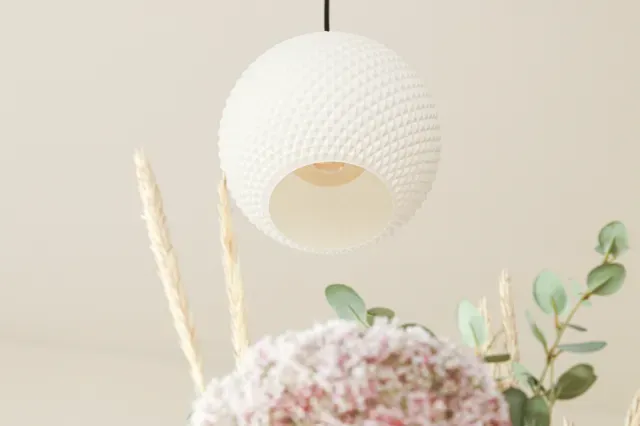

Lamp Shade 5.0

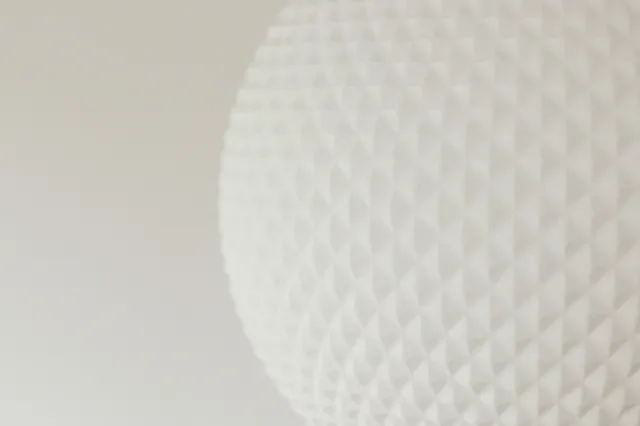

Minimal lamp shade with diamond pattern.

Print in spiral vase mode.

0,2 mm Layer height

0.6 mm Layer thickness

Time ~ 3,5 hours ( in standart size)

The hole in the file is for a typical 40 mm threat (E27 light bulb). You can adjust the whole size to whatever size you need. Go under objects and scale the generic cylinder to whatever size you need. The lamp shade itself can be scaled aswell.

Please be careful when removing it from the print bed. The shade only has a whallthickness of 0,6 mm. Especially the first layer after the 7 bottom layers is fragile. I would recommend to go with a scraper under the bottom layer.

If you really want a highquality lampshade i would recommend to print with a 0.8 mm nozzle, 1.1 mm outer wall, 0,24 mm layerheight. (Vasemode).

Enjoy!
