Organizer Box - Parametric Storage Bin

Parametric Organizer Box

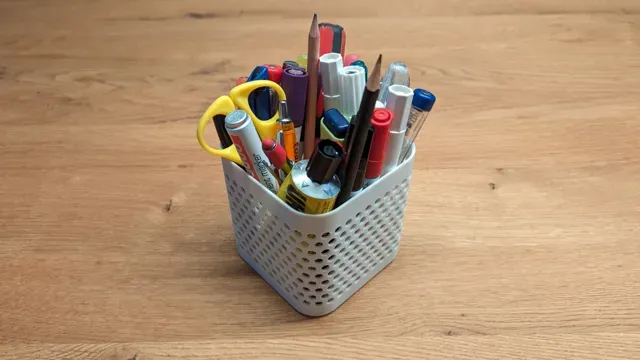

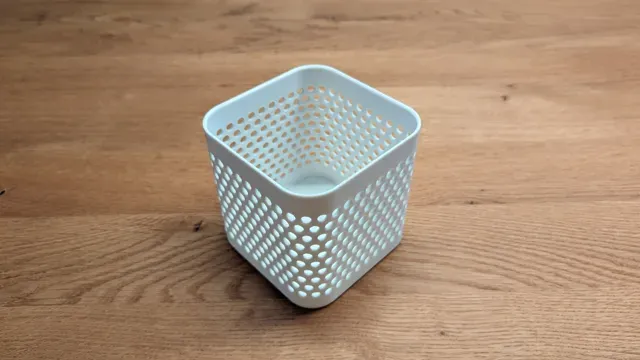

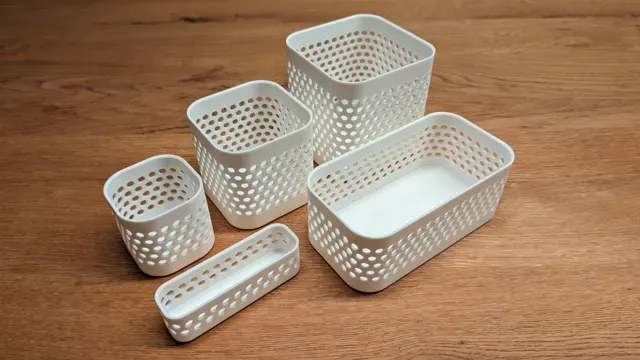

Customizable storage container for desk, office, drawer and shelf. Use the available print profiles if you want to have a specific size, if you are more into tinkering fetch the Fusion 360 file and enjoy all the customizable parameters. The model is designed so that all punch holes are auto-calculated and evenly spaced. No need to fiddle around with manual settings, just define the basic parameters and watch the magic math 😊. Punchhole rows are auto-calculated and will center on the outer wall.

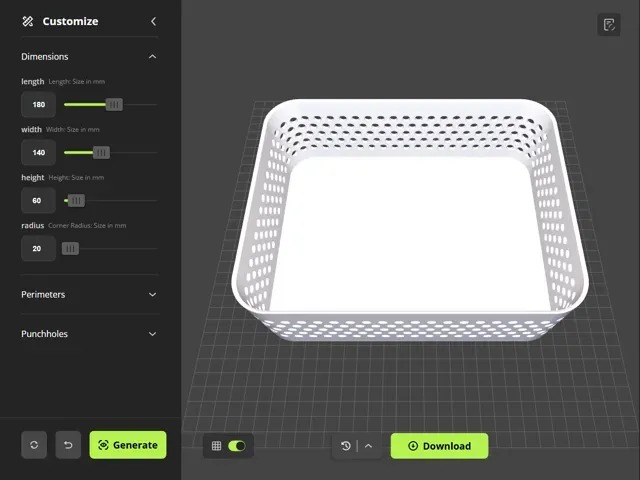

Parametric Model Maker

Fusion

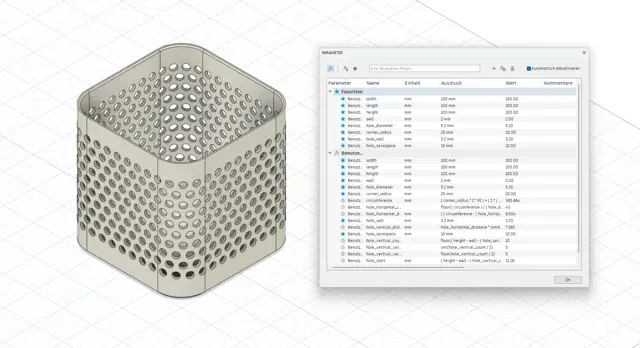

Customizable Parameters:

- Height - Width - Length - Wall thickness - Punchhole Diameter - Punchhole Spacing - Corner Radius - Save space on the top and bottom Customizing Tips:

- If you adjust the width and length, it can be helpful to adjust the corner radius before making changes. - If you adjust the corner radius, ensure that the desired size fits your desired width and length. - If you want to create a round object. please ensure the width and length are matching. Configure the corner radius to ½ - 0.01 of the width or the length. Example: You have a width of 80, set the corner radius to 39.99. Why another box model?

There are a lot of box models already available, but all I found were static,

or have features or design aspects that did not fit my needs.

I need a model flexible, that can easily adapt to any size I need - and also would be approved by my wife.

Maybe I also wanted to play around with repeating auto-calculating patterns in Fusion 360, okay okay - you got me.

Updates:

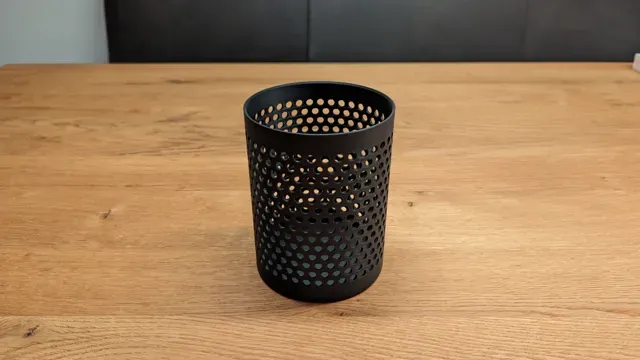

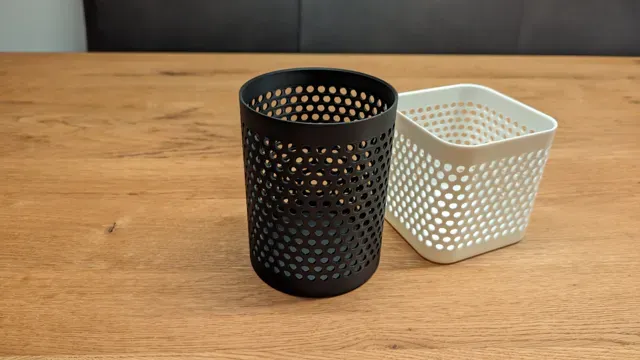

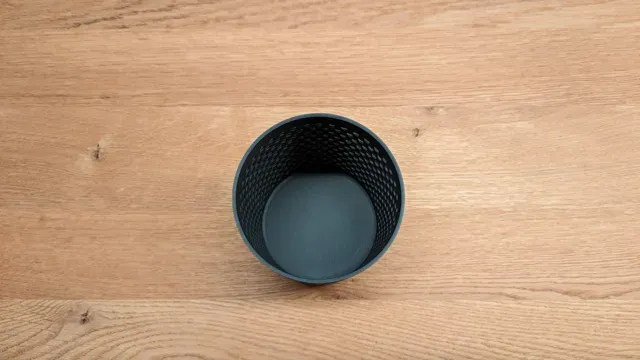

- 03.06.2025 - Added Parametric Model Maker support. - 30.06.2024 - Added 18x14x6cm https://makerworld.com/en/models/103266#profileId-434003 - Added 18x14x10cm https://makerworld.com/en/models/103266#profileId-434006 - 20.02.2024 - Added 20x10x6cm https://makerworld.com/en/models/103266#profileId-214791 - Added 10x10x6cm https://makerworld.com/en/models/103266#profileId-214795 - Added 15x10x6cm https://makerworld.com/en/models/103266#profileId-214801 - 01.01.2024 - Added 2 new cylindric versions - 10x10x13cm https://makerworld.com/de/models/103266#profileId-126695 - 8x8x10cm https://makerworld.com/de/models/103266#profileId-126713 - Changed extrusion for the holes in the Fusion 360 model - 24.12.2023 - Fixed baseplate calculation in the Fusion 360 model More Fusion 360 Parameterized Models

- Stackable Storage Bin https://makerworld.com/en/models/114250 - Organizer Box Diamond Edition https://makerworld.com/en/models/147775 - Modern Vase 1 https://makerworld.com/en/models/108166 - Under Desk Drawer https://makerworld.com/en/models/145324
