Activated Carbon Filter for Adventurer 5M Pro

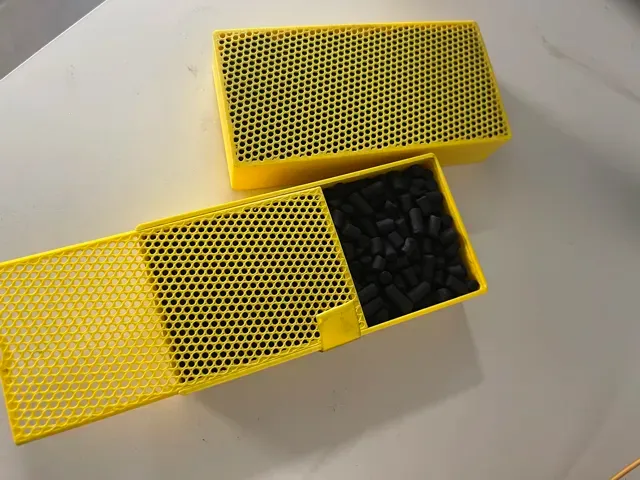

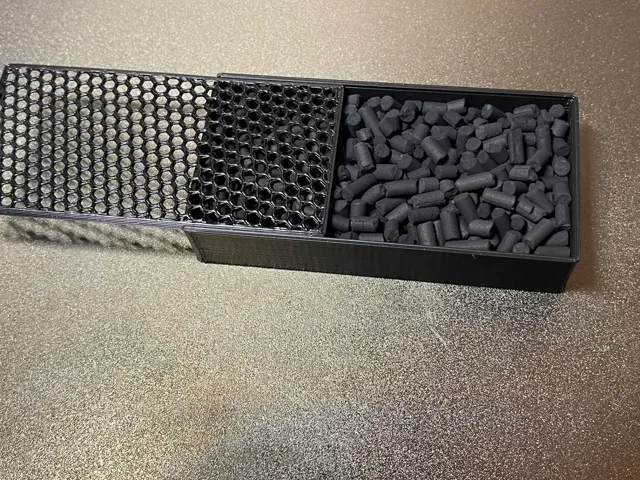

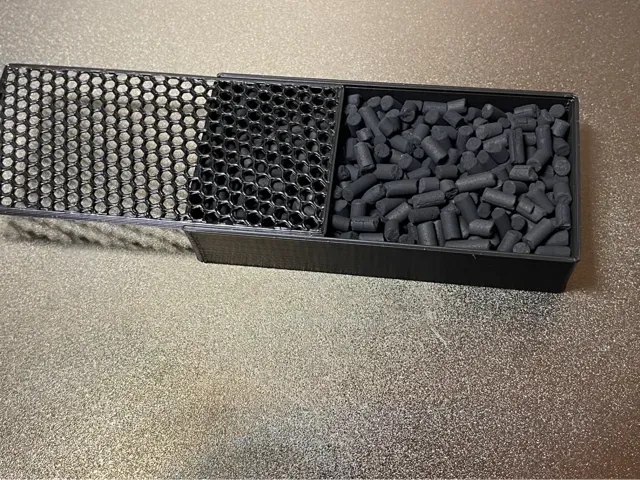

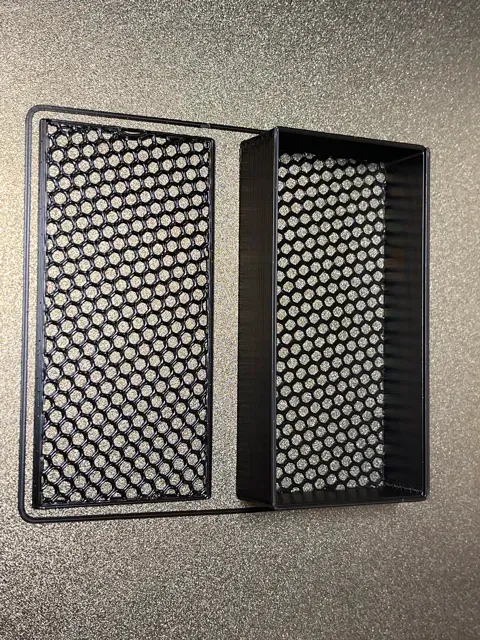

Refillable carbon filter box with a sliding lid and a fingernail slit for easy opening.

Maximized charcoal filter to removes odors and harmful fumes when extruding plastics.

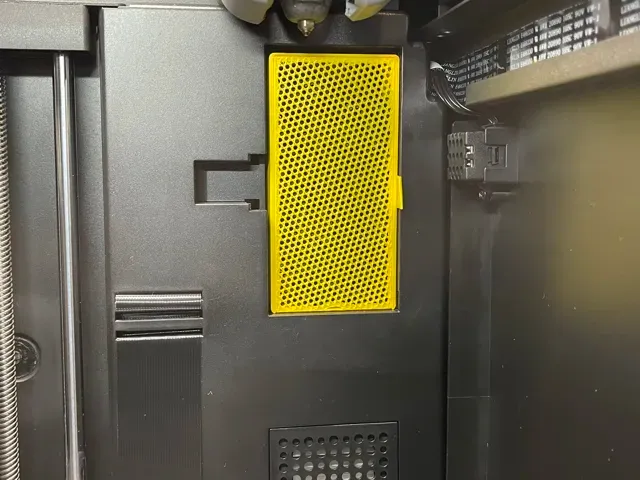

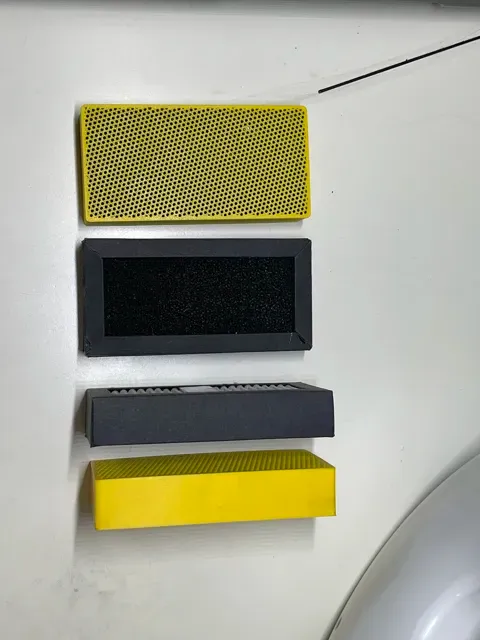

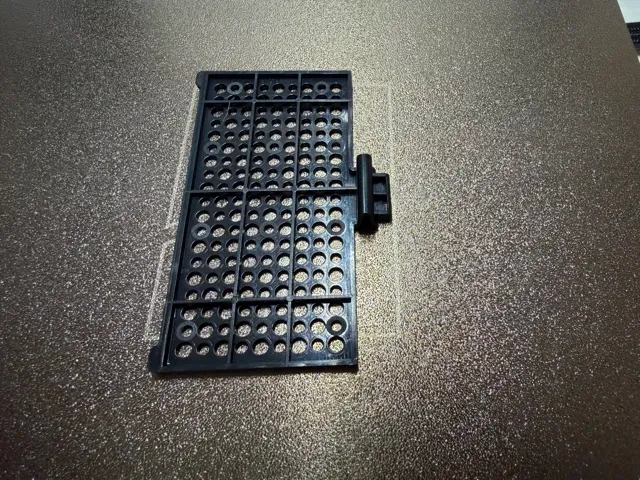

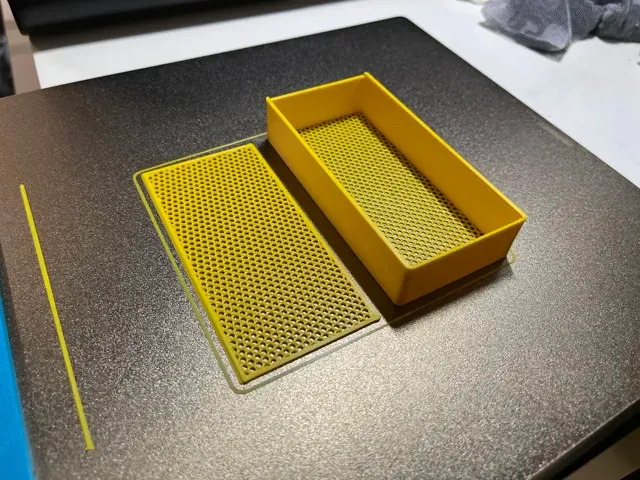

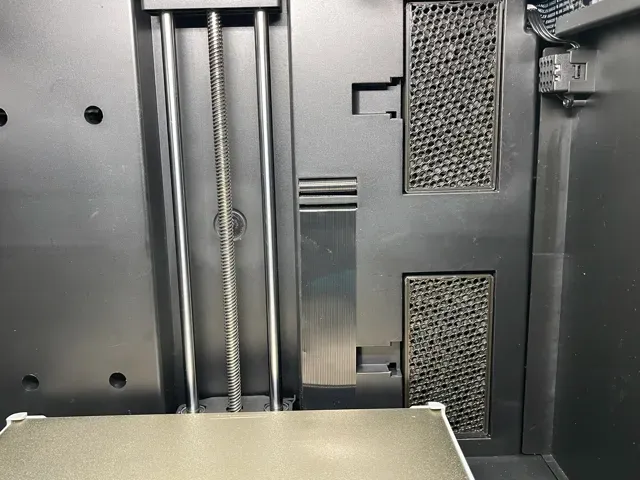

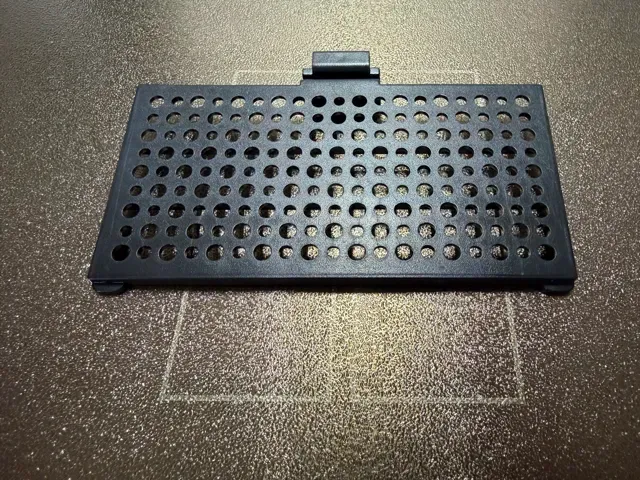

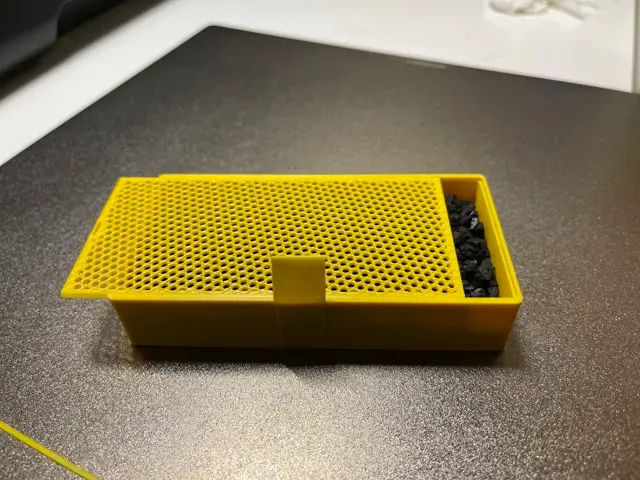

- Print in ABS, PETG or other higher temp. filaments. - 0 (Zero) top & bottom layers , choose your infill.  (yellow box: 30% honeycomb, black box: 27%) - Unchecked infill combination, and optional only 1 wall on top surface. - Use acid-free activated carbon. - Box capacity is 48g of activated carbon granules, re-fill after 350 printing hours. And  37g of 4mm pellets, refill after 300 hrs or if you start smelling plastics again. The bottom filter is only used during external air circulation, while top filter is always in use, so best to swap them half way. If upgrading your 5m to use the filter and need the filter cover, I've uploaded the filter cover file provided by Flashforge, and the print profile for petg.
