X-CARVE CNC FULL CLAMP SET HOLD DOWNS
Model details
- Platform
MakerWorld
- Price
- Free
- License
- PRIVATE-USE
- Personal use only: print for yourself, no selling or sharing.
- Formats
- 3MFSTL
- 36 Likes
- 321 Downloads
- 172 Makes
- 124 Collected
- 5 Boosts
- 10 Comments
- 0 Views
Description

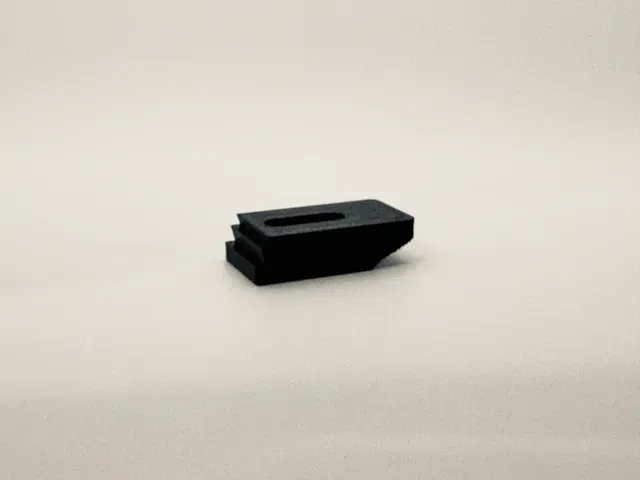

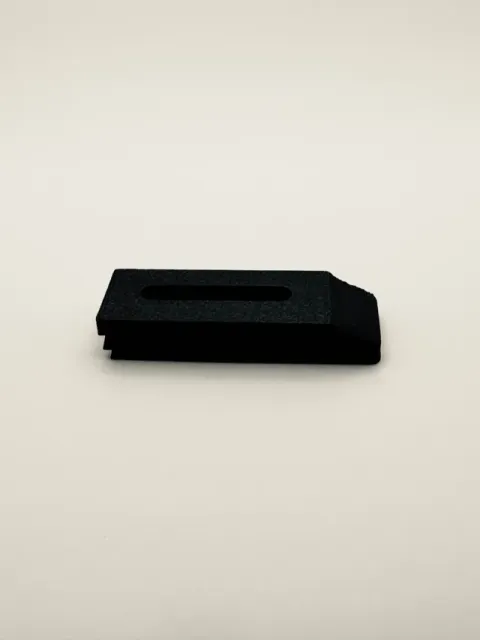

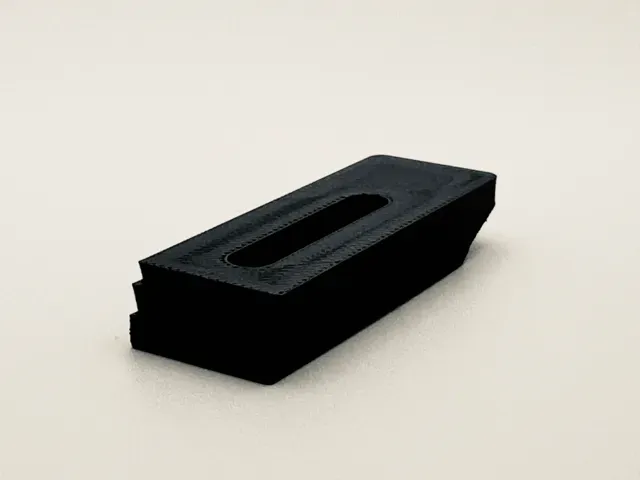

X-CARVE CNC CLAMPS!

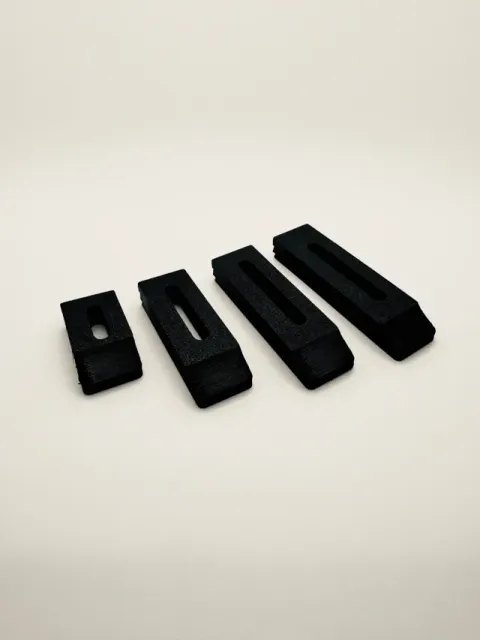

This is a full set of clamps for the XCARVE woodworking CNC. This holds the material down during the cutting process. This is the full factory replacement set of four sizes (35, 55, 65, 70mm) x 5 of each size.
REPLACE YOUR BROKEN OR DESTROYED CLAMPS!
These are sometimes knicked or destroyed during cutting of the design. This gives you a easy way to replace those hold downs.
SHOULD WORK ON OTHER CNCS!
If your spoil board is drilled and tapped, you should be able to use these. The slotted hole is 5.5mm.
Guides and print profiles

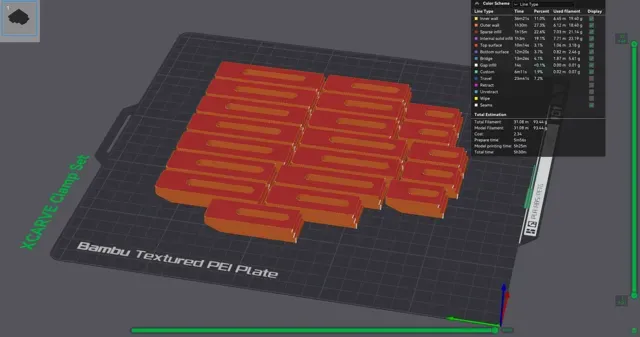

Print profiles and steps
0.16mm layer, 2 walls, 15% infill Added supports for better finish on the tapered end of hold downs.
0.16mm layer, 2 walls, 15% infill No supports
