Raspberry Pi 2B/3B/4B/5B 10-inch Rack Mount

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 338 Likes
  • 1 997 Downloads
  • 1 089 Makes
  • 1 526 Collected
  • 55 Boosts
  • 116 Comments
  • 0 Views

Author:Mauker

Published

Download on MakerWorld

Description

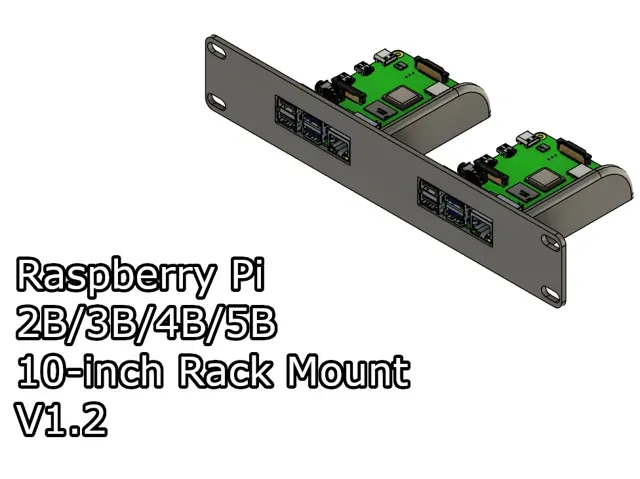

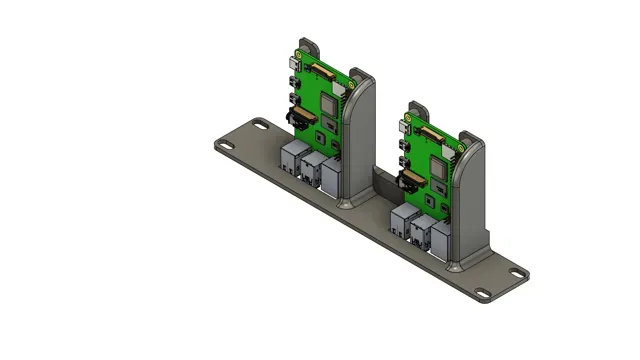

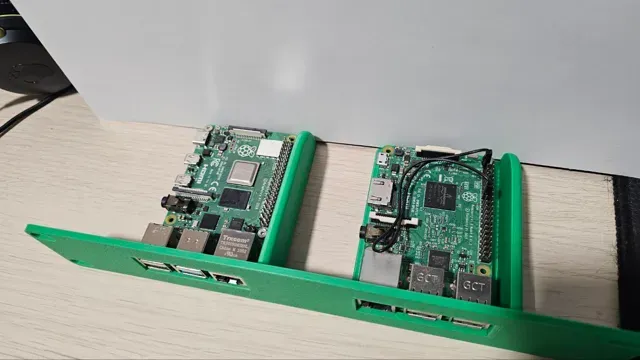

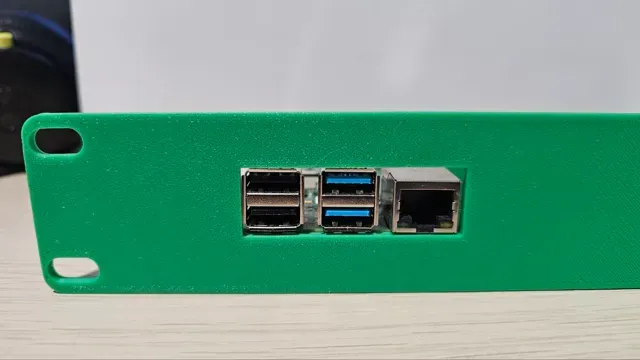

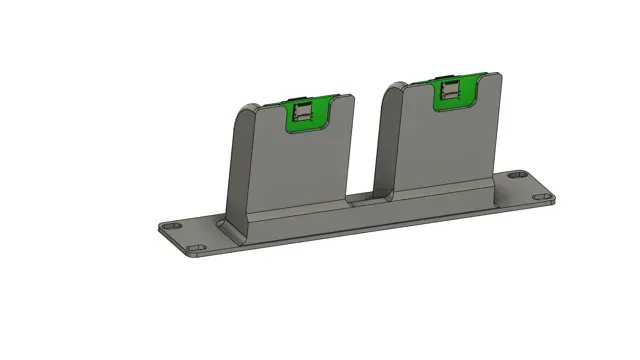

A 10-inch rack mount for two Raspberry Pi devices. Compatible with RPi 2B, 3B, 4B and 5B.

This model is part of a series of 10-inch rack mounts I've designed. You can check out the others here .

Boost Me I make these models for free, and it takes time and material to test them out. Your boost will help me keep releasing new models! Thank you! Membership Want to support me further? Or sell my prints? Please consider one of my membership tiers. Thank you! Do you like my models? Consider buying me a coffee ;)

Updates

- 12 Oct. 2025: Added a version with smaller holes for different thread inserts. - 02 Aug. 2025: I've included the version 1.2 of this model, with the following modifications: - Added a non thread insert variant of the model. - Added mounting holes all the way to the back, so you can also mount hats that require screws coming from below. - 11 Feb. 2025 : I've released Version 1.1 of this mount, with cutouts for the micro SD cards, making it easier to insert and remove them. I have also reinforced the mount, making it sturdier. Required parts

- (Optional) 8x M2.5 thread inserts . - 8x M2.5 screws. Assembly instructions

- If using the Thread Insert variant, insert the 8x M2.5 thread inserts into the mount. - Insert your Raspberry Pi into the mount. - Secure it with 4x M2.5 screws. - Repeat the process for the other Pi. Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Walls/Perimeters:

3.

Infill:

20% or more.

Filament:

Any.

Guides and print profiles

Print profiles and steps

PLA - 0.2mm layer, 4 walls, 20% infill

No-Threads; 3mm Screws Straight Into Plastic Edition I love threads too, but I'm just impatient enough to not care for these Pi's, ya know?

ABS, OP's V1.1 model + press fit standoffs to hold pi Exact same model as OP. Printed in ABS.

Since i dont have inserts, i made some stand-offs on BambuStudio, and printed on the same bed. These press fit onto the original holes. The pi then enters at a slight angle and slides into place on the stand-offs.

Plate 1 is the rack mount and standoffs, plate 2 is just the standoffs if you prefer to print the OP's model (in case he updates something).

0.2mm layer, 2 walls, 15% infill, self tap w/passthrough Self tapping version with a negative modifier in the middle for ethernet cord passthrough to support my RPi devices with PoE hats.
