Retractable Karambit Knife

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
3MFSTL
  • 2 753 Likes
  • 4 825 Downloads
  • 4 473 Makes
  • 5 713 Collected
  • 183 Boosts
  • 685 Comments
  • 0 Views

Author:Ocular Dynamic

Published

Download on MakerWorld

Description

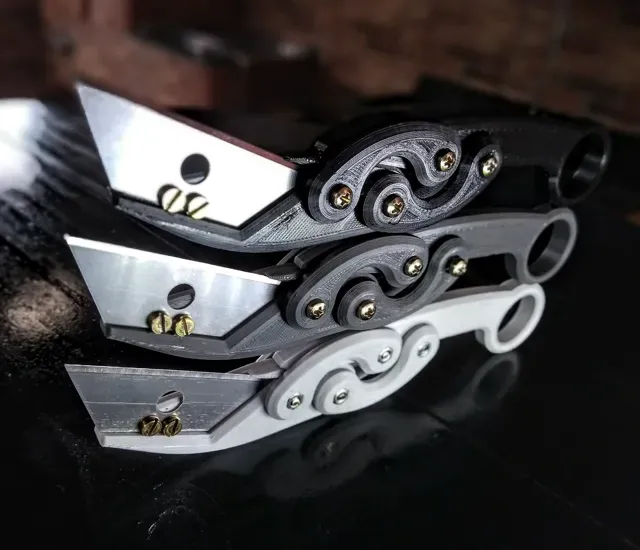

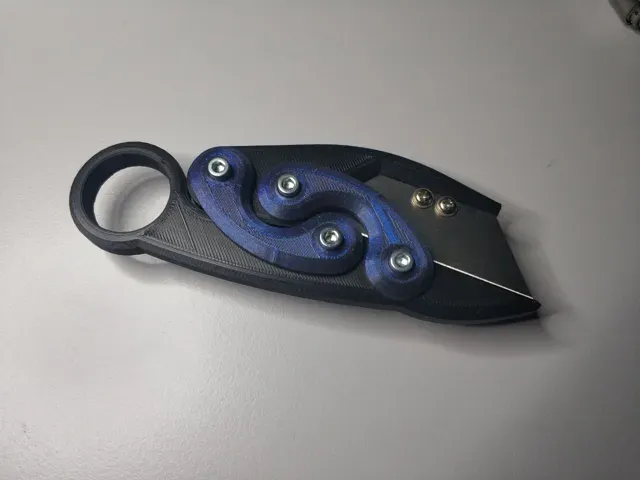

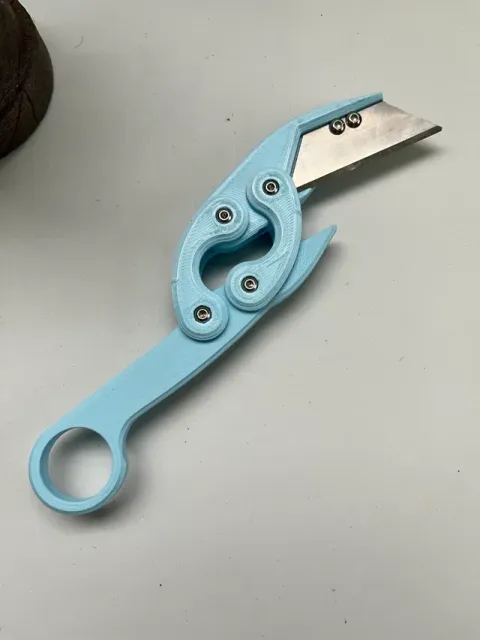

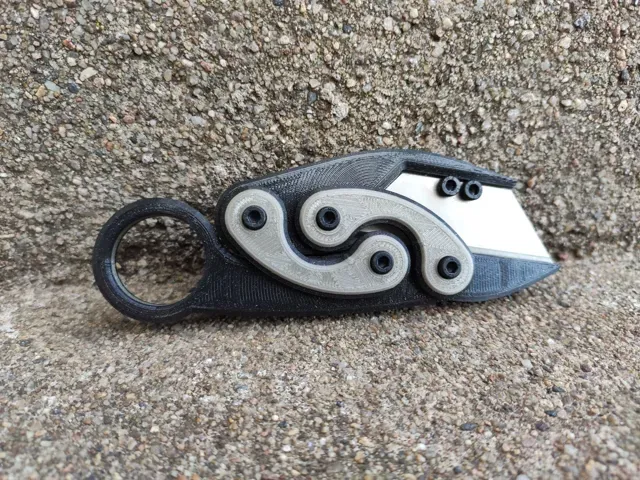

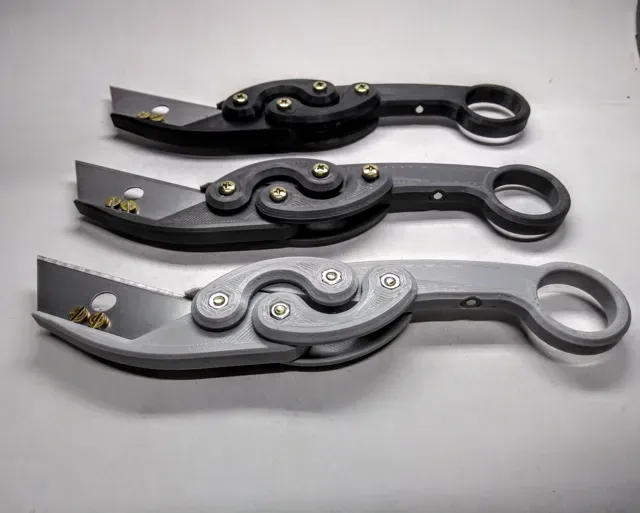

Cool retractable karambit knife remix of a remix originally of cat claw box cutter. I'll have a profile that all one color and a 2nd profile with 2 plates, body separate from links so you can make them different colors if you wish.

I only put supports for the hex nuts on the blade holder to make sure its clean. Push em out super easy with the hex key wrench through the hole from the other side.

Assembly Parts

For Body:

4x - M3x16mm screws

4x - M3 Nuts

For Blade:

2x - M3x5 Screws

2x - M3 Nuts

Magnets [Optional]:

3x - 6mm x 3mm

Guides and print profiles

Print profiles and steps

Single Color - 0.2mm layer, 2 walls, 15% infill

Print By Object Stronger - 0.2mm layer, 3 walls, 30% infill Print By Object on single plate for more overall compatibility and multicolor while increasing the strength a bit

Dual Color - 0.2mm layer, 2 walls, 15% infill

[2Color, 1Swap]: 0.2mm layer, 3 walls, 99% infill Printed by object, so there's only one filament swap :)

0.2mm layer, 2 walls, 100% infill changed to to 100% as had one fail on me before and nearly cut myself at low infill and 100% has done me well for a very long time
