SKR Mini E3 v3 + RasPi front housing for Ender-3

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STEPSTL
  • 18 Likes
  • 68 Downloads
  • 27 Makes
  • 37 Collected
  • 3 Boosts
  • 9 Comments
  • 0 Views

Author:frdmn

Published

Download on MakerWorld

Description

While searching for a clean front housing that fits my SKR Mini E3 v3.0 as well as my Raspberry Pi, I stumbled upon tony.tubb's incredible and well-designed case that however only fits the Ender Pro (that comes with the 4040 Y-axis extrusion rails) unfortunately. Since tony also shared the .STEP files, I took the time and did some adjustments to make it fit on a non-Pro Ender v1 (with a 4020 Y-axis).

Changes made

The following changes have been done:

- Adjusted fixing holes to support M3S heat inserts (M3 x 4,0) instead of just regular bolts - Raised fixing hole/spacers a few mm to allow room for the stepper driver heatbreak cover of the SKR board - Implemented space for the 4020 Y-axis extrusion rail - Added mount for HW-272 step-down converter instead of LM2596 - Added space in the Raspberry Pi lid for the LCD display cable - Removed the typo/font inlay on top of the lids Pictures

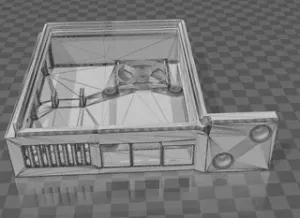

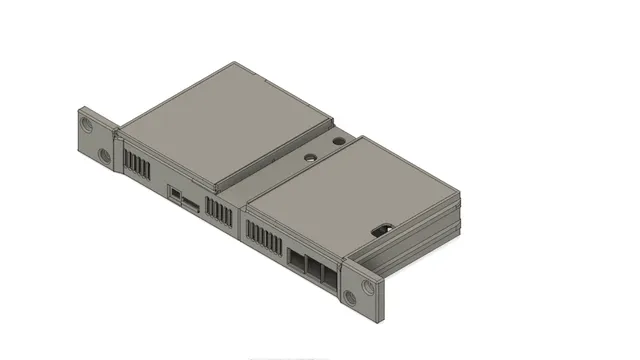

Render

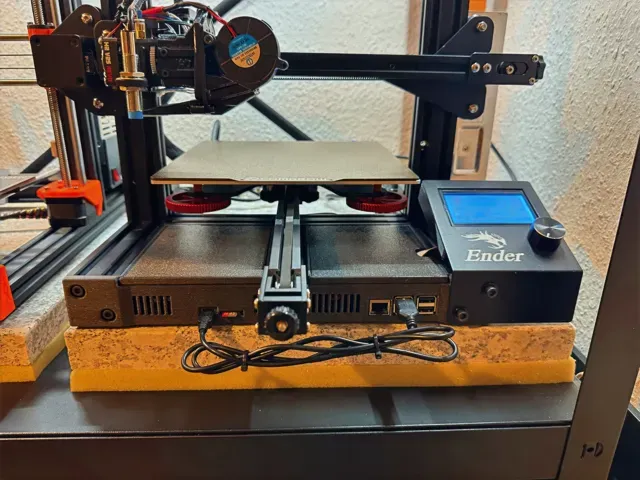

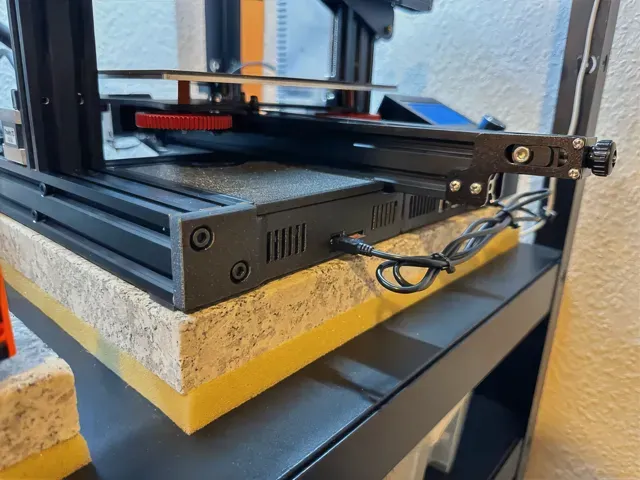

IRL

Guides and print profiles

Print profiles and steps

0.16mm layer, 2 walls, 15% infill Supports may be necessary
