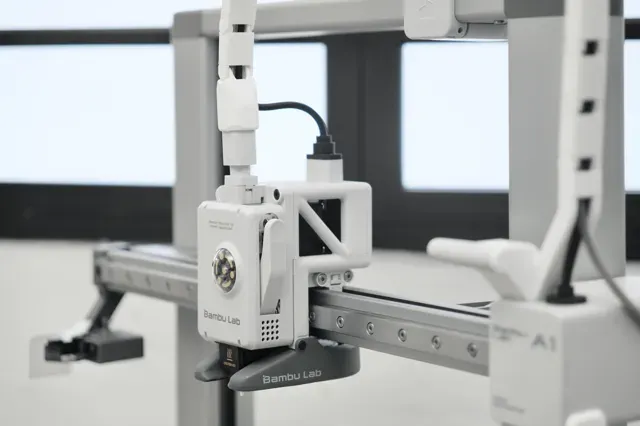

A1 Print Head Drag Chain / Cable Chain

V02 updated (PETG) 0.2mm layer, 3 walls, 20% infill Update:

V02

- updated motor mount chain clip with stronger mount and clip. - PETG or PETG-HF is highly recommended for strength and longevity of parts. PLEASE clean your build plate with alcohol wipe for best bed adhesion/print outcome.

Neue Halterung für A1 mit AMS-Lite Habe die Halterung der Kette am Druckkopf und die Halterung der Kette am Motor geändert.

Funktioniert bei mir, mit dem AMS-Lite hervorragend.

Auch beim Filament Wechsel treten keine Probleme auf,

da bei mir das Kabel der Lampe die Kette hoch hält.

(Habe jetzt einen Kabelkettenhalter hinzugefügt, so das die Kette immer oben gehalten wird.)

Musste 3 Kettenglieder mehr Drucken, da sonst die Kette bei mir zu kurz war.

Die Klammer der Originalen Motorhalterung wird hier weiter verwendet.

More organized and horizontal oriented print I realized this print profile merging different print profiles and settings.

Specifically, I horizontal oriented all the pieces and used the @Hilli mount for the AMS lite, but using always the original attach on the other side of the cable.

Using the version with the AMS lite I used the old PTFE cable for the external spool to prevent the chain from bending in the center.

I used the 0.2 Standard preset with the following changes:

3 wall loops

20% infill

Gyroid infill pattern

On build plate only support

Neue Halterung für A1 mit AMS-Lite, Kabelkettenhalter Der Original Kabelhalter findet ihr dort: A1 Kabelhalter von Astr0_Man1 MakerWorld: Kostenlose 3D-Modelle herunterladen .

Ich habe nur die Feder von 8 mm auf 3 mm verkleinert, damit er zwischen die Kettenglieder passt und an das Kabel kommt.

Somit braucht keiner mehr einen PTFE Schlauch hinein legen.

Gedruckt habe ich mit JAYO PLA+

PTFE Fitting Relocator Since the PTFE Tube Fitting will is not in a convenient place unless you are using the handle relocated fitting, you can use this PTFE Fitting relocator and a drop of CA glue/Epoxy to move it to mount it in a more convenient place.

AMS Clip I added the AMS clip to a cover piece, very basic as I have very little 3D modeling skills, works great though

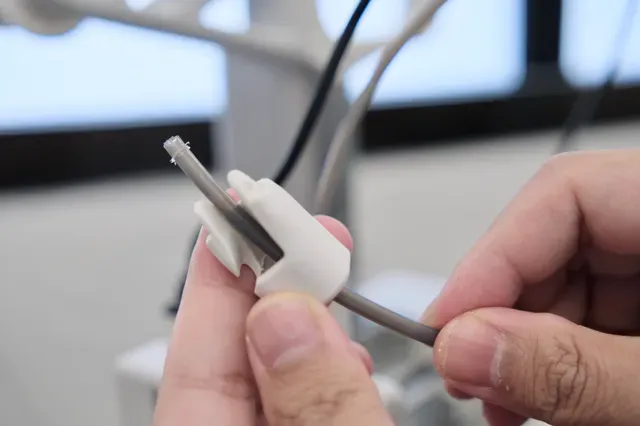

Chain clip with single ptfe clip For those of us who don't need the AMS PTFE tube clips, but still need to clip our PTFE tube to the cable chain rather than running it inside all the way to the motor mount.

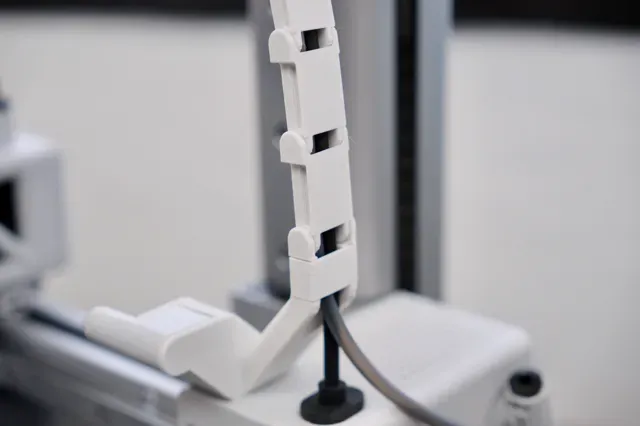

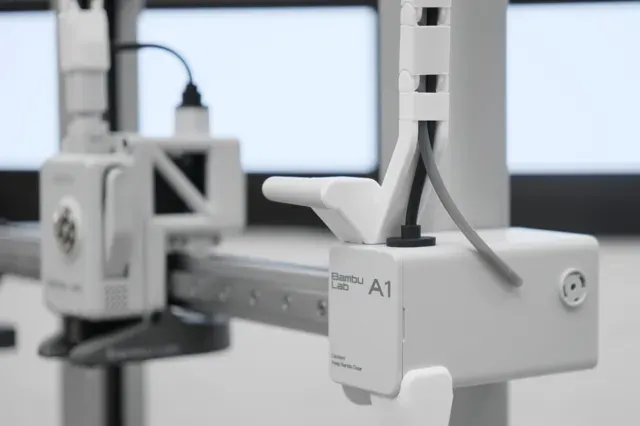

Motor mount - version with longer front (+1mm) I had problems getting the obj_1_motor mount test RV13.1 part to latch onto the motor mount (see second photo), so made a version where the front is 1mm longer to get it to latch more easily (see first photo).

Adapteur pour clip PTFE Adapteur permettaant au tube en PTFE d'avoir une orientation optimale pour ne pas rester coincé.

No clue needed

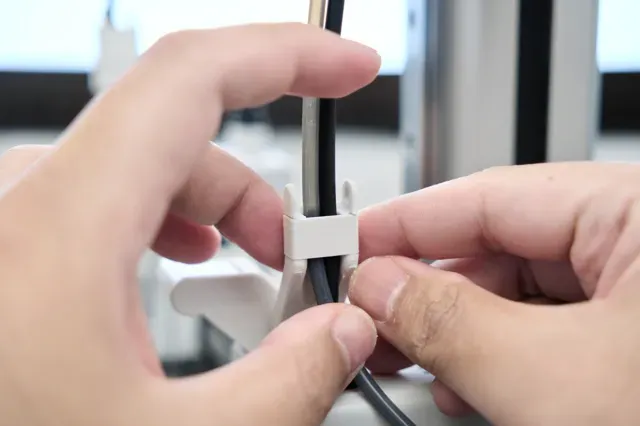

Clip in place

3 Wire clips for Panda Knomi After  receiving my Panda Knomi, one additional wire had to pass trough the drag chain, i have modified only the bottom clip to allow for this additional wire and this has solved the issue cleanly. Hope this helps some1 out :D

Side Attachment piece with a blink mini 1/2 mount Print with support.

This replaces the side attachment piece with a supporting arm mount for the blink mini 1 or 2 camera.

Enjoy :)

0.2mm layer, 3 walls, 30% infill I modified the end piece to fit my Ring Camera. This is stable and so much better than the stock camera. You will need to mount  the camera upside down.

Side attachment with Eufy mount Print with support.

May be able to reduce infil some, but I haven't tested. Wanted it to be solid enough for the vibrations and movements.

This replaces the side attachment piece with a supporting arm mount for the Eufy C120 camera.

Remixed from: https://makerworld.com/en/models/869532-eufy-indoor-cam-c120-camera-mount-for-bambu-a1?from=search#profileId-821182
