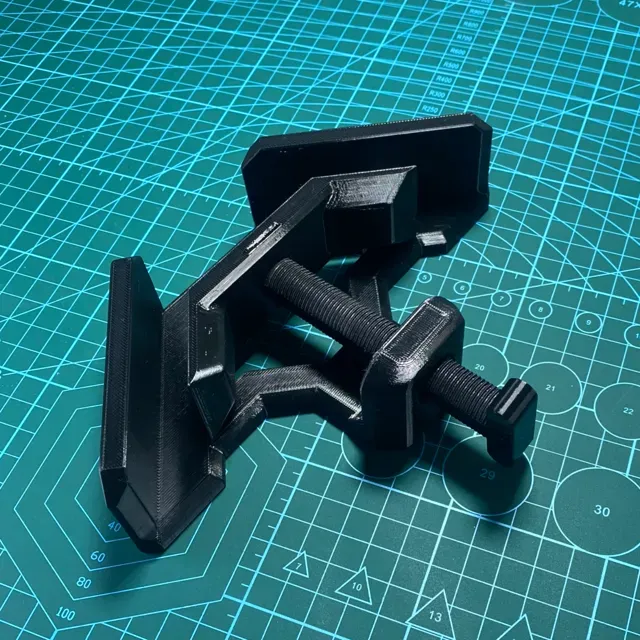

Angle clamp V2 — Image 2 of 4

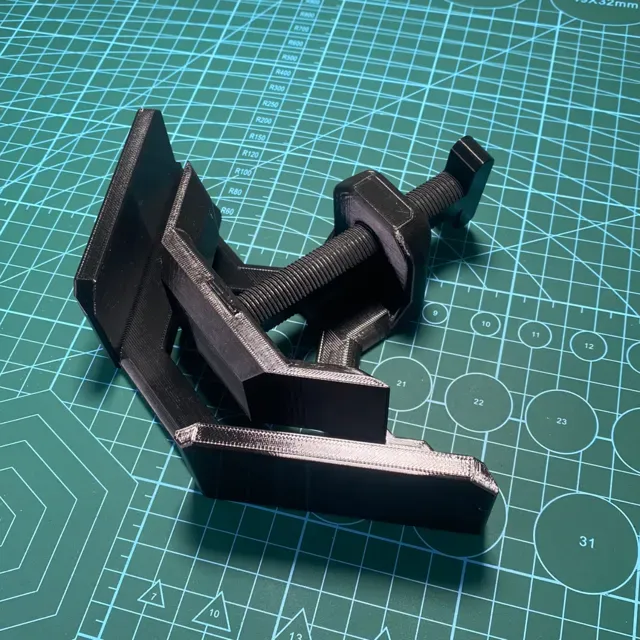

Angle clamp V2 — Image 3 of 4

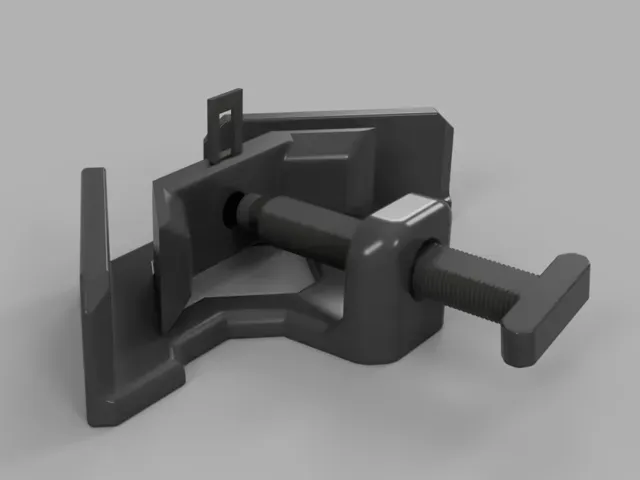

Angle clamp V2 — Image 4 of 4
3D model · MakerWorld

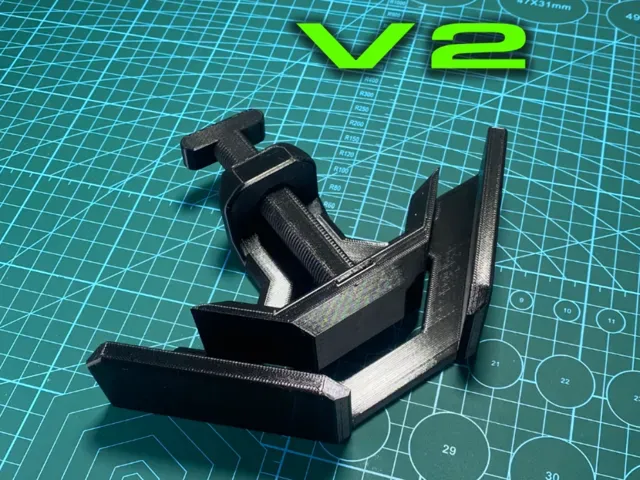

Angle clamp V2

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 505 Likes
  • 1 538 Downloads
  • 1 104 Makes
  • 1 879 Collected
  • 49 Boosts
  • 108 Comments
  • 0 Views

Author:zzzzzzzx

Published

Download on MakerWorld

Description

IMPORTANT : AFTER ASSEMBLING THE CLAMP, SCREW AND UNSCREW(x2) THE ENTIRE SCREW TO ENSURE SMOOTH THREAD MOVEMENT! ⚙️ THIS IS ESSENTIAL FOR OPTIMAL FUNCTIONALITY!!

Boost Me If you like it, please consider giving it a boost to help more people discover it. Your support would mean a lot! 🙌 I ntroducing Angle Clamp V2 , the upgraded version of my original angle clamp, now better than ever! 🔧 After receiving valuable feedback from the community, I’ve made key improvements to both the design and the strength of the clamping screw. This version offers enhanced durability and functionality, making it an essential tool for all your angle clamping needs.

WHAT’S NEW in Angle Clamp V2? 🔥

• The connection between the screw and clamping element has been redesigned for better performance and durability. 🔩

• The screw’s print orientation has been changed, significantly increasing its strength and reliability. 💪

• Aesthetic upgrade with smoother, rounded edges for a more polished and professional look. ✨

Guides and print profiles

Print profiles and steps

0.2mm layer, 4 walls, 25% infill

A1 mini version - 2 plates

Tags

angle clampcornerwood workingwoodworking accessorieswoodworking accessoryclampclamps
