Case for ESP32-WROOM-32D board with longer Wifi

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 72 Likes
  • 549 Downloads
  • 395 Makes
  • 228 Collected
  • 11 Boosts
  • 44 Comments
  • 0 Views

Author:fattymatty

Published

Description

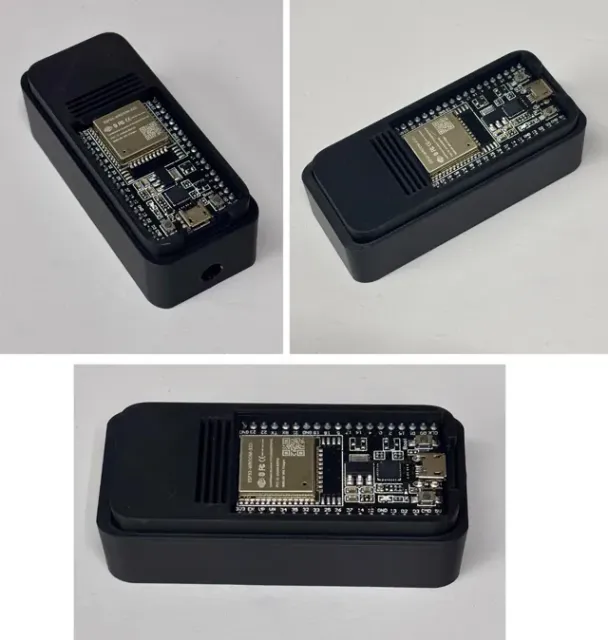

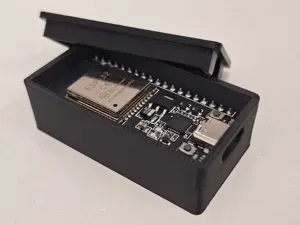

Another esp32 case, but i found it super hard to find one for the board I have. Its a Esp32-wroom-32d but it has an extended wifi module/antenna that extends off the board. I read on reddit these particular boards have better wifi, which i can confirm. But theres not many cases that will fit this, plus i wanted room for Dupont connectors below and a bit of extra space for another module if needed. I used this setup for a WLED setup. This one in the images is printed in Bambu Matte PLA - Black.

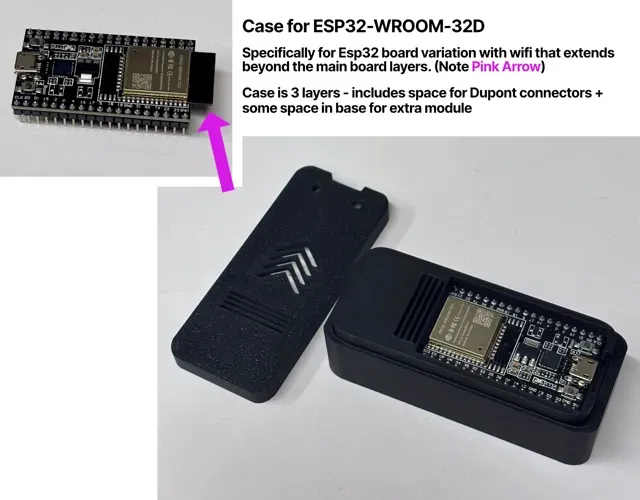

This is really designed specifically for Esp32 Boards like in the images, note the pink arrow showing how the Wifi module extends past the end of the board.

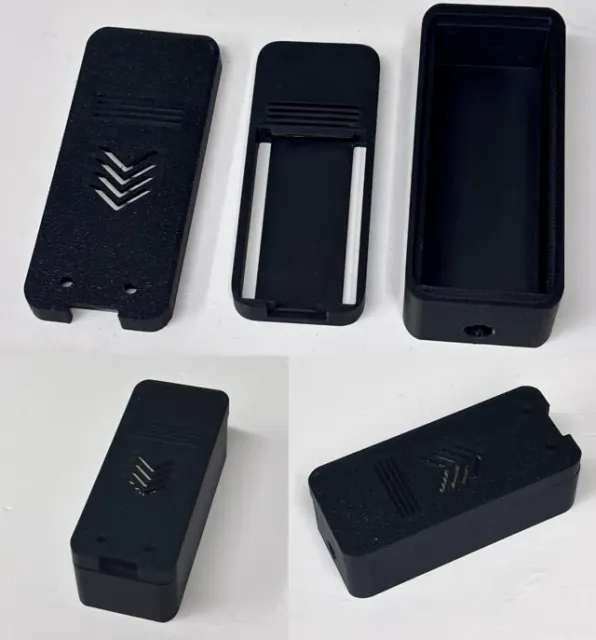

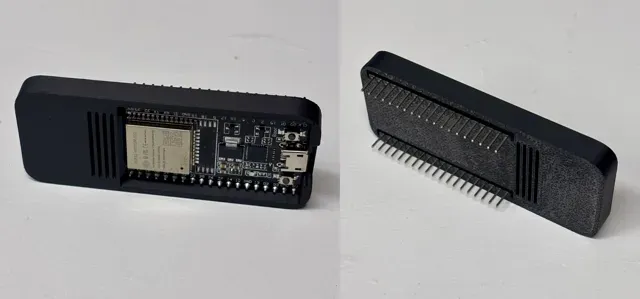

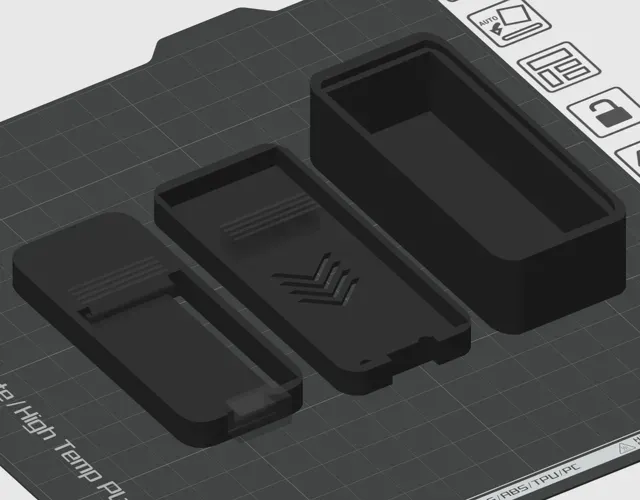

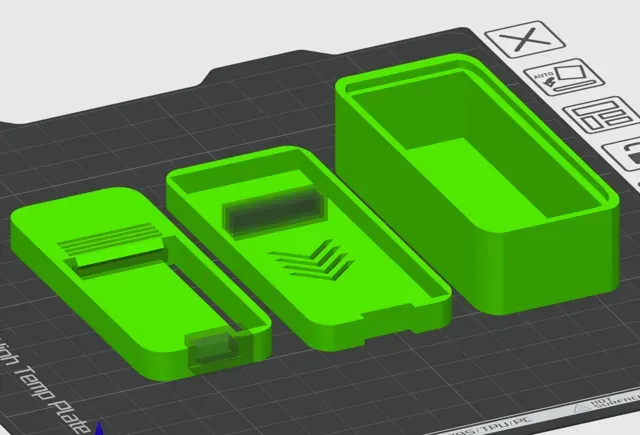

This is a remix from a design from @Grunt_487841 on printables, but that was for a different esp32 board. So the length and width are different. Plus added a slot for the longer wifi to slide into. And added some vents to help cooling and wifi signal. Also added a hole in the base for the dupont connectors to enter.

Boost Me Did this fit your project? Would super appreciate a Boost. And let me know your feedback or ideas on ways we can improve this

Guides and print profiles

Print profiles and steps

0.2mm layer, 3 walls, 15% infill Pretty standard settings for Bambu Matte PLA.

0.2mm layer, 3 walls, 15% infill and auto supports
