3D Positioning Targets with Case

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 24 Likes
  • 71 Downloads
  • 40 Makes
  • 80 Collected
  • 3 Boosts
  • 2 Comments
  • 0 Views

Author:MattHimSelph

Published

Download on MakerWorld

Description

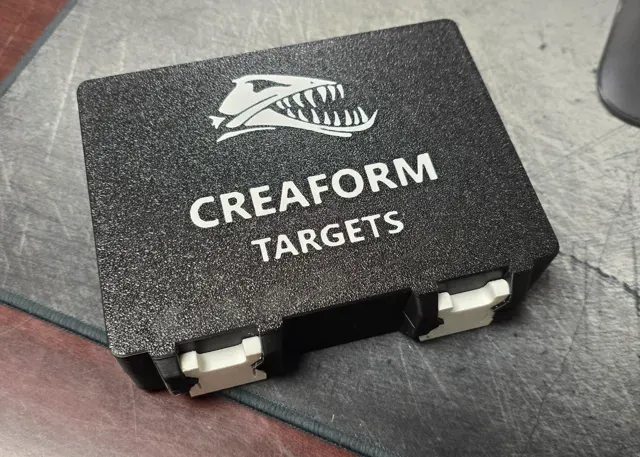

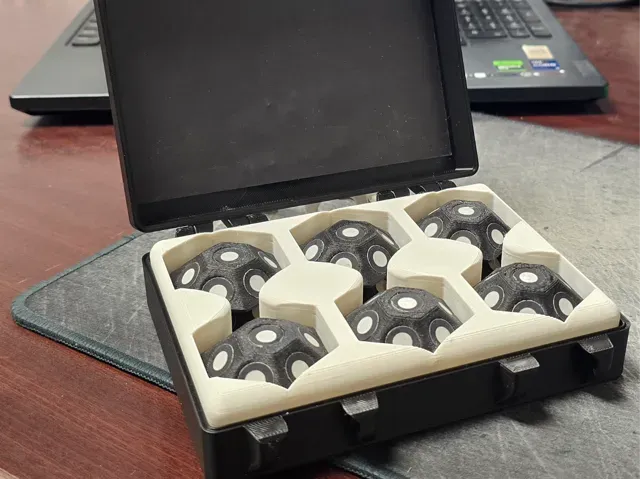

“Creaform” positioning targets and case.

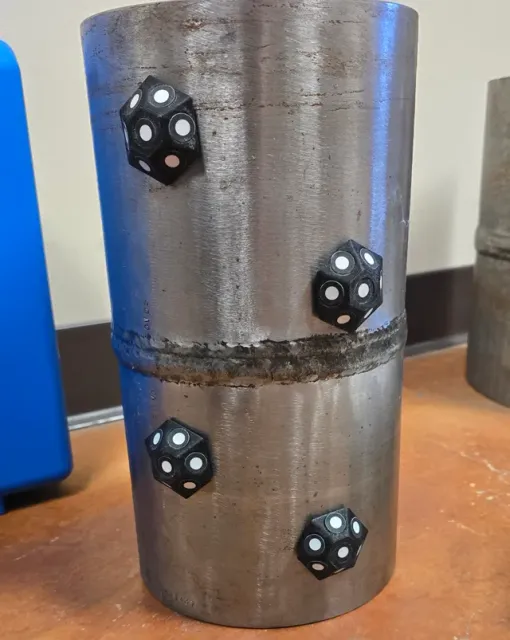

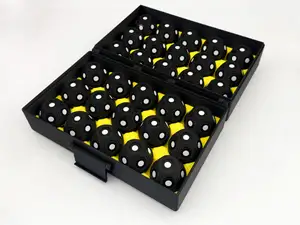

Case holds 12 target pods.

Uses the standard 6mm adhesive positioning targets with a dab of super glue to set the targets in place (7 each)

Has a hole at the bottom for a 10mm x 3mm round magnet. (QTY: 12)

Be sure to install all magnets in the same orientation (i.e, North pole up for all, or South pole up for all)

This will allow them to stack inside the case without wanting to “float”

Outer Case was reimagined from this design:

https://makerworld.com/en/models/494602-sturdy-latch-style-accessory-box-for-a1-mini?from=search#profileId-408565

Guides and print profiles

Print profiles and steps

0.28mm layer, 3 walls, 5% infill 0.28mm BBL profile

Bambu Labs PLA Matte White

SUNLU PLA PLus Black

No supports

3 wall loops

4 bottom shell layers

5% Gyroid infill
