Description

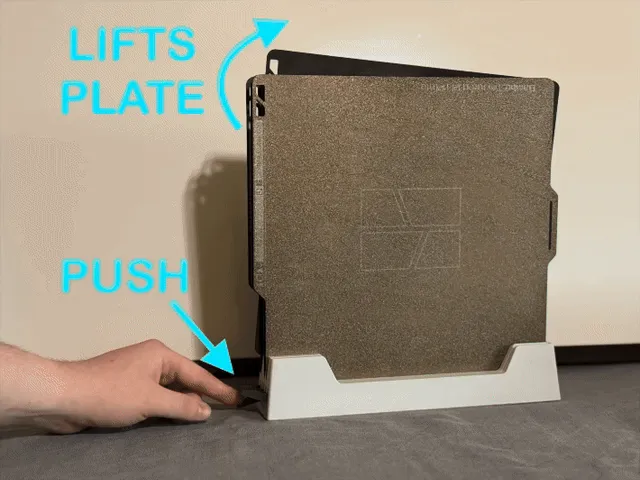

This build plate holder can store up to 5 build plates at a time with the left most slot being extra wide to compensate for a thicker plate such as a 3D effect plate with 2 stickers or a PEI smooth plate. This storage device also features a small lever which when pressed will lift up the corresponding build plate for its easy removal. There is a model for every size build plate including the newly released H2D and if you would like a custom version with a different amount of slots they will be made upon request in the comments.

Assembly:

This model takes minor assembly to make the leavers function properly and uses a piece of filament as the hinge.

Guides and print profiles

Print profiles and steps

X1C size - Only Print 1 plate There are 5 different plates, all were custom asks, download whichever you need. All pieces are included on a single plate

H2D size Print 1 plate Plate 1 5 slot, plate 2 3 slot

A1mini size

A1 mini customs 10 slot wide version requiring larger print area than the A1 Mini but holds a1 mini plates

H2S Profile 5 Plate holder Made the profile to use with the H2S. I recommend using a smooth Plate so the holes fit better.

PLA with PETG interface support - 0.28mm layer, 10% infill Used up some extra filament, thats why the lower part has another colour.

7 Build Plate Holder with logo and foot I took the original profile and added 7 build plates, a foot to slide under for support.  The logo is removable.  I'm unsure if the foot is necessary but I appreciated adding some extra balance.

Plate holder with fixing plate for H2 series

Larger Slot for Cutting Module Tack Plate Modified the original to fit the (cutting module tack plate) by widening the left slot to 2.5mm. Also added stabilization wings to the design as well as holes if anyone wants to mount the holder in a more permanent fashion. The model was downloaded via the supplied .stl file then converted to a .step file, then modified as a .sldprt file, then re-uploaded as a .3mf file.. so there could be some slight discrepancies in the final print quality. There is nothing I can do about that unless authors include their actual cad files aside from completely redesigning it. It did print well for me with the profile I've uploaded on my H2D.

Standard 6 Slots 3 for A1 3 for A1 mini If you want something as specific as me

you are in luck
