AMS 2 PRO DRY PODS H2D with funnel (XIAOMI,AQARA)

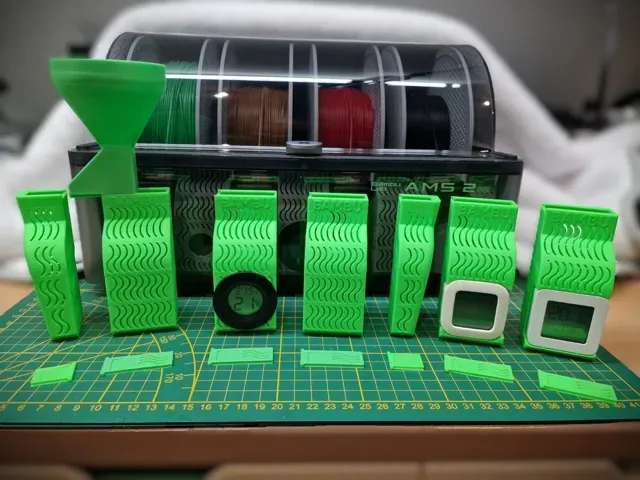

Here is the new version pods for the AMS 2 PRO , off coarse you can dry the filament with the ams 2 pro but you can prolong the low humidity with these pods .

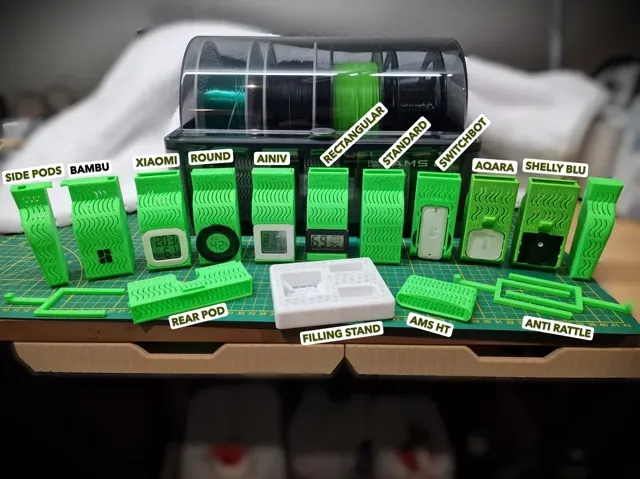

DIFFERENT VERSIONS OF THE PODS ARE LINKED BELOW AND ADDED AS A PROFILE ( READ THE TEXT ) LIKE THE RECTANGULAR AND SWITCHBOT  !!!!

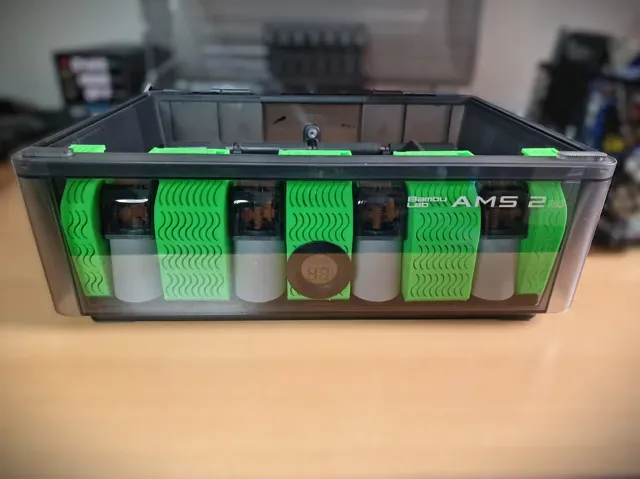

When printed in bambu PETG-HF  they can be left in front of the AMS 2 PRO to dry-out the silica while drying the filament ,

(heat deflection temp. for PETG-HF is 69c and for the PETG translucent is even 74c ).  While the AMS can heat up to 65c .

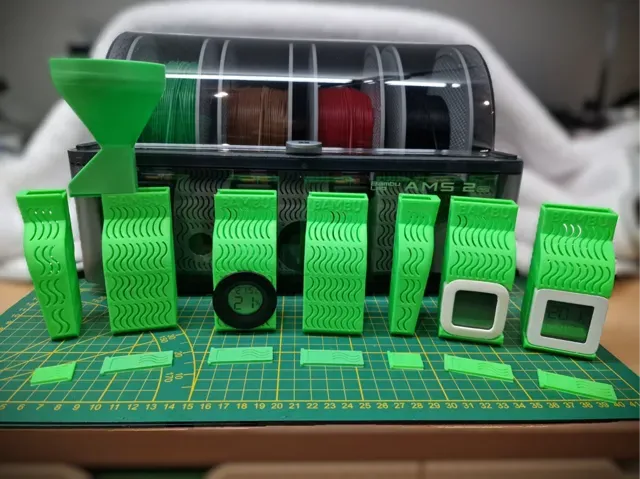

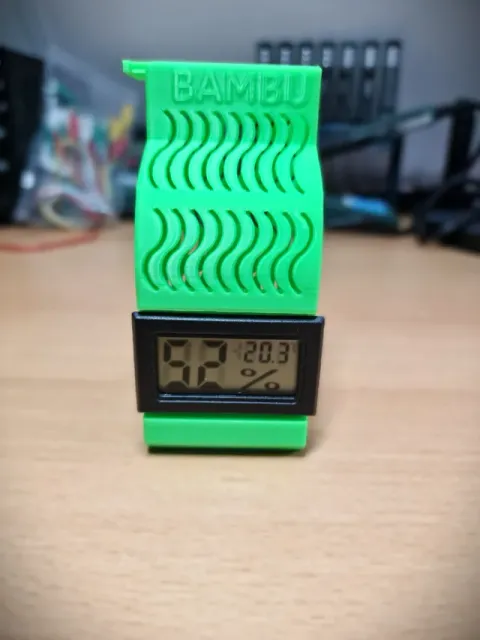

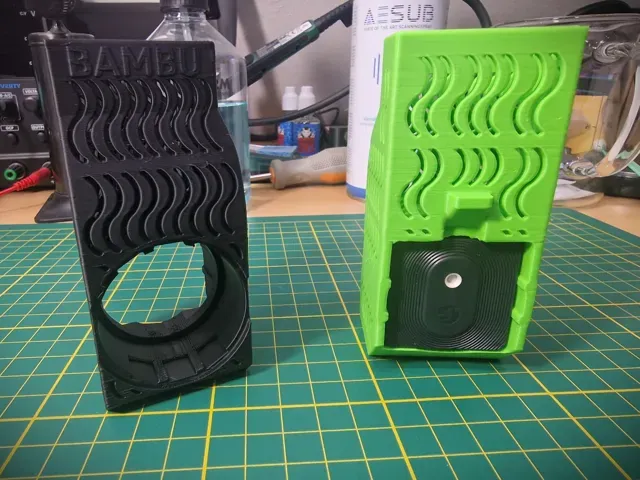

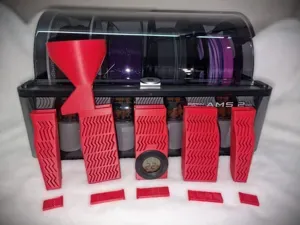

Added optimized funnel makes life easyer to fill them with the silica beads and the seetrough/passthrough model allows for better measurements of the air instead of the silica,  with multi slotted cutout for different orientated tabs on the hygrometers..   (  11 , 12  and  1  o'clock  )

The total set with hygrometer and rear pod hold a total of about 378 grams of silica

small side pods 40 grams , round hygro 42 grams , regular 96 grams , rear pod 50 grams .. switchbot/round 30 grams ….

Be sure to use dry filament ……and add a drop of lubricant to the faces of the lids for easyer IN/OUT movement when they are tight.

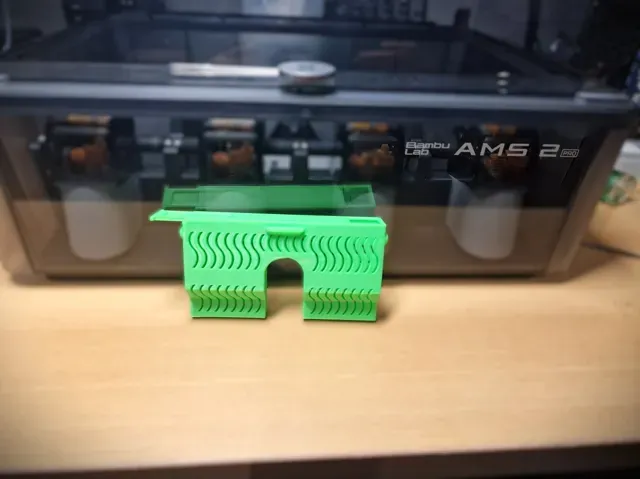

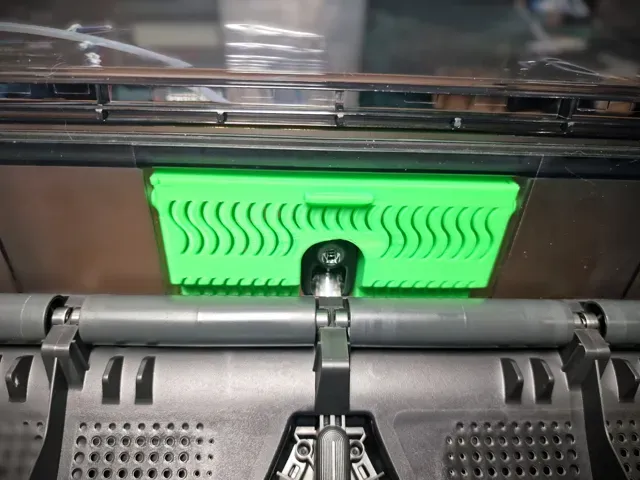

- REAR POD :   https://makerworld.com/en/models/1270826-rear-dry-pod-ams-2-pro#profileId-1297511 NEW OPTIMIZED VERSION !!! - - RECTANGULAR VERSION : https://makerworld.com/en/models/1338822-dry-pod-ams-2-pro-rectangular#profileId-1378799 - - BAMBU LOGO POD : https://makerworld.com/en/models/1344087-dry-pod-ams-2-pro-regular-pod-with-logo#profileId-1385246 - - SWITCHBOT/GoveeLife SENSOR  : https://makerworld.com/en/models/1484170-dry-pod-ams-2-pro-switchbot-and-round-meter#profileId-1550283 - - AMS-HT SILICA DRY POD : https://makerworld.com/en/models/1509489-ams-ht-silica-dry-pod#profileId-1580251 - - SEE-TROUGH XIOMI  POD : https://makerworld.com/en/models/1339041-dry-pod-ams-2-pro-xiomi#profileId-1407871 - - ANTI RATTLE STEMS  :   https://makerworld.com/en/models/1527213-anti-rattle-clamps-for-the-dry-pods-ams-2-pro#profileId-1601071 - - AQARA hygrometer : added as profile and can be bought here : https://www.amazon.nl/dp/B07D37FKGY?ref=ppx_yo2ov_dt_b_fed_asin_title - - SHELLY BLU SENSOR : added as profile and can be bought here : https://www.amazon.nl/dp/B0CXN3LZHJ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 - - SONOFF SNZB-02P ZIGBEE 3.0   : Added as a new model https://makerworld.com/nl/models/2577645-sonoff-snzb-02p-zigbee-3-0#profileId-2842575

AINIV hygro meter can be bought here : https://www.amazon.nl/dp/B0BMQ386LN?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

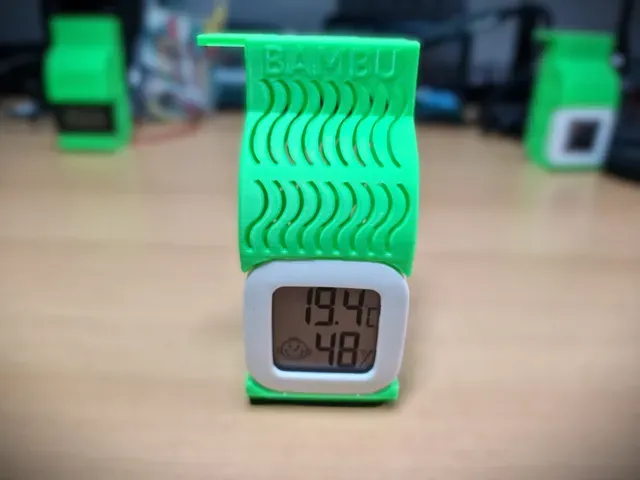

XIOMI hygro meter can be bought here :   https://www.amazon.nl/dp/B08C7KVDJW?ref=ppx_yo2ov_dt_b_fed_asin_title

For the Switchbot sensor with hub for internet connection : https://www.switch-bot.com/products/indoor-outdoor-thermo-hygrometer-combo

For the First edition of the AMS pod's take a look at these   ::   https://makerworld.com/en/models/83952-ams-dry-pods-wide-narrow-hygro-trays-funnel-v3#profileId-89742

or for a matching set :   https://makerworld.com/en/models/1171653-ams-dry-pods-large-small-and-seethrough-multi#profileId-1179978

Be sure to only use the DESIGNER profile as this will be the latest correct version….

I want to thank all of you for the awesome feedback and great comments i have received ;)     much appreciated…

Boost Me Like the design and time spent ??? Consider to boost the model for support and appreciation ;)

*2/4/25  added a small fillet to the inner ring where the pod sits to make it print continuous and added a chamfer on the inside for more walls.

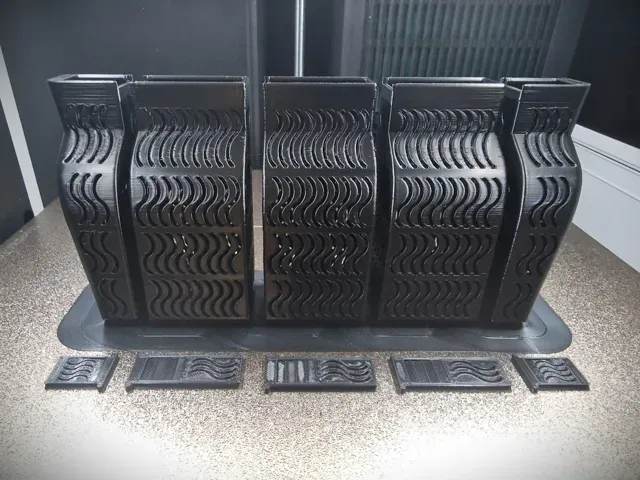

*13/4/25 Raised the base for the tree support to 5mm instead of 2mm and set 2 wall loops for the support.

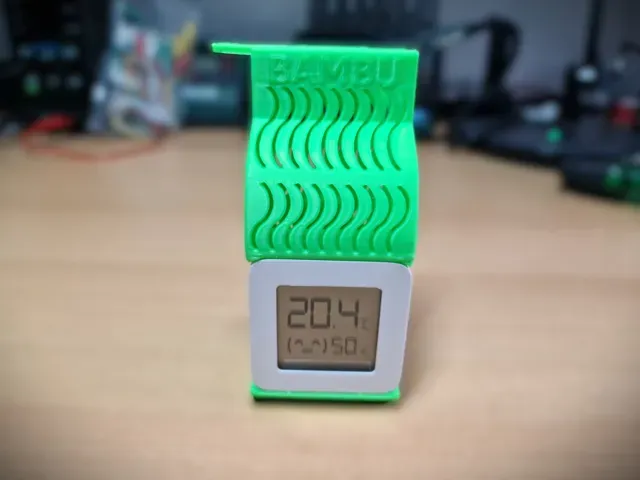

*18/4/25 Added venting slots in the lids and also added 2 extra pods for different hygro meters : XIOMI AND AINIV.

*20/4/25 Added another pod this time the rectangular to fit those pods as well.

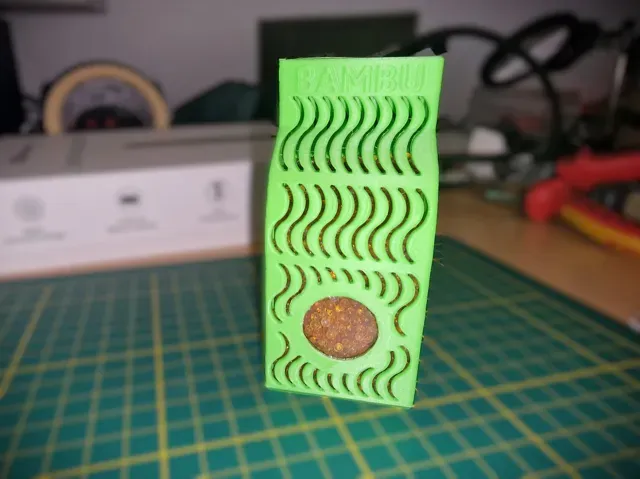

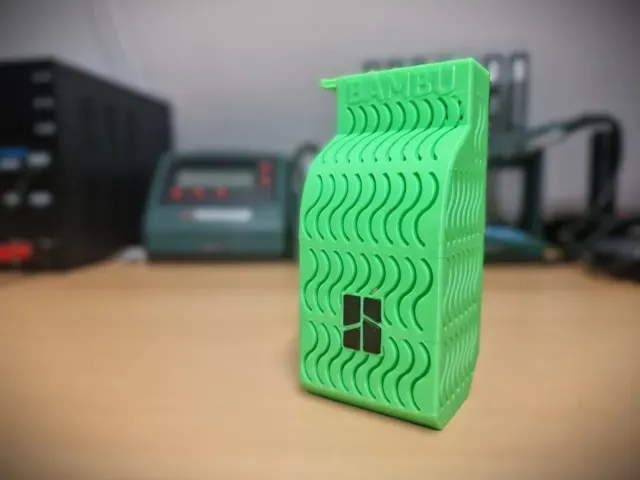

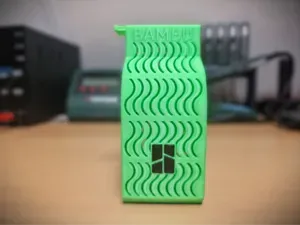

*21/4/25 Added a regular pod but with seperate printed BAMBU LOGO.

*31/5/25 Modified the smaller side pods to fit better and raised the silica volume with 22% to 40 grams also added brim to funnel.

( thanks @psych and @Bradylew for confirming fitment in different AMS 2 PRO systems ;) .)

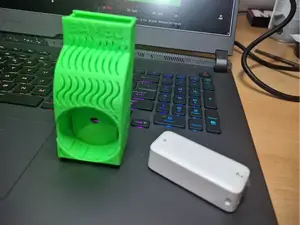

*3/6/25    Added the round hygrometer pod with the SWITCHBOT sensor adopted in.

*11/6/25   Added the AMS-HT SILICA DRY POD.

*28/6/25  Added the ANTI RATTLE stems and updated the pictures..

*25/7/25   Removed a small defect which caused problems with the smaller side pods with some people ( Thanks @user_1380314725 )

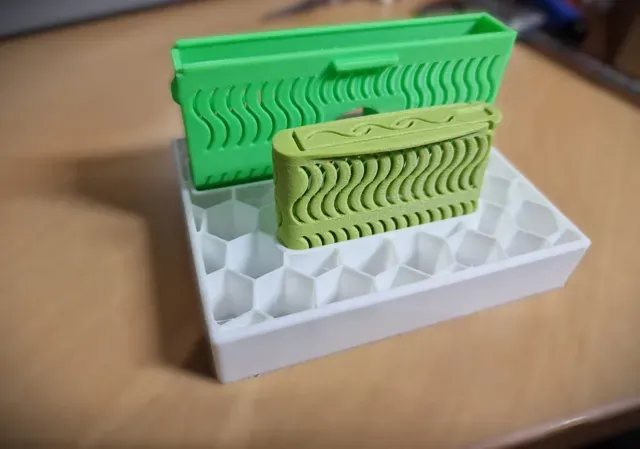

* 4/10/25 Added a stand by request for easyer filling ..

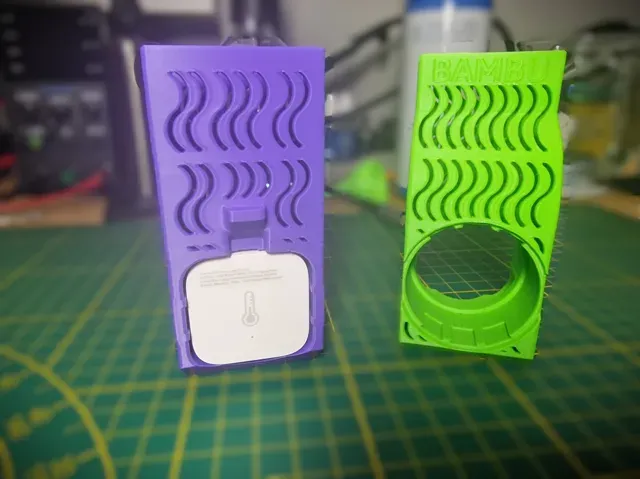

*3/11/25   Added a round/AQARA adopted pod for the center by request ..

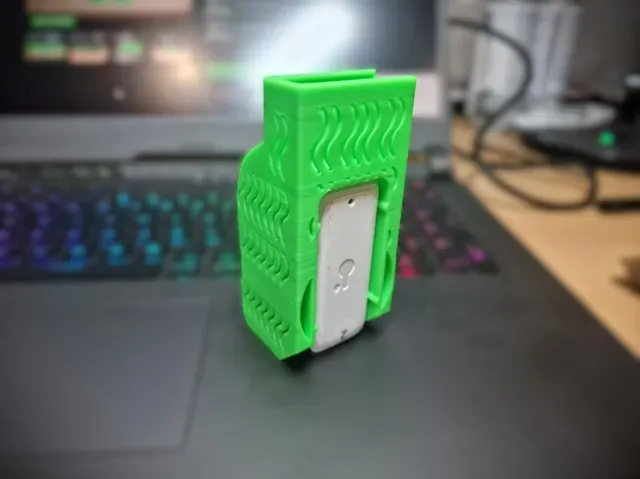

*7/11/25   Added a round/SHELLY BLU adaopted pod for the center by request…

*21/11/25 Added the AQARA only pod to the profile..

*28/11/25 Added the CLEARVIEW pod with acrylic window as a profile..

*25/12/25 Optimized the funnel to flow better and less chance on bouncing ;)

*27/3/26    Added  a pod for the SONOFF SNZB-02P ZIGBEE 3.0 ..
