PC4-M10 PTFE tube fitting for original Prusa MINI spool holder ( reverse bowden )

Platform: MakerWorld
Price: Free
License: CC-BY-NC-SA; Non-commercial use only, with credit; share remixes under the same license.
Formats: STL

21 Likes
30 Downloads
5 Makes
42 Collected
0 Boosts
1 Comments
0 Views

Author:CMR

Published 2024-01-07

Download on

MakerWorld

Description

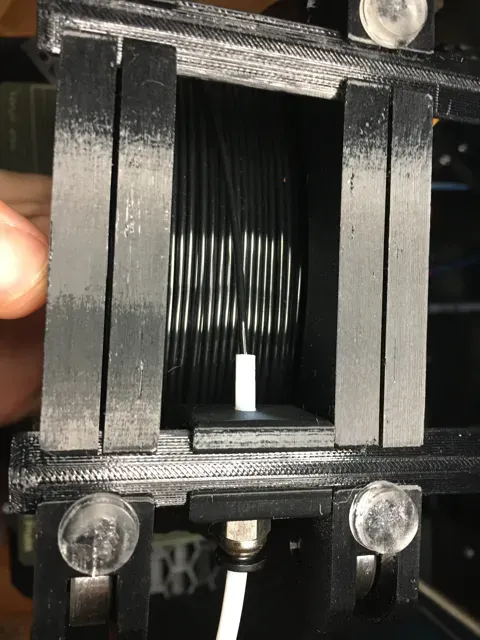

This is an attachment for the original Prusa Mini spool holder which allows adding a PC4 M10 quick release adapter for a common PTFE tube. Primarily I use this for a reverse bowden setup on my MK3.

Printing:

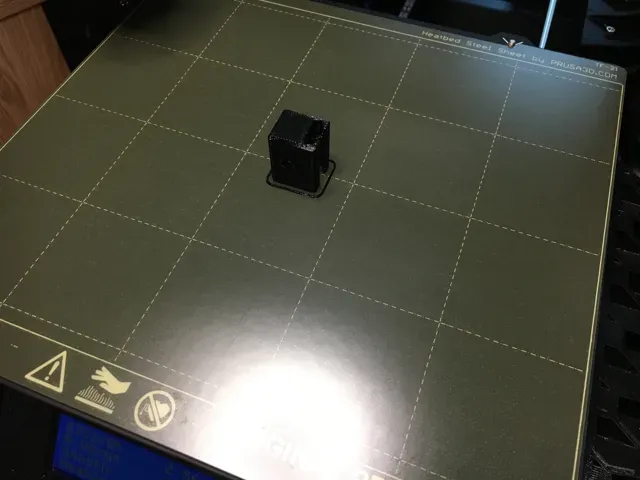

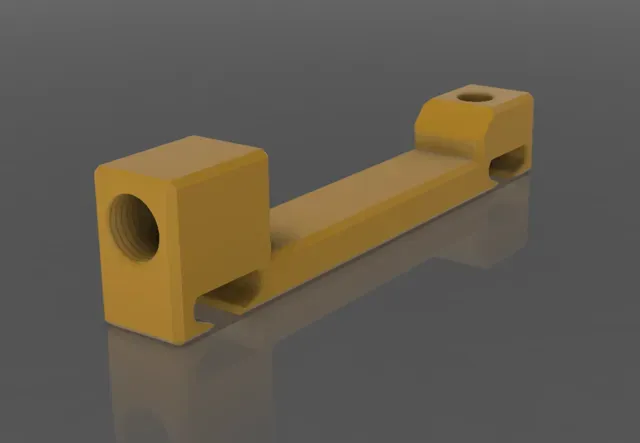

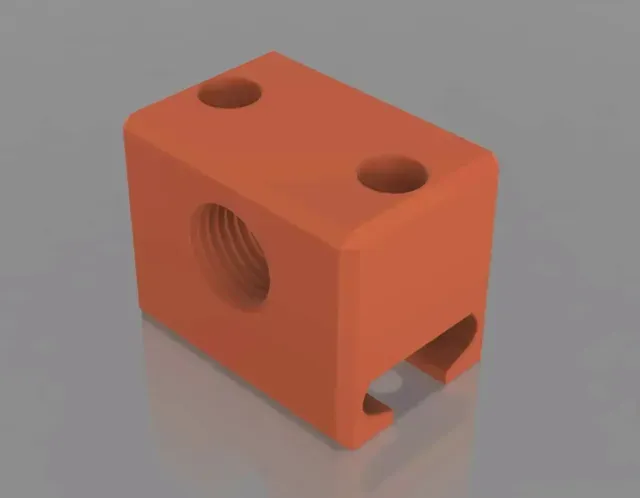

- any solid filament - 0.2mm layer height - 0.4mm nozzle - 15% infill - 2+ perimeters - no support when positioned on the left or right surface Additional parts:

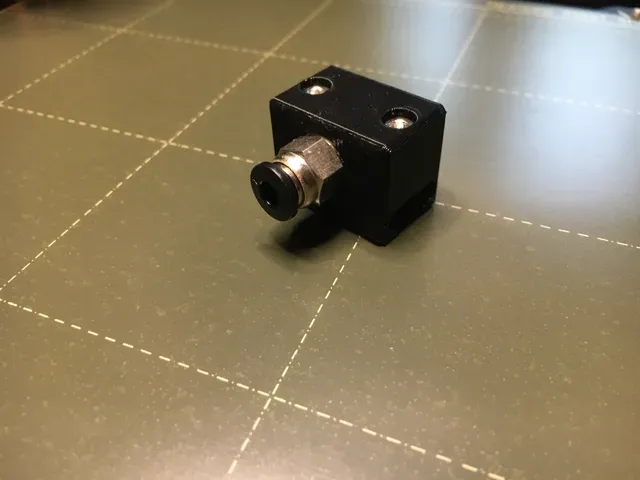

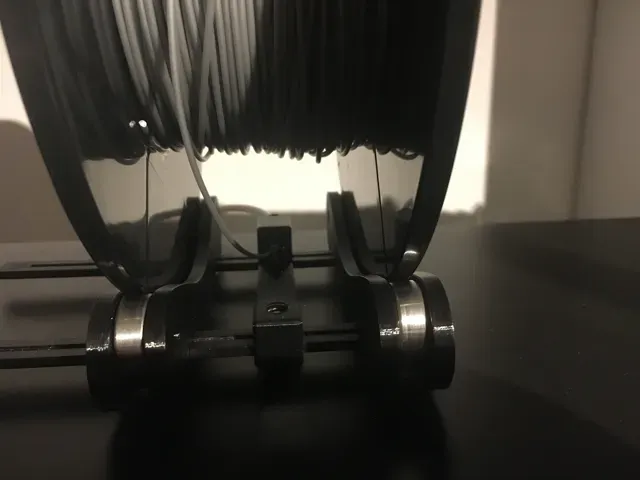

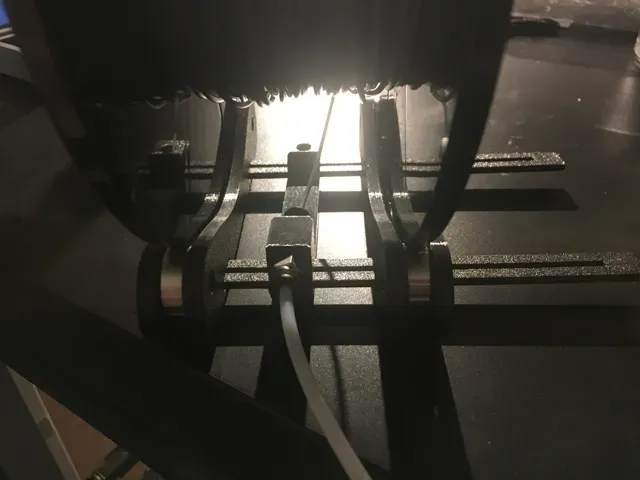

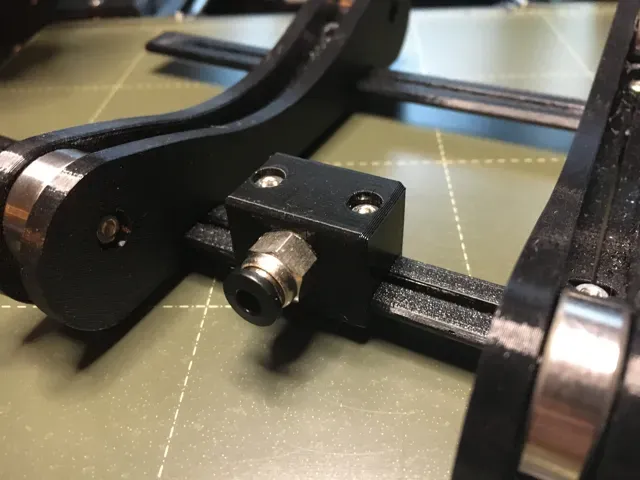

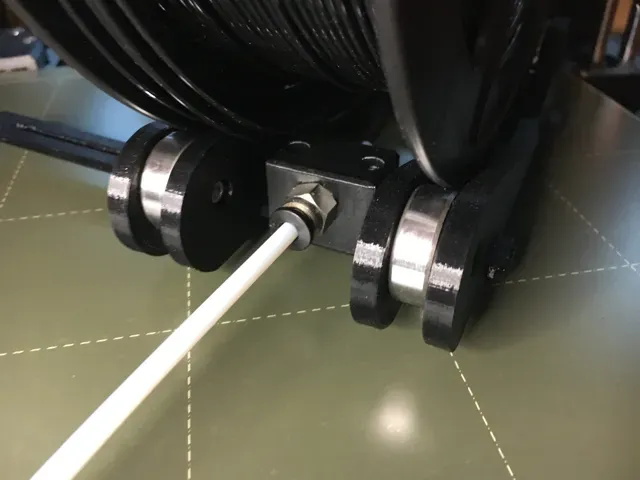

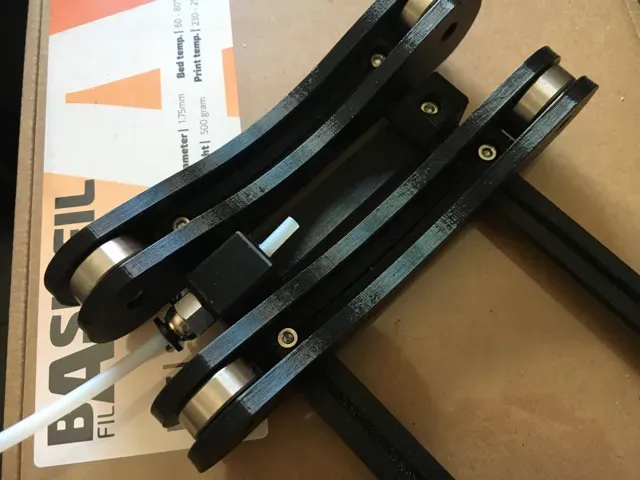

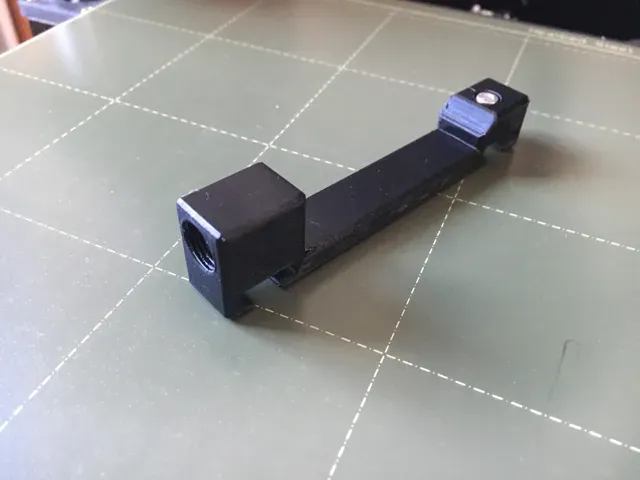

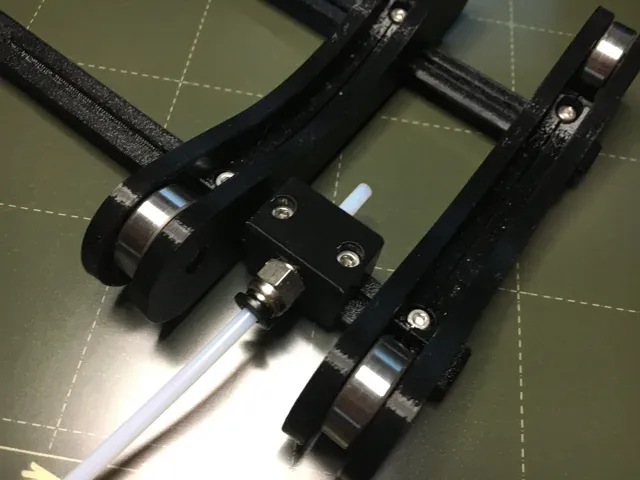

- 2x 10mm M3 screws for the regular version 1x 6-8mm M3 screw for the slim version - 1x PC4 M10 PTFE fitting ( 0.9-1.0mm thread pitch ) Place between the spool holder's bases as shown in the pictures and don't overtighten the screws when you lock its position on the rail!
