Warning - Hot surface - W017 ISO 7010

ISO 7010 - Warning Sign

W0 17 – Hot surface

A while ago I uploaded a complete set of ISO 7010 signs,

but the quality was not good enough if you wanted to scale them up. I took this as an opportunity to revise the signs.

For this upload, I focused on improving the quality of the source data as well as the user-friendliness.

An AMS is mandatory for printing.

You will find the following pictogram templates in the print profile:

- Pictogram only visible on one side - face-up version - face-down version - Pictogram visible on both sides (mirrored) - Pictogram visible on both sides, scaled-up (show-through) - face-up version - face-down version - Pictogram only visible on one side (with frame) - face-up version - face-down version - Pictogram with customizable Text only visible on one side (with frame) - face-up version - face-down version The Cover Pictures show the two sided version scaled to 50%

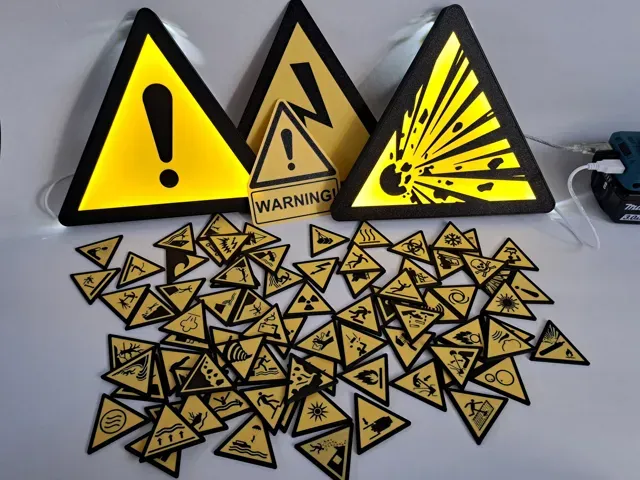

The Lightbox shown in the pictures will be uploaded at a later tome as this is still a work in progress.

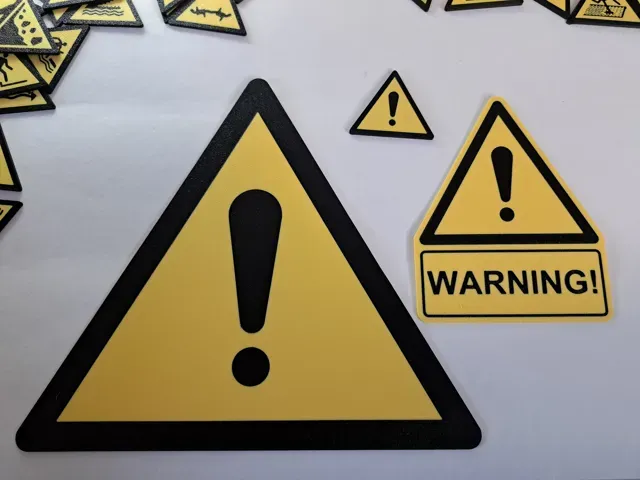

I added Pictures of W001 - General Warning Sign to show the different Versions avaliable.

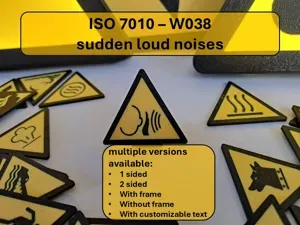

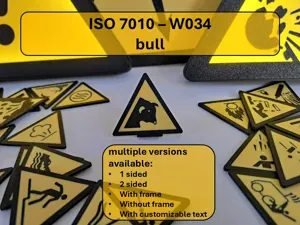

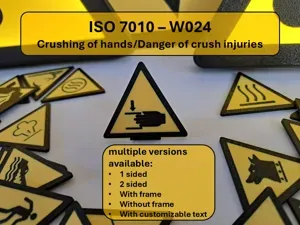

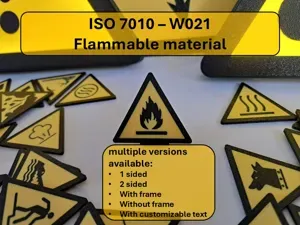

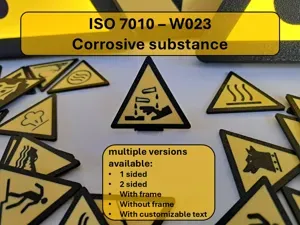

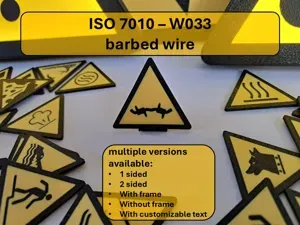

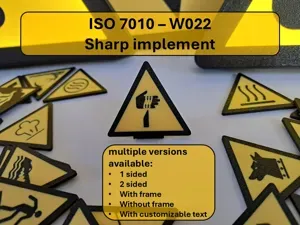

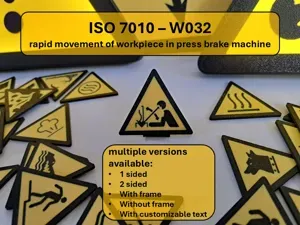

If you are interested in other ISO 7010 warning signs, have a look on this collection:

ISO 7010 Warning Signs for AMS | Collection - MakerWorld
