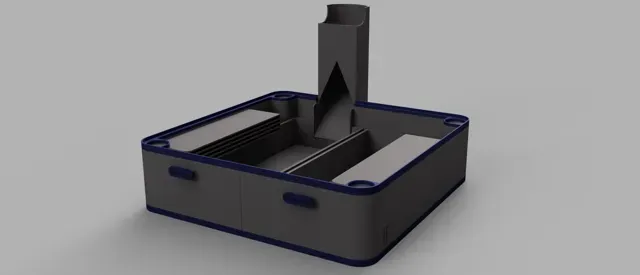

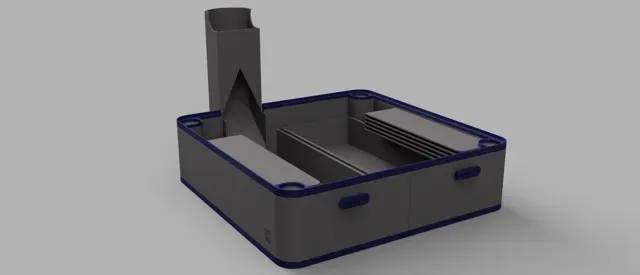

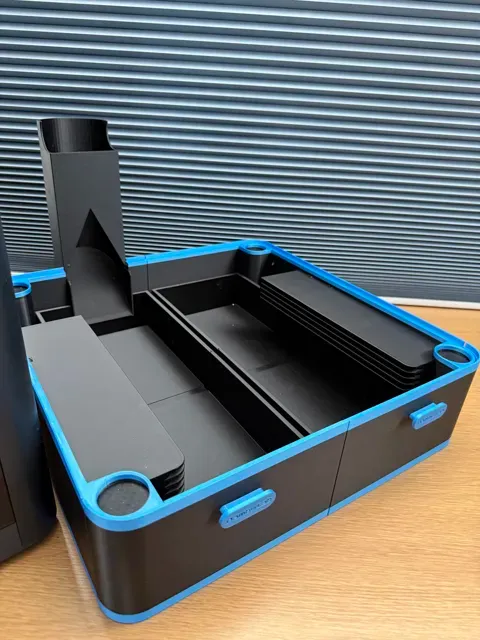

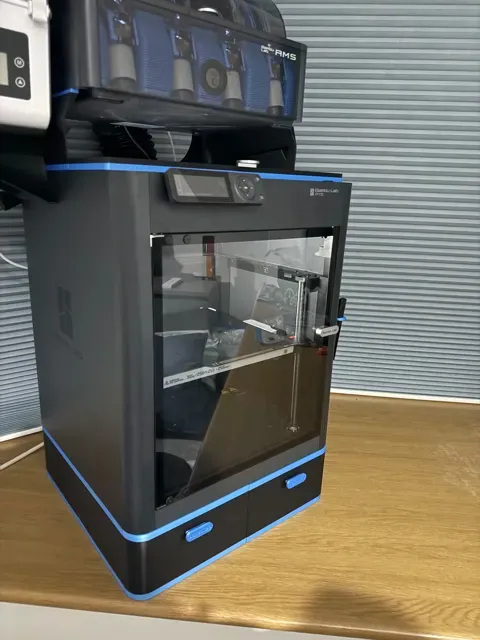

X2D X1 P2S P1S Poop Chute & Under Printer Storage

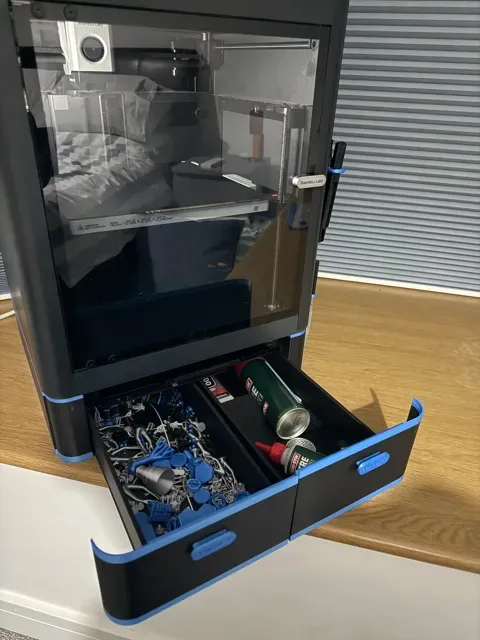

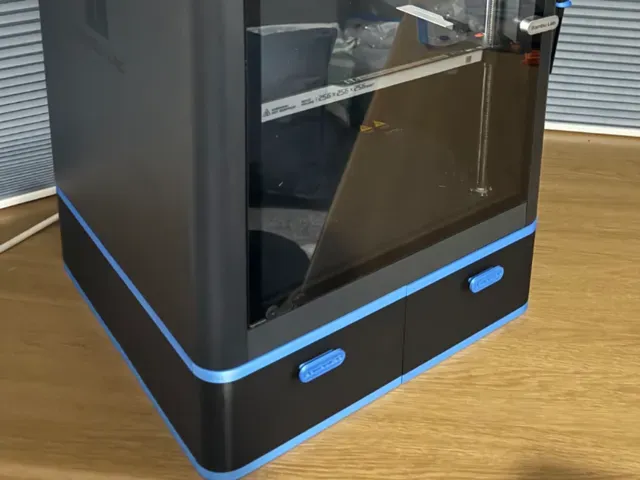

Two drawers (The original profile) 0.20mm layer height.

Supports are minimal on most of the parts but have them set to auto tree for all plates and you’ll be good.

I did find using normal supports on the chute worked a lot better for the removal of them.

This should all be set in the print profile anyway.

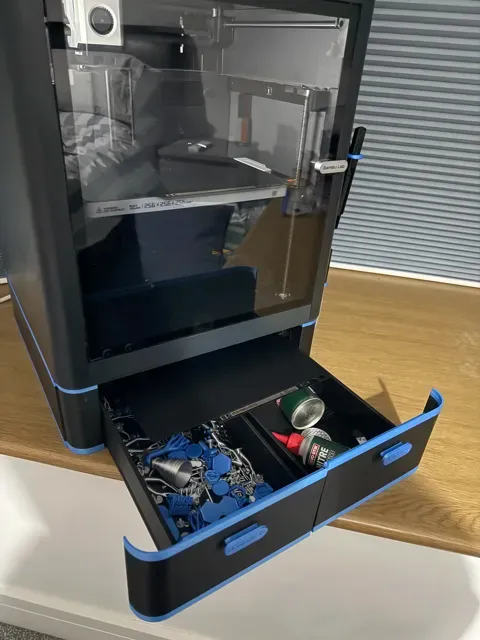

One Big Drawer (requested) This profile has the two drawers combined as one big drawer for extra space for those multicoloured prints and all their extra poops.

The draw fronts will still look like its two drawers but it will open as one.

Still minimal supports required.

Possibly worth glueing the drawer sectioning together for a little bit of extra sturdiness to the draw bottom but will hold together just fine without it.

P2S/ X2D - Feet Inserts Feet inserts to allow for the extra height required for a better fit for the P2S.

Handle’s - With coloured lettering Handle’s with coloured lettering. These were requested but they came out so nice that they are now permanently installed on my own drawers 👌🏼

Deeper Drawers - Use if not printing the build plate rack Heightened drawers to be used to give extra space in the drawers when not using the build plate rack. I'd still suggest using the print profile created by user ‘NightGod’ that replaces with build plate rack with a simple brace instead.

Deeper One Big Drawer - Use if not printing build plate rack Heightened one big drawer to be used to give extra space in the drawers when not using the build plate rack. I'd still suggest using the print profile created by user ‘NightGod’ that replaces with build plate rack with a simple brace instead.

Divided flat poop chute P2S / X2D A divided poop chute so the printer can easily move on the rubber feets during printing. Its designed very flat enabling you to place the printer close to a wall. The ramp of the lower part ends up higher and deeper in the drawer which leads to a better ejection. Compatible with external exhaust kit (left an right version).

Designed to hold on to the back side with 8x1.5mm magnets and/or a screw clip using a original screw above the poop chute.

0.2mm layer, 2 walls, 7% infill I had another plate holder that I preferred to continue using, but figured the side supports were structural was well as functional, so I made a cut down version that adds the needed stiffness and is out of the way of the drawer sides since I plan to use that extra head space for storing taller items.

0.2mm layer, 2 walls, 15% infill

Chute bin with 8x2 magnets Made a magnetic version of the chute bin Fits four 8x2mm magnets

- Printed with supports + top Z distance 0.275

Gridfinity for the 2 drawers version. VERSION 2 of this file!

Now WAY better fit and connections. Less filament used.

This is the gridfinity for the 2 drawers version. printed on 2 plates.

Works great with this poop-bin: https://makerworld.com/en/models/2126960-poop-catcher-bin-for-aj-s-under-printer-drawer

One Big Drawer : Single Centered Handle This is a functional change for the "One Big Drawer" version of the X1, P2S, P1S Poop Chute & Under Printer Storage

While the original big drawer uses two separate 30 mm handles, I found that a single, wider handle provides a much cleaner aesthetic and more ergonomic grip for the larger drawer.

Changes made:

- Extended Width: Handle width increased from 30 mm to 60 mm (center-to-center hole spacing). - Centered Branding: Re-centered the "Bambu Lab" logo to maintain the same look on the wider face. - Dual-Point Mounting: Designed to be placed dead-center on the large drawer face. Recommended Print Settings:

- Filament: PETG (Recommended due to weight of the printer). - Walls: 2 - Infill: 15% - Support: No supports needed if printed face-up or on its side. Other notes:

- This print profile includes the P2S feet inserts - For a more secure hold, apply superglue to the handle holes for a permanent fit Original X1, P2S, P1S Poop Chute & Under Printer Storage credit goes to the AJ for a fantastic design!

Gridfinity baseplates + bin for single drawer This profile includes Gridfinity baseplates (with or without magnets support) and ten different bin sizes for the single drawer.

Poop drawer and separator No real special settings required.

I wanted a separator that would catch the poop in the drawer and also allow me to store a few things in the drawer without them getting mixed together and being all over the place. Just a simple addition to an already great print. :)

.24mm layer height for decent speeds.

socket distributor

P2s chute compatible with exhaust fan kit Quick and dirty fix to make the chute compatible with the official bambu exhaust kit. I installed the fan first and then placed it on the riser. Printed on p2s 0.4 using original designers settings

P1S anti vibration feet support Lowers the feet inserts by 5 mm to eliminate the gap between the printer and the riser while preserving the effectiveness of the anti-vibration feet. Make sure the printer is perfectly centered on the riser so it can vibrate as freely as possible without hitting the riser edges.

Includes optional feet risers that can be printed to raise the printer by 2.5 mm. This creates a small visible gap (see pictures) but ensures the printer can vibrate without any restriction.

Optional plateholder faster print This is an optimised Version of the plateholder which can be installed even after you have completely assembled the riser, and glued the parts together. No reprinting of the entire riser is required to add your plateholder.

Ideal for people like me, who glued the base together, only to find out you had to install the plateholders before assembly….

Also ptimised the part to print about 2 hours faster.

drawer divider easy assembly, just stick it anywhere and make the bow as you like.
